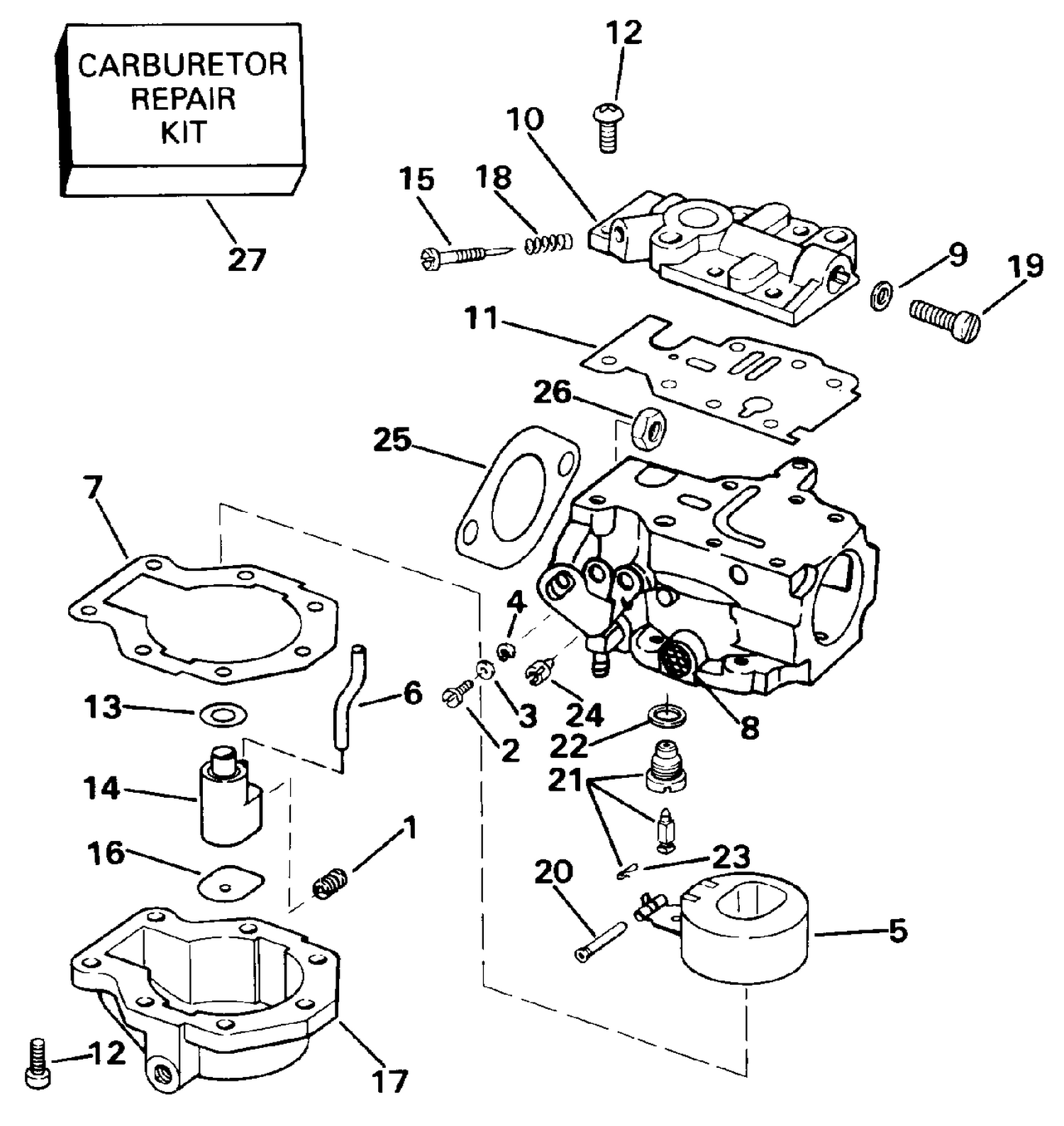

| Ref | Part Number | Description |
|---|
| 1 |
0325827 |
HIGH SPEED ORIFICE, No. 44 |
| 6 |
0336567 |
FLEX TUBE |
| 10 |
0336048 |
COVER, Carb. body |
| 10 |
0337589 |
COVER, Carb. body |
| 11 |
0334043 |
GASKET, Cover |
| 13 |
0338883 |
GASKET, Upper This part replaces 0333347. |
| 14 |
0434398 |
NOZZLE WELL |
| 15 |
0334042 |
NEEDLE VALVE, Slow speed |
| 15 |
0338171 |
NEEDLE VALVE, Slow speed |
| 16 |
0333348 |
GASKET, Cover to housing |
| 17 |
0398068 |
FLOAT CHAMBER This part replaces 0336393. |
| 23 |
0336842 |
CLIP, SPRING |
| 24 |
0313329 |
LOCKWASHER, Carburetor link |
| 25 |
0318932 |
JOINT |
| 26 |
0328742 |
NUT |
| 0434788 |
0436922 |
CARBURETOR ASSY. This part replaces 0434788. |
