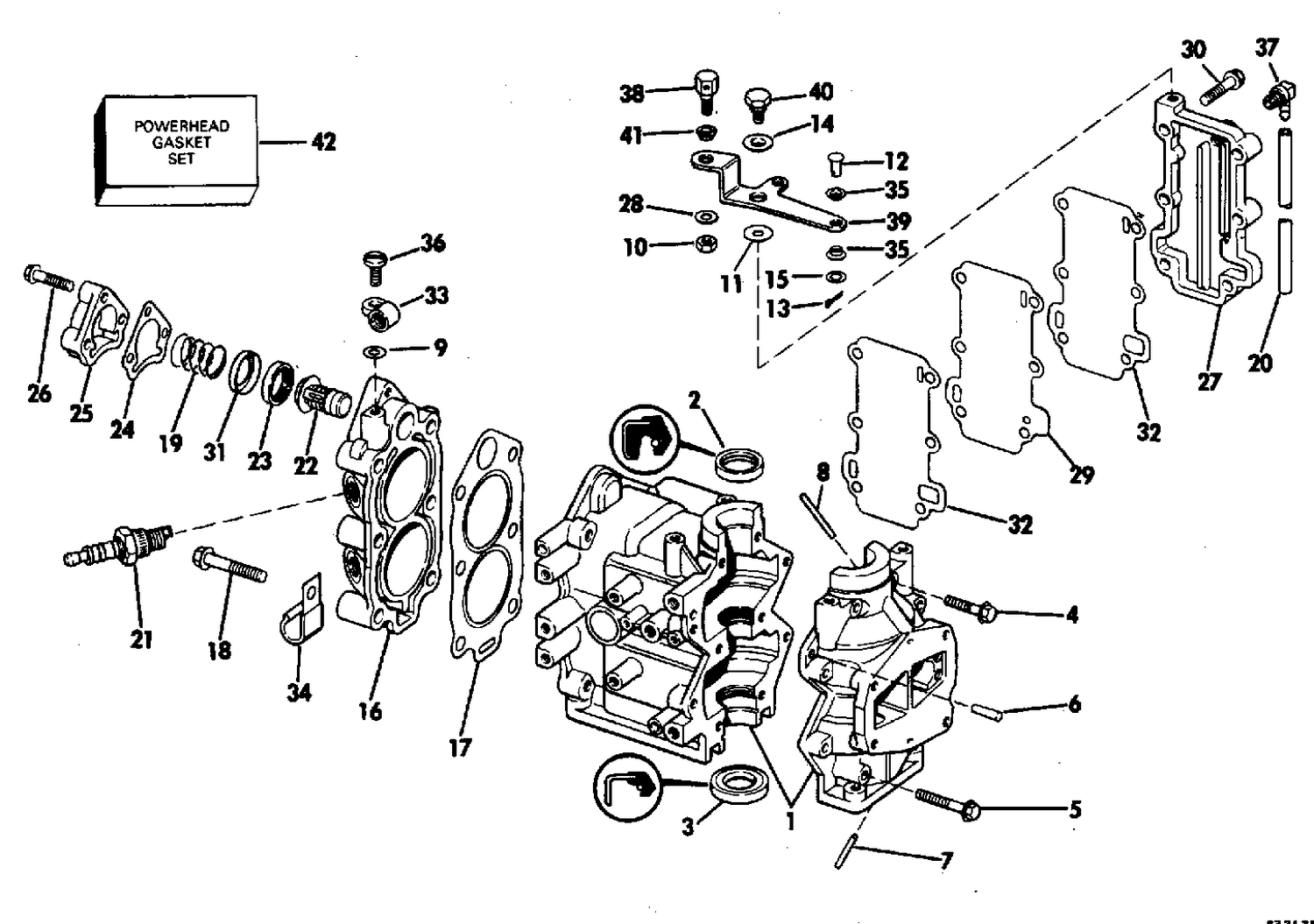

| Ref | Part Number | Description |
|---|
| 1 |
0393168 |
CYLINDER & C'CASE ASSY. |
| 3 |
0329086 |
SEAL, Crank, lower |
| 4 |
0314951 |
SCREEN, Mfld. to c'case |
| 7 |
0328157 |
METERING ROD |
| 8 |
0328156 |
TUBE, Crankcase drain |
| 9 |
0306413 |
WASHER |
| 10 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 12 |
0315962 |
GOUPILLE, tringlerie vers levier |
| 14 |
0325542 |
BUSHING |
| 15 |
0302474 |
WAHSER,Link |
| 16 |
0327444 |
CYLINDEER HEAD |
| 17 |
0325273 |
GASKET, Cylinder head |
| 18 |
0319226 |
SCREW, Cylinder head |
| 19 |
0328051 |
SPRING, Pressure release |
| 20 |
0328388 |
HOSE, Indicator |
| 21 |
0289471 |
SPARK PLUG,Champion L78V |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 23 |
0323582 |
SEAL, Thermostat |
| 24 |
0329076 |
GASKET, Thermostat cover |
| 25 |
0330072 |
CAP, Thermostat This part replaces 0325276. |
| 27 |
0327259 |
EXHAUST COVER, Outer |
| 28 |
0329241 |
RONDELLE This part replaces 0305981. |
| 29 |
0327258 |
EXHAUST COVER, Inner |
| 30 |
0314951 |
SCREEN, Mfld. to c'case |
| 31 |
0324314 |
RETAINER, Thermostat |
| 32 |
0325271 |
GASKET Cover |
| 33 |
0324685 |
CONNECTOR, Cable to control shaft |
| 34 |
0310947 |
CLAMP |
| 35 |
0307841 |
BUSHING, Control lever |
| 36 |
0326618 |
SCREW, Clamp |
| 38 |
0325309 |
PIVOT PIN, Cable to lever |
| 39 |
0325310 |
LEVER, Throttle advance |
| 40 |
0325291 |
SCREW, Lever to cover |
| 41 |
0325298 |
BUSHING, Connector to throttle arm assy. |
