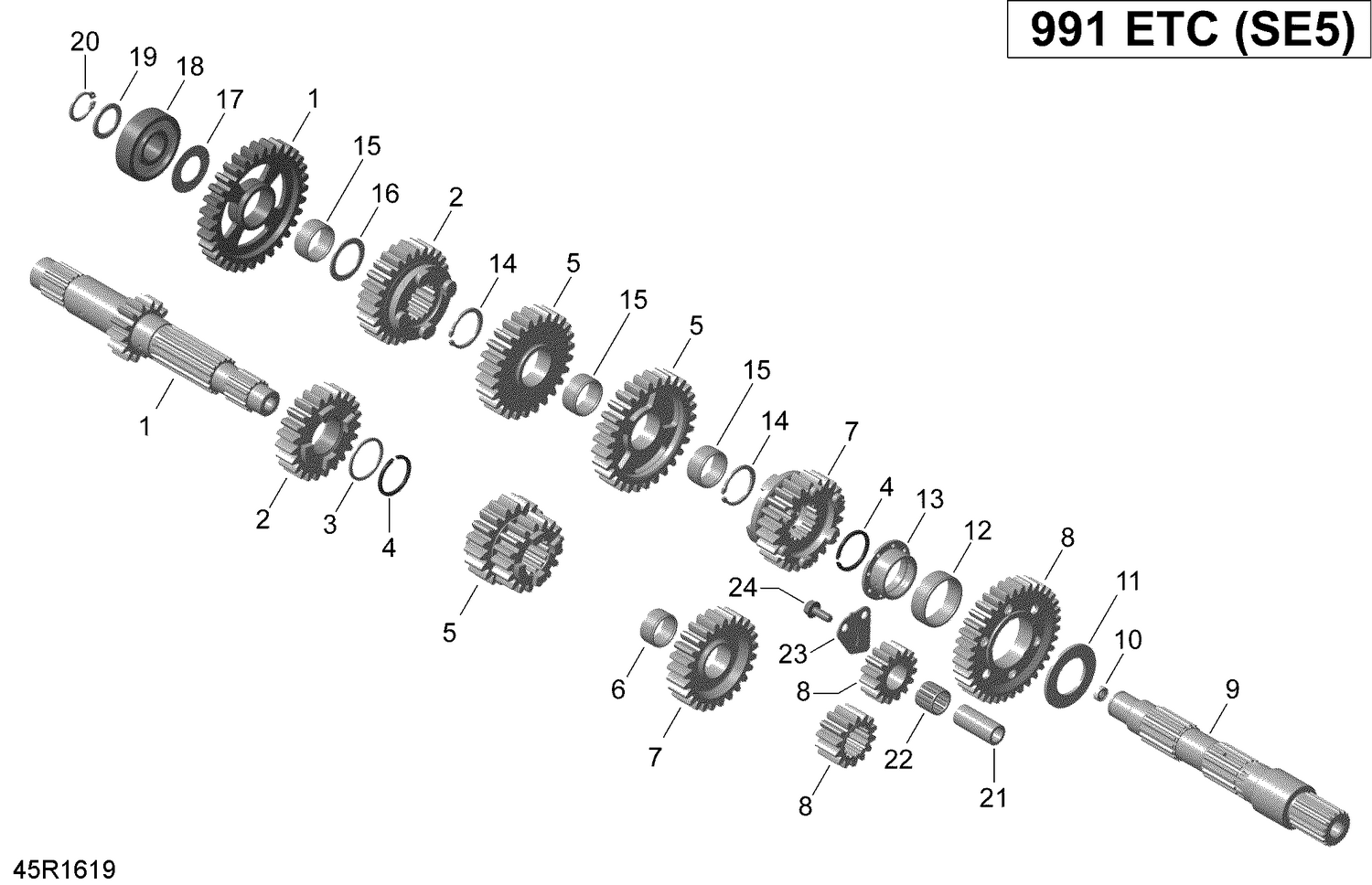

05- Gear Box
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420627122 | Thrust Washer This part replaces 420627120. |
| 4 | 420245817 | Snap Ring - SE5 This part replaces 420245815. |
| 6 | 420232530 | Needle Bearing |
| 10 | 420930500 | Oil Seal |
| 11 | 420626381 | Thrust Ring |
| 12 | 420632197 | Needle Bearing |
| 13 | 420632530 | Bushing |
| 14 | 420845772 | Retaining Ring This part replaces 420845775. |
| 15 | 420632070 | Needle Bearing |
| 16 | 420427106 | Washer |
| 17 | 420827110 | SHIM - Call your local BRP dealership |
| 18 | 420832144 | BALL BEARING - Call your local BRP dealership |
| 19 | 420227442 | Thrust Washer |
| 20 | 420945665 | Retaining Ring |
| 21 | 420229450 | BOLT - Call your local BRP dealership |
| 22 | 420432034 | Needle Cage |
| 23 | 420224740 | LOCKING TIE - Call your local BRP dealership |
