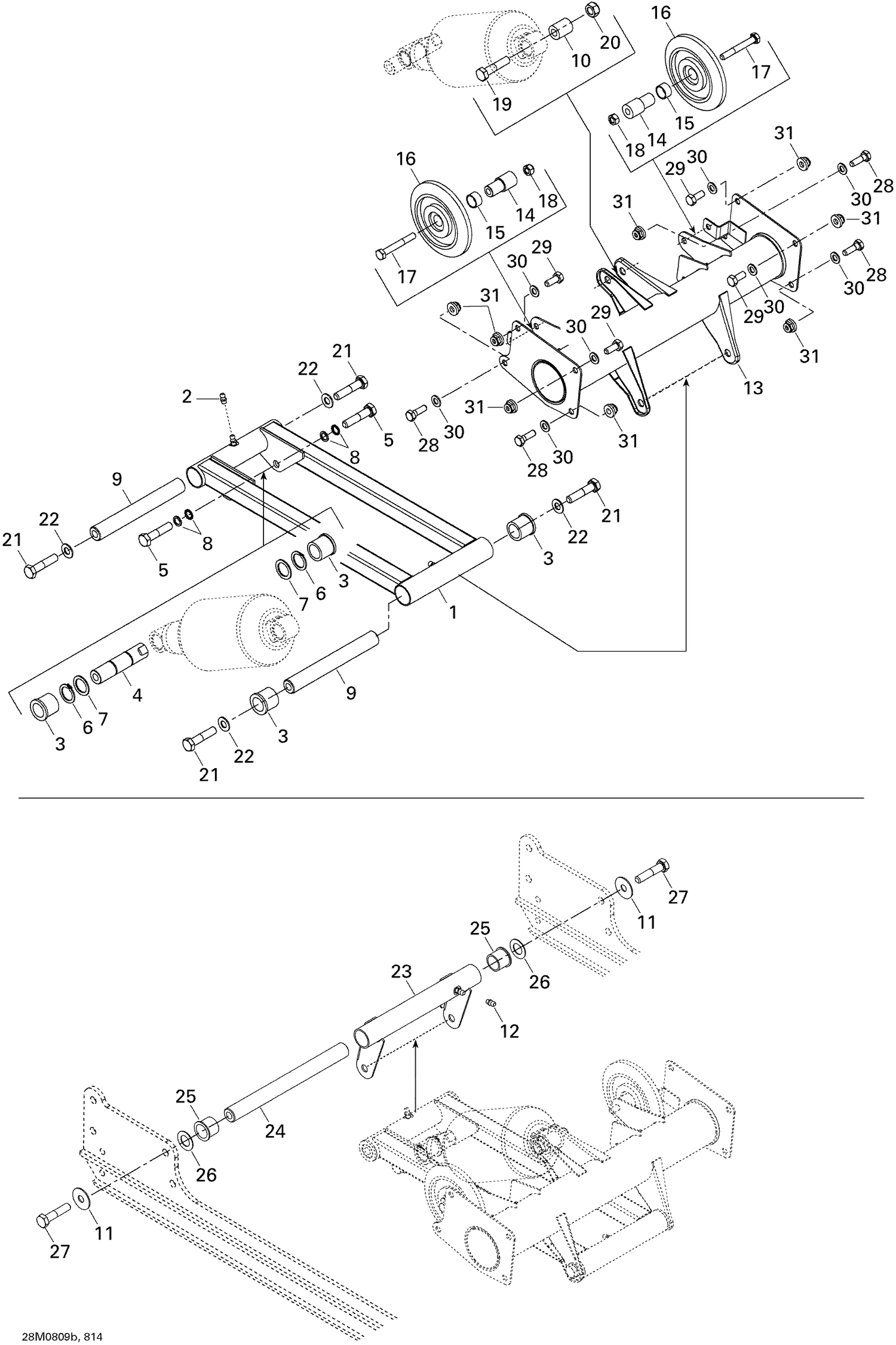

| Ref | Part Number | Description |
|---|
| 1 |
605349313 |
Rear Arm Weld Light |
| 2 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 3 |
31027 |
Cushion This part replaces M31027. |
| 4 |
605451897 |
REARSHOCK SHAFT - Call your local BRP dealership |
| 5 |
207004044 |
Hex. Screw M10 X 40 |
| 6 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces M31007. |
| 7 |
M31091 |
SHIM - Call your local BRP dealership |
| 8 |
20068 |
Lock washer This part replaces M20068. |
| 9 |
5346865 |
SHAFT - Call your local BRP dealership This part replaces M5346865. |
| 10 |
5446652 |
Bushing This part replaces M5446652. |
| 11 |
512056700 |
Lock Washer |
| 12 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 13 |
605255459 |
UPPER REAR ARM - Call your local BRP dealership |
| 14 |
605454570 |
SLEEVE - Call your local BRP dealership |
| 15 |
605454569 |
BUSHING - Call your local BRP dealership |
| 16 |
M46027 |
Idler Wheel |
| 17 |
207086044 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 18 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 19 |
207004544 |
Hex. Screw M10 X 45 |
| 20 |
233601416 |
Elastic Locking Nut M10 |
| 21 |
207004044 |
Hex. Screw M10 X 40 |
| 22 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 23 |
M5345535 |
REAR ARM - Call your local BRP dealership |
| 24 |
M5346900 |
SHAFT - Call your local BRP dealership |
| 25 |
31024 |
Cushion This part replaces M31024. |
| 26 |
20116 |
Washer This part replaces M20116. |
| 27 |
207004544 |
Hex. Screw M10 X 45 |
| 28 |
207182544 |
Hex. Screw M8 X 25 |
| 29 |
207182044 |
Hex. Screw M8 X 20 |
| 30 |
503191564 |
WASHER - Call your local BRP dealership |
