Parts Catalog

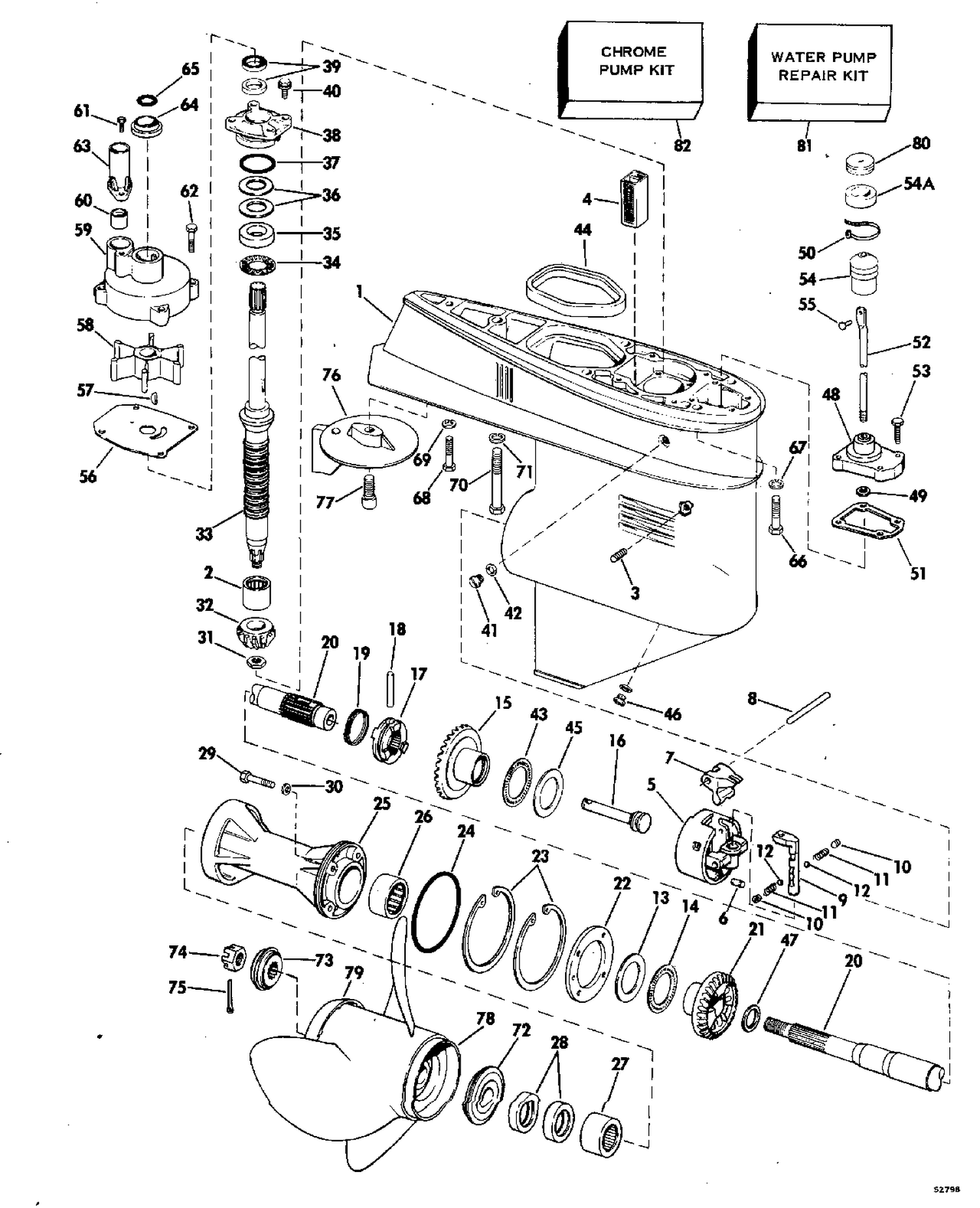

GEARCASE FOR MODELS 70ES75E,70ESL75E

Parts (46)

Ref	Part Number	Description
1	0393752	GEARCASE & BEARING ASSY. This part replaces 0385560.
5	0387152	BEARING HOUSING ASSY
7	0317273	LEVER, Shift
9	0326374	DETENT, Shifter This part replaces 0318532.
10	0317276	DETENT, SCREW
16	0320709	SHAFT, Shift dog
20	0386282	PROPELLAR SHAFT ASSY.
30	0317178	O RING
33	0385092	DRIVESHAFT ASSY, Std This part replaces 0386121.
33	0386122	DRIVENSHAFT ASSY.,Long
36	0317231	SHIM, . 002"
37	0313754	O RING
40	0319545	VIS, supports de montage supérieurs vers support de direction
45	0317165	THRUST WASHER, Fwd
48	0385756	COVER ASSEMBLY
50	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
52	0320127	SHIFT ROD, Standard
52	0320128	SHIFT ROD
53	0307151	SCREW
55	0317385	PIN, Shift lockout
58	0382547	IMPELLER ASSEMBLY
59	0432955	WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0319277.
61	0319292	SCREW, Clamp
67	0307708	RONDELLE GROWER
68	0306503	SCREW, Short
70	0313697	SCR,Grc to hsg.long
71	0306314	L'WASHER,Scr,long
76	0338742	COMPENSATEUR DE DÉRIVE This part replaces 0316981.
77	0313715	SCREW, Cap, hex hd, 7/16-14 x 1
78	0382761	PROPELLER ,14 x 11
78	0382765	PROPELLER 13 X 19
78	0382766	PROP. 12-3/4 X 21 (STD)
78	0383160	PROPELLER 14 X 19
78	0384136	PROPELLER 12-3/4 X 23
78	0384139	PROP., 13 - 3/8 x 17 - SST
78	0384142	PROP., 13 x 19 - SST
78	0384703	PROP, 12-3/4 x 23 sst cupped This part replaces 0384138.
78	0389512	PRO, 12-3/4 x 21 sst cupped This part replaces 0384141.
78	0765181	PROPELLER This part replaces 0382762.
78	0765182	PROPELLER - W Models This part replaces 0382763.
78	0765183	PROPELLER, WDEL Models This part replaces 0382764.
79	0314188	CONVERGING RING
80	0321452	GROMMET This part replaces 0318249.
81	0386533	WATER PUMP REPAIR KIT
0387194	0387194	GEARCASE ASSY., Long
0387218	0387218	GEARCASE ASSY., Std.
