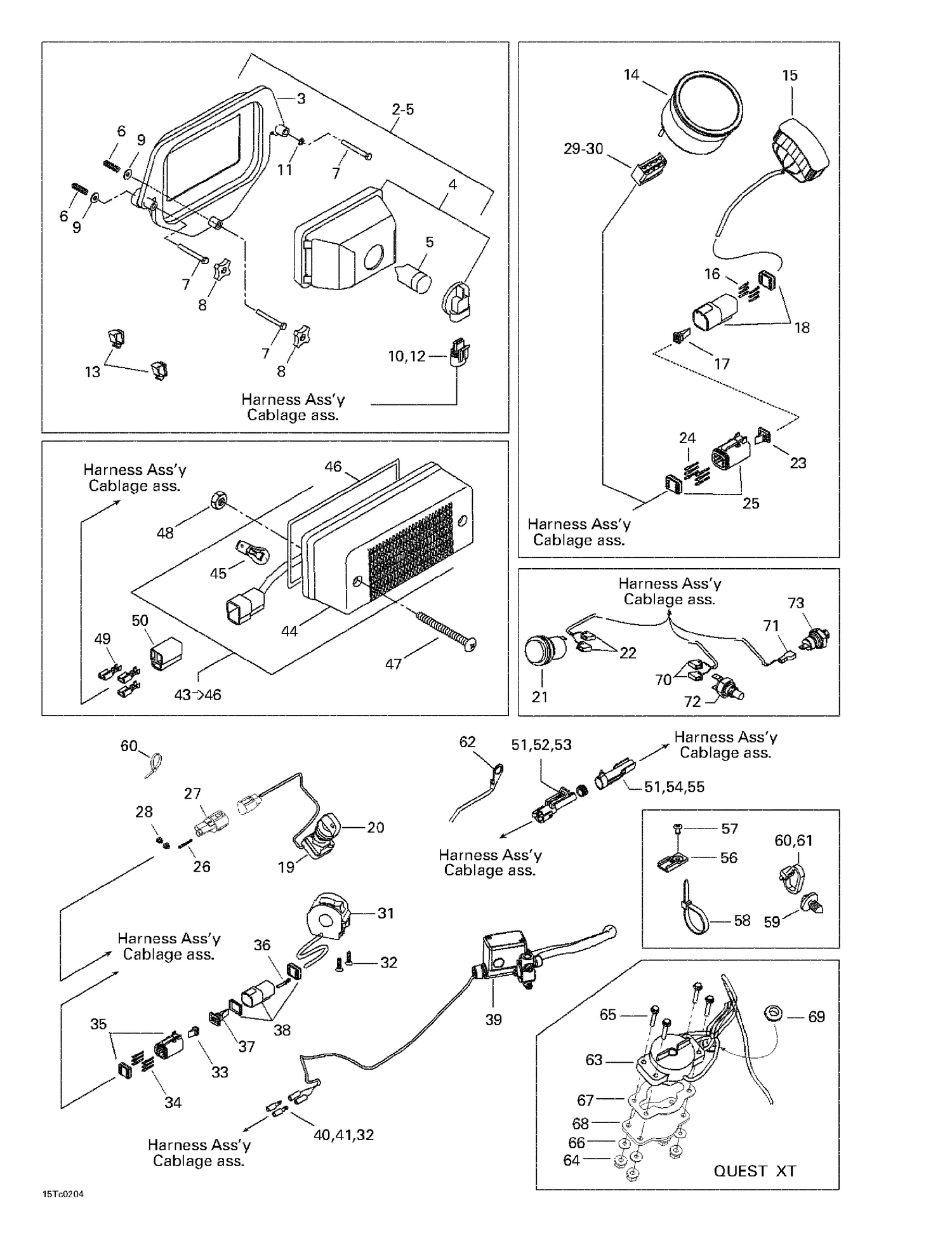

| Ref | Part Number | Description |
|---|
| 1 |
710000145 |
Harness Ass'y (Not Shown) |
| 3 |
705000283 |
LAMP SUPPORT - Call your local BRP dealership |
| 4 |
705000284 |
LAMP HOUSING - Call your local BRP dealership |
| 5 |
710000176 |
BULB - Call your local BRP dealership |
| 6 |
517168600 |
Spring |
| 7 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 8 |
572106600 |
Handle |
| 9 |
234040600 |
Flat Washer 4 mm |
| 10 |
278001114 |
Female Terminal |
| 11 |
234042600 |
Flat Washer 4 mm, Stainless |
| 12 |
278001467 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 13 |
414227300 |
Clip |
| 15 |
710000310 |
RH Warning Lamp |
| 16 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 17 |
409014600 |
Male Lock, 6 Circuits |
| 18 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 19 |
710000192 |
Ignition Switch Ass'y |
| 20 |
710000101 |
BLANK KEY (B TYPE) - Call your local BRP dealership |
| 20 |
710000137 |
BLANK KEY (A TYPE) - Call your local BRP dealership |
| 21 |
861507200 |
Outlet Power Kit, 12 Volts This part replaces 710000024. |
| 22 |
710000038 |
Female Terminal |
| 23 |
409014900 |
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 24 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 25 |
409015400 |
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 26 |
409011300 |
Male Terminal |
| 27 |
710000219 |
HOUSING-TAB - Call your local BRP dealership |
| 28 |
409012300 |
Seal |
| 29 |
710000221 |
Female Terminal |
| 30 |
710000035 |
Female Housing (8 Circuits) |
| 31 |
710000196 |
Multi-function Switch |
| 32 |
205453046 |
SCREW M5 X 30 - Call your local BRP dealership |
| 33 |
409014900 |
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 34 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 35 |
409015400 |
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 36 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 37 |
409014600 |
Male Lock, 6 Circuits |
| 38 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 39 |
705600120 |
FRONT MASTER CYLINDER - Call your local BRP dealership |
| 40 |
278001007 |
Insulated Sheath |
| 41 |
278000770 |
Insulated Sheath |
| 42 |
710000082 |
Female Terminal |
| 44 |
710000055 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 45 |
520000758 |
Bulb This part replaces 410504100. |
| 46 |
710000129 |
GASKET - Call your local BRP dealership |
| 47 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 48 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 49 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 50 |
409204300 |
Female Housing |
| 51 |
710000048 |
Wire Seal |
| 52 |
409004300 |
Male Terminal |
| 53 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 54 |
409004300 |
Male Terminal |
| 55 |
278000161 |
Female Housing, 1 Circuit |
| 56 |
270000141 |
Clip |
| 57 |
390402400 |
Pop Rivet 3/16" |
| 58 |
293750008 |
Tie Wrap 368 mm |
| 59 |
293730040 |
Mount Dart This part replaces 293730018. |
| 60 |
293750002 |
Tie Wrap 142 mm |
| 61 |
414115200 |
Tie-Rap 180 mm |
| 62 |
278001392 |
Open Barrel Terminal |
| 70 |
409010300 |
Female Terminal |
| 71 |
710000255 |
Female Terminal |
| 72 |
420897938 |
Temperature Switch This part replaces 711897937. |
