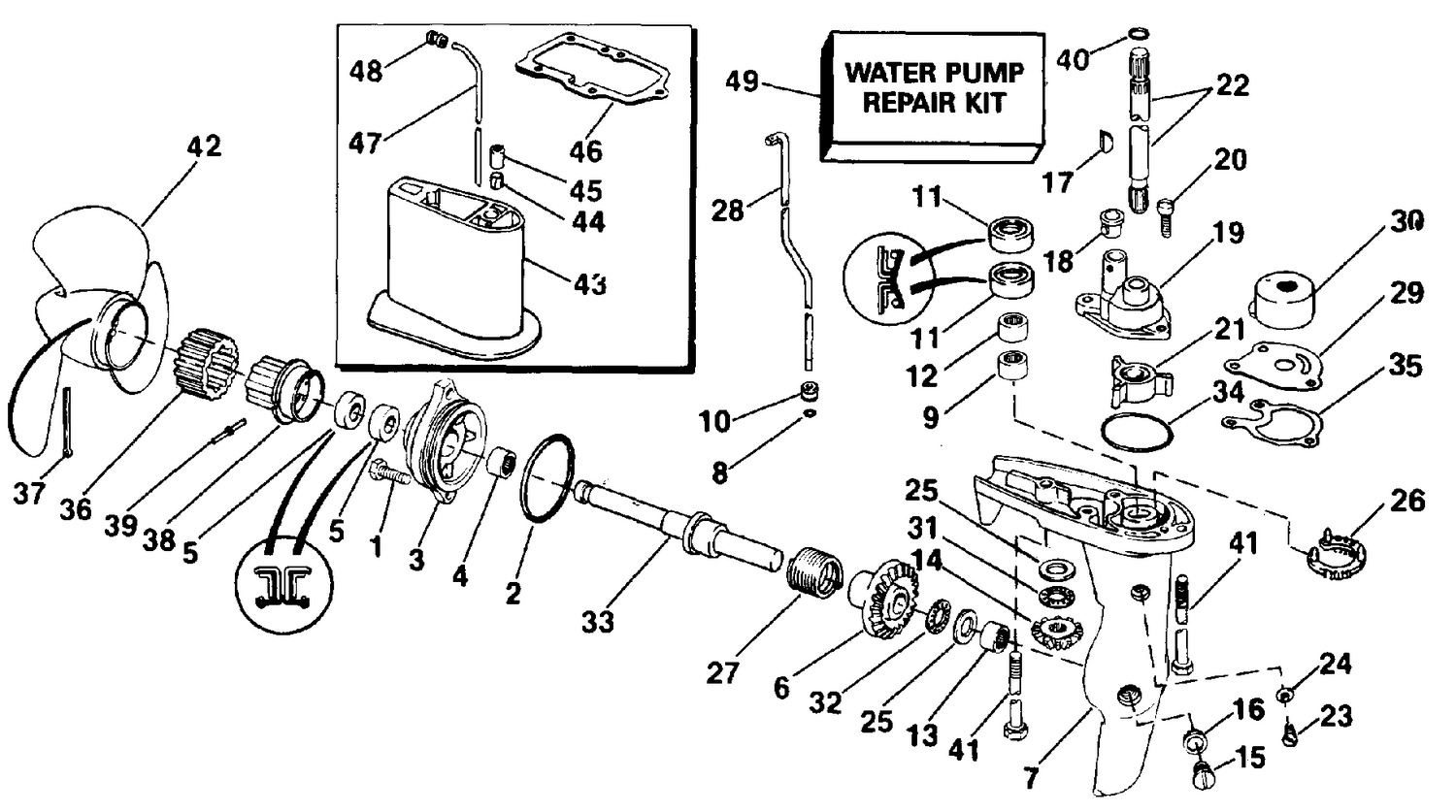

| Ref | Part Number | Description |
|---|
| 21 |
0396852 |
IMPELLER ASSEMBLY |
| 22 |
0391594 |
DRIVESHAFT ASSY., Std |
| 22 |
0391595 |
DRIVESHAFT ASSY., Long |
| 24 |
0333815 |
O-RING, Vent screw |
| 33 |
0398315 |
PROPELLER SHAFT ASSY. |
| 36 |
0310331 |
RING, Clutch |
| 37 |
0313693 |
COTTER PIN |
| 38 |
0398316 |
CLUTCH HUB, Propeller |
| 39 |
0333513 |
DRIVE IN, Propeller |
| 42 |
0318487 |
PROPELLER This part replaces 0319774. |
| 46 |
0327169 |
GASKET, Cyl. & c'case to exh. hsg. |
| 48 |
0317462 |
GROMMET, Water tube |
| 49 |
0431785 |
WATER PUMP REPAIR KIT This part replaces 0431784. |
| 0391736 |
0391736 |
EXTENSION KIT - 5 in |
| 0432499 |
0432499 |
GEARCASE ASSEMBLY |
| 0432500 |
0432500 |
GEARCASE ASSEMBLY |
