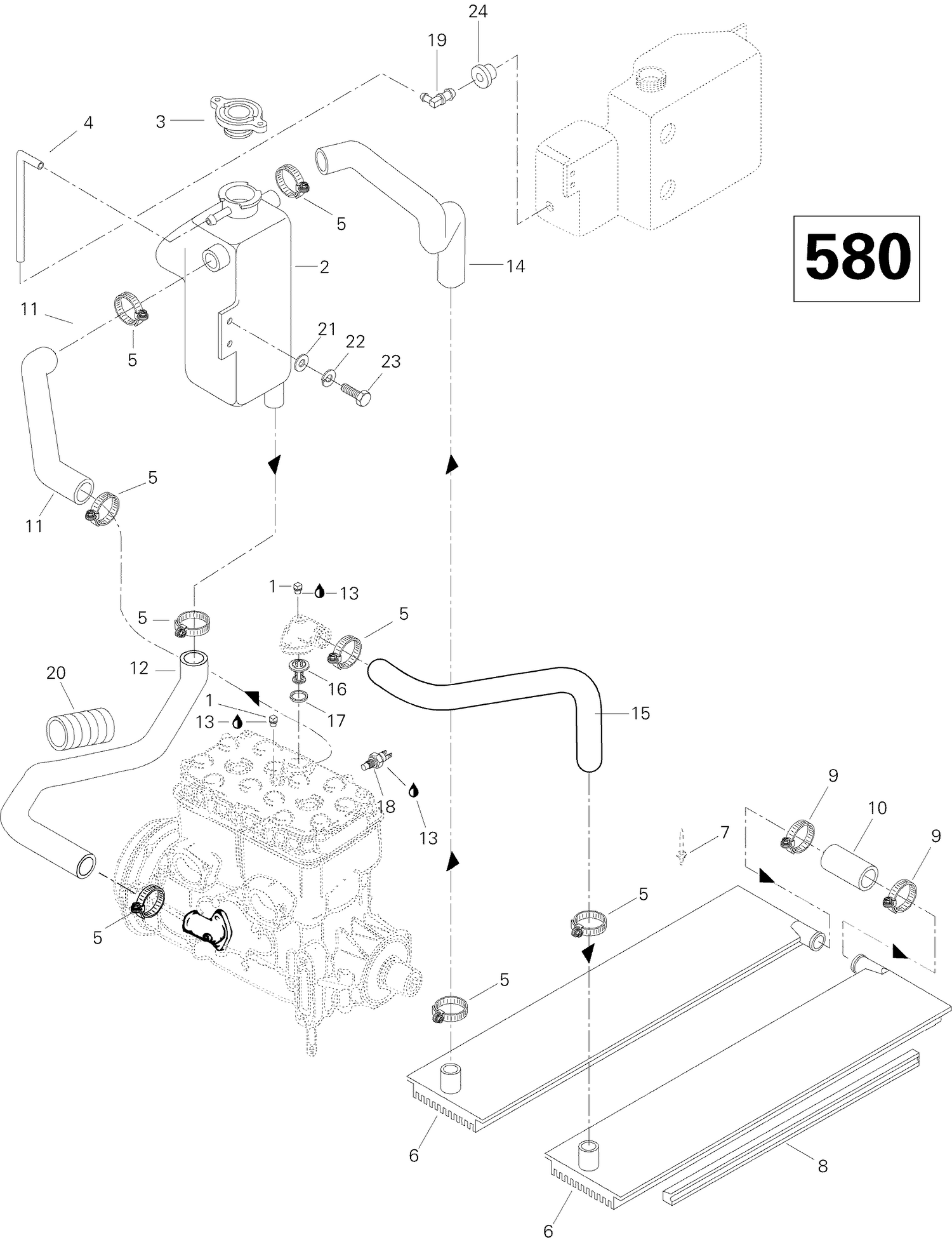

01- Cooling System (580)
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414184400 | Plug |
| 2 | 572055200 | Coolant Tank |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 6 | 517280600 | RH Radiator |
| 6 | 517280601 | LH Radiator |
| 7 | Not | Available As Spare Part - Rivet |
| 8 | 517258800 | Radiator Protector |
| 9 | 408803400 | Clamp Tridon |
| 10 | 414795800 | Radiator Hose |
| 11 | 414930700 | Engine Outlet Hose |
| 12 | 414795300 | Engine Inlet Hose |
| 13 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 14 | 414795400 | Radiator Outlet Hose |
| 15 | 414930600 | Radiator Inlet Hose |
| 16 | 420922519 | Thermostat This part replaces 414834100. |
| 17 | 420931270 | SEALING RING - Call your local BRP dealership |
| 18 | 414728700 | Temperature Sensor |
| 19 | 414580600 | Elbow Male Connector |
| 20 | 414991800 | TUBING - Call your local BRP dealership |
| 21 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 22 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 23 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
