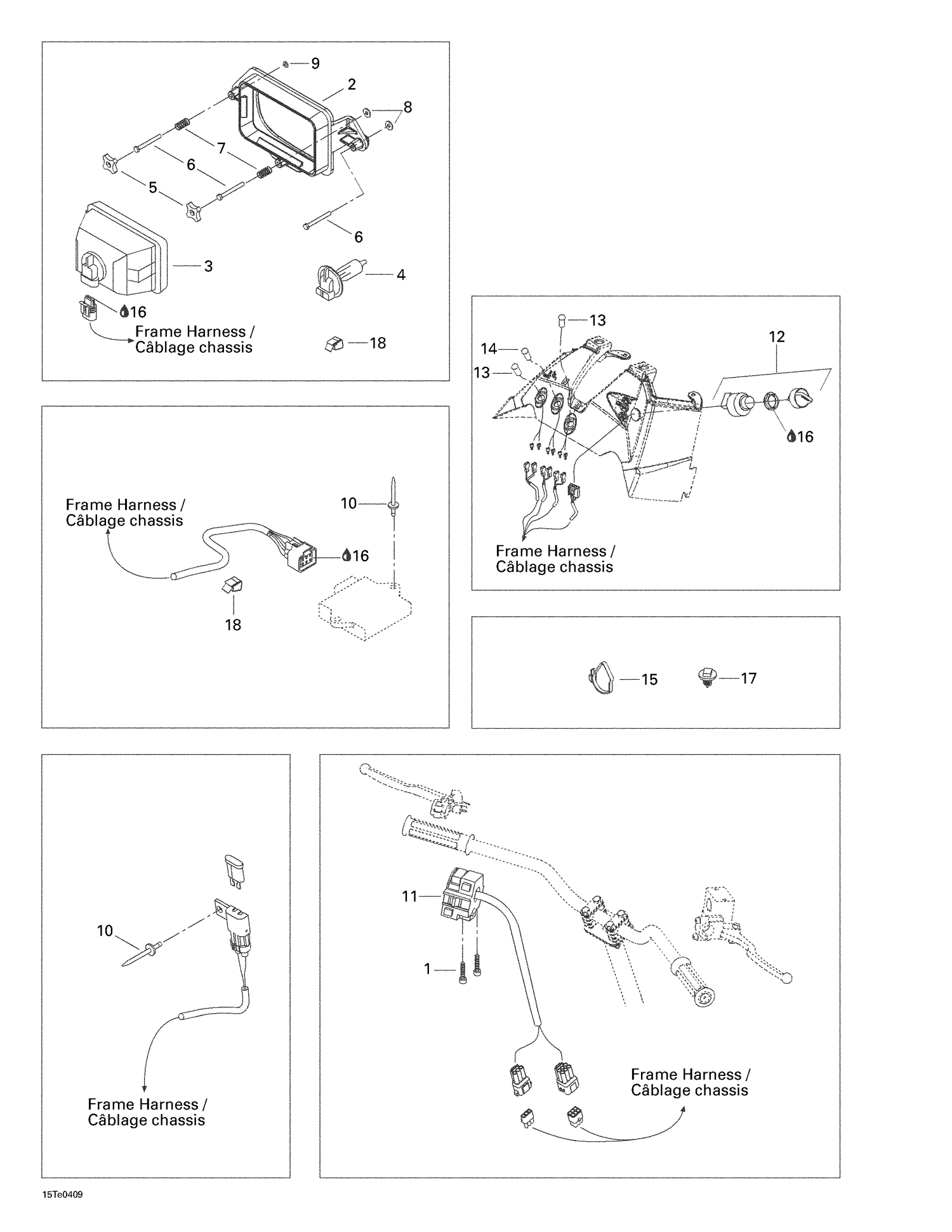

| Ref | Part Number | Description |
|---|
| 1 |
205453546 |
SOCKET SCREW M5 X 35 - Call your local BRP dealership |
| 2 |
710000236 |
RH Headlight Support |
| 3 |
705000284 |
LAMP HOUSING - Call your local BRP dealership |
| 4 |
710000176 |
BULB - Call your local BRP dealership |
| 5 |
572106600 |
Handle |
| 6 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 7 |
710000285 |
SPRING - Call your local BRP dealership |
| 8 |
234042600 |
Flat Washer 4 mm, Stainless |
| 9 |
234040600 |
Flat Washer 4 mm |
| 10 |
390406500 |
Pop Rivet 3/16" |
| 11 |
710000359 |
Handle |
| 12 |
710007867 |
Switch_Ignition This part replaces 710000238. |
| 12 |
Not |
Available As Spare Part - Blank Key |
| 13 |
710000239 |
PILOT LAMP - Call your local BRP dealership |
| 14 |
710000240 |
PILOT LAMP, GREEN - Call your local BRP dealership |
| 15 |
414115200 |
Tie-Rap 180 mm |
| 16 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
293730040 |
Mount Dart This part replaces 293730018. |
| 710000277 |
LH |
HEADLIGHT SUPPORT - Call your local BRP dealership 710000277 |
| 710000277 |
Support |
De Phare GA - Appelez votre concessionnaire BRP local 710000277 |
