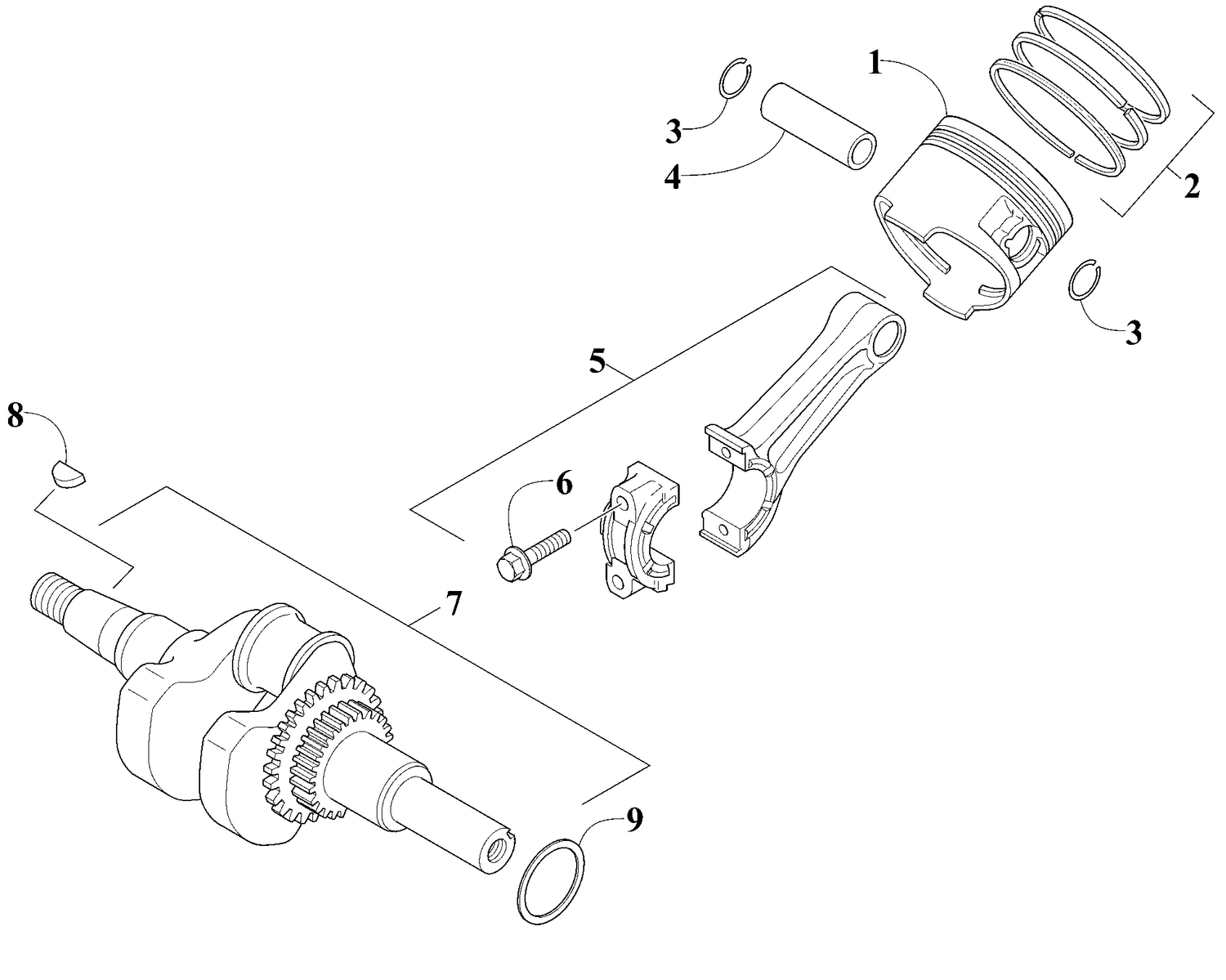

Engine - Piston and Crankshaft
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3020-013 | PISTON - Call your local BRP dealership |
| 1 | 3020-015 | Piston Oversized (0.25) Optional |
| 1 | 3020-016 | Piston Oversized (0.50) Optional |
| 2 | 3020-010 | Ring Piston Set |
| 2 | 3020-011 | Ring,Piston Oversized (0.25) Optional |
| 2 | 3020-012 | Ring,Piston Oversized (0.50) Optional |
| 3 | 3020-115 | Piston Circlip |
| 4 | 3020-014 | Piston Pin |
| 5 | 3021-720 | Connecting Rod Ass'y |
| 6 | 3020-032 | Cap Screw |
| 7 | 3020-029 | Crankshaft Ass'y |
| 8 | 3020-098 | Woodruff Key |
