Parts Catalog

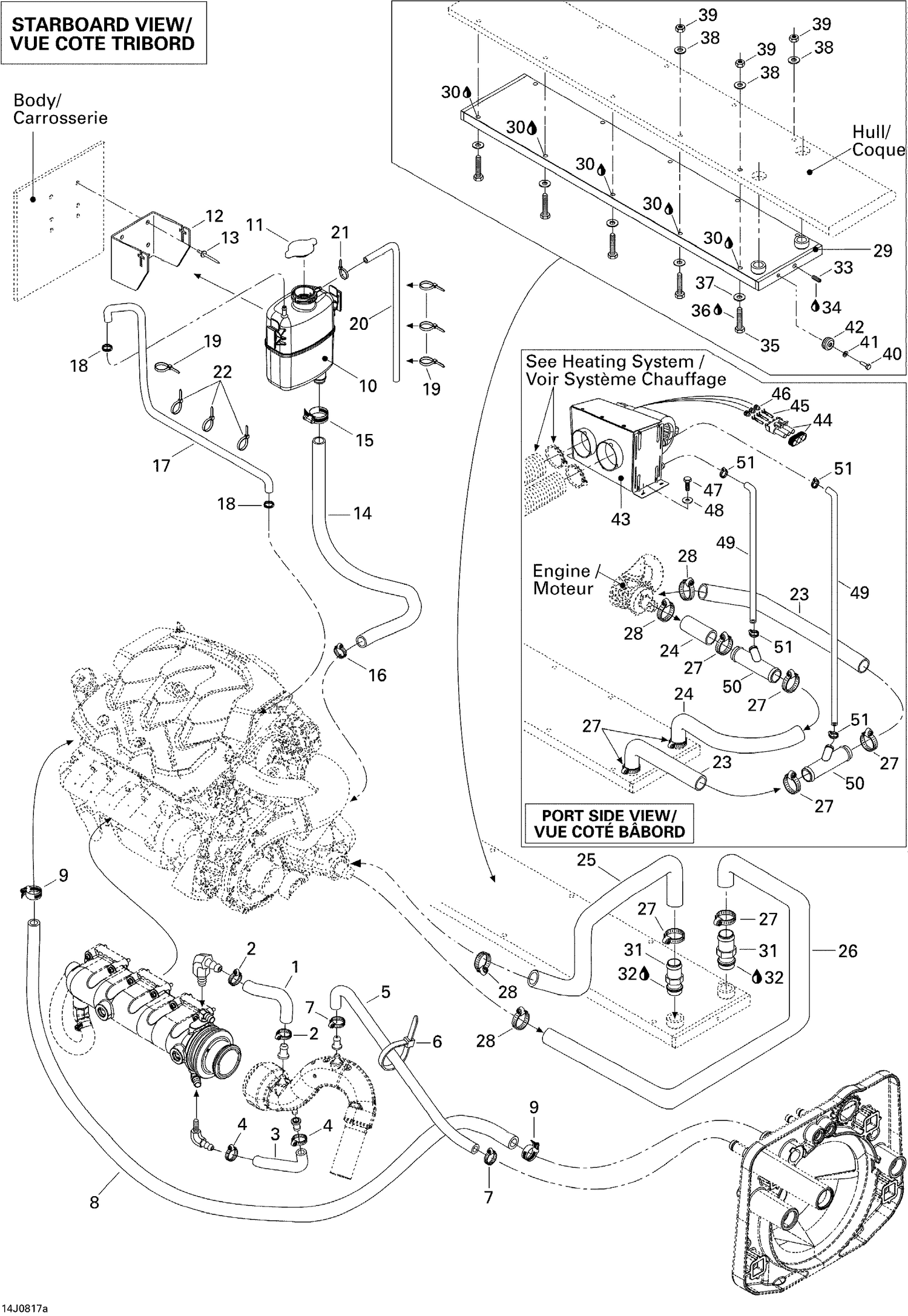

01- Cooling System Edition 1

Parts (44)

Ref	Part Number	Description
1	276000155	Formed Hose
2	293650172	Tridon Gear Clamp
3	276000104	Lower Formed Hose
4	293650172	Tridon Gear Clamp
5	219704394	Was 276000001 Hose 12.5 mm
6	293750008	Tie Wrap 368 mm
7	293650172	Tridon Gear Clamp
8	219704361	Hose 19.0Mm. 2000Mm Long
9	293650051	Tridon Gear Clamp
10	276000086	Coolant Tank
11	276000100	Pressure Cap
12	204300213	COOLANT TANK BRACKET - Call your local BRP dealership
13	204000081	Pop Rivet 3/16"
14	219704361	Hose 19.0Mm. 2000Mm Long
15	293650051	Tridon Gear Clamp
16	293650019	Tridon Gear Clamp
17	219704357	Was 275500549 Hose 1/4"
18	293650025	Oetiker Gear Clamp
20	219704410	Polyurethane Hose 10000Mm Long
21	293750001	Tie Wrap 94 mm
22	293750002	Tie Wrap 142 mm
27	293650045	Tridon Gear Clamp
28	293650045	Tridon Gear Clamp
29	204300235	HEAT EXCHANGER - Call your local BRP dealership
30	219701421	Instant Gasket This part replaces 293800088.
31	204300133	Hose Fitting - Call your local BRP dealership
33	211500001	Pipe Plug Socket Head 1/8-27 Npt
34	219704454	Was 293800013 Loctite 56765
35	205405060	SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
36	293800060	Loctite 243, 10 ml
37	234000600	Flat Washer 10 mm, Stainless
38	234002600	Flat Washer 10 mm, Stainless
39	232001600	HEX. NUT M10 - Call your local BRP dealership
40	207362060	Hex. Screw M6 X 20, Scotch Grip
41	234061600	Stainless Flat Washer M6
42	271001813	Anode Zinc This part replaces 271001487.
43	204300198	HEATER UNIT - Call your local BRP dealership
44	278000273	Male Housing, 3 Circuits
45	278000223	Female Terminal
46	278000218	Wire Seal
47	211000021	PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
48	234052600	Flat Washer 5 mm, Stainless
49	204300204	HOSE 16 MM - Call your local BRP dealership
50	204130174	Y-Fitting
