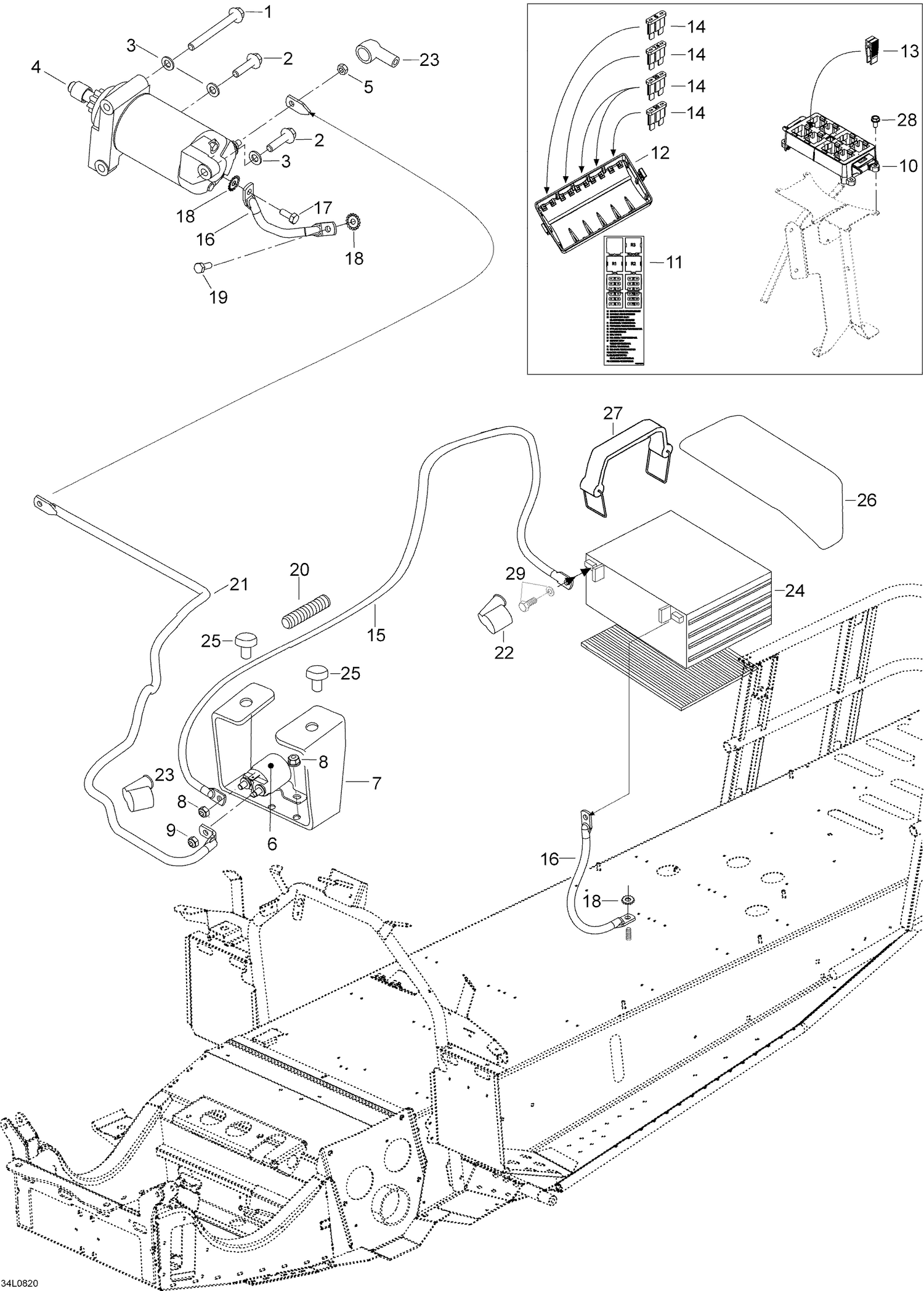

| Ref | Part Number | Description |
|---|
| 1 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 2 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 3 |
250200008 |
Flat Washer With Teflon 8 mm |
| 4 |
515176133 |
Electric start |
| 5 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 6 |
515176011 |
Starter relay |
| 7 |
605351708 |
BRACKET - Call your local BRP dealership |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 9 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 10 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 11 |
605453790 |
FUSE DECAL - Call your local BRP dealership |
| 12 |
515176066 |
COVER - Call your local BRP dealership |
| 13 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 14 |
42040 |
Fuse 5 A |
| 14 |
42041 |
Fuse 7.5 A |
| 14 |
42042 |
Fuse 20 A |
| 14 |
42043 |
Fuse 30 A |
| 14 |
42044 |
FUSE 1 A - Call your local BRP dealership |
| 15 |
605151524 |
Battery wire |
| 16 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 17 |
40327 |
Hex. screw M6 x 12 |
| 18 |
20017 |
Serrated lock washer 6mm |
| 19 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 20 |
28012 |
Tubing |
| 21 |
5348358 |
Battery wire |
| 22 |
570151000 |
Cover |
| 23 |
570151000 |
Cover |
| 24 |
410301203 |
Battery YUASA YTX20L |
| 25 |
570044700 |
Rubber stopper |
| 26 |
605352572 |
COVER - Call your local BRP dealership |
| 27 |
605352573 |
STEEL STRIP - Call your local BRP dealership |
| 28 |
207361644 |
Screw hex. |
