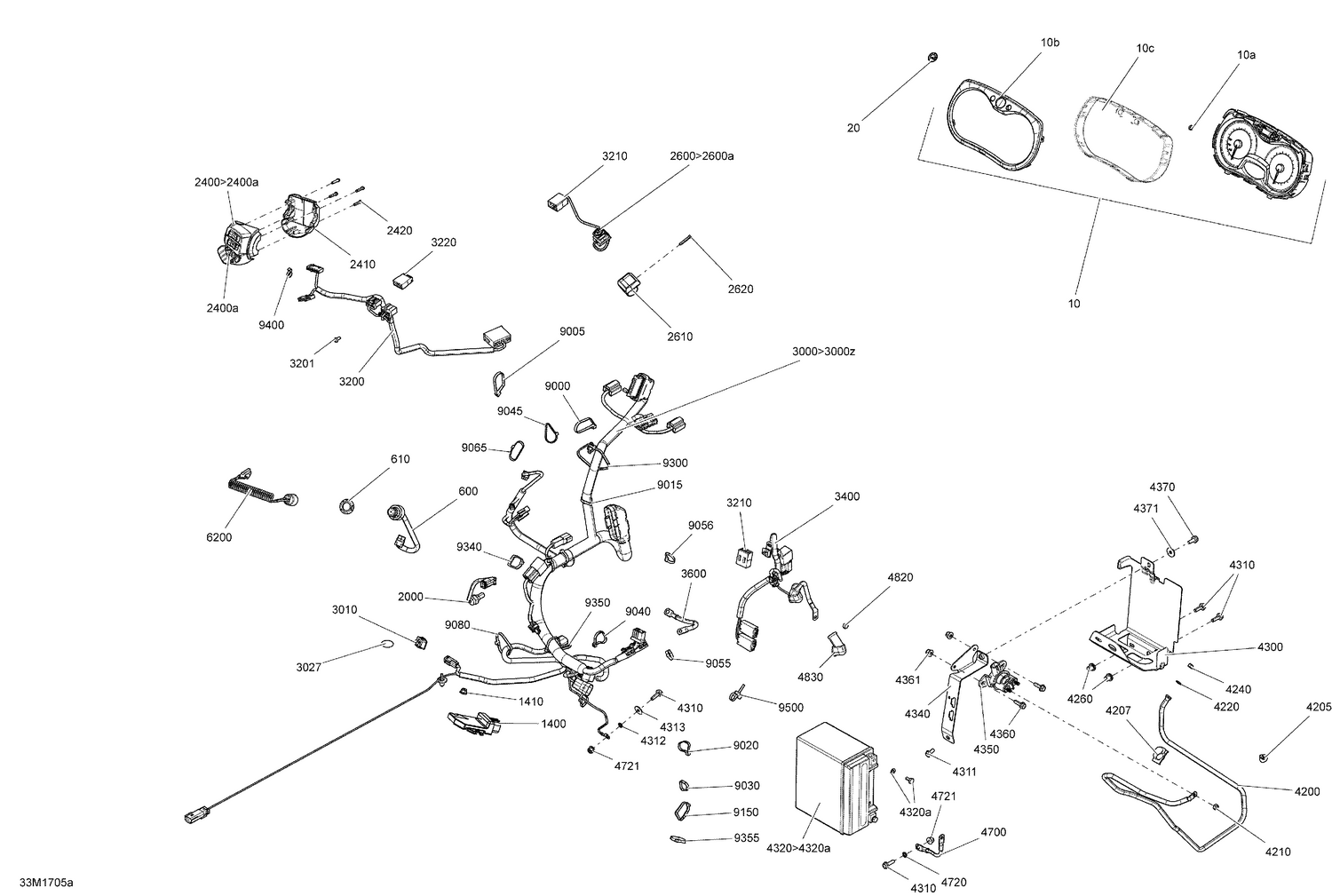

| Ref | Part Number | Description |
|---|
| 10a |
415129355 |
Speedometer Button |
| 10b |
415129370 |
Gauge Ring |
| 10c |
415129349 |
Lens |
| 20 |
516006224 |
BRP Logo 20MM x 2MM |
| 600 |
515177249 |
DESS Switch |
| 610 |
278002963 |
Safety Nut (DESS Switch) |
| 1400 |
515176364 |
Voltage Regulator |
| 1410 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2000 |
515177814 |
Sensor Temperature |
| 2010 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 2400a |
515176088 |
Start/RER Button |
| 2410 |
250000263 |
Torx Screw #8-18 |
| 2410 |
515175926 |
Switch Housing Plate |
| 2600a |
515175232 |
Male Terminal |
| 2610 |
515177310 |
Emergency Stop Switch Support |
| 2620 |
250000263 |
Torx Screw #8-18 |
| 3000a |
515175658 |
Female Housing, 2 Circuits |
| 3000aa |
710001131 |
Female Terminal |
| 3000ab |
710000992 |
Clip |
| 3000ac |
409003900 |
Fuse, 20 Amperes |
| 3000ad |
409004000 |
Fuse Holder |
| 3000ae |
409004200 |
Female Terminal |
| 3000af |
710000992 |
Clip |
| 3000ag |
278000343 |
Fuse, 15 Amperes |
| 3000ah |
409004000 |
Fuse Holder |
| 3000aj |
409004200 |
Female Terminal |
| 3000ak |
515175654 |
Male Terminal Housing, 2 Circuits |
| 3000am |
515175232 |
Male Terminal |
| 3000an |
278000992 |
Open Barrel |
| 3000ap |
515177663 |
Female Housing |
| 3000aq |
515176909 |
Terminal |
| 3000ar |
515177663 |
Female Housing |
| 3000as |
515176909 |
Terminal |
| 3000at |
409010400 |
Female Terminal Housing, 1 Circuit |
| 3000au |
409010100 |
Female Terminal |
| 3000av |
515175801 |
Female Housing, 24 Circuits |
| 3000aw |
515175802 |
Retainer Block |
| 3000ax |
515175812 |
Plug |
| 3000ay |
710000399 |
Female Housing |
| 3000az |
515175803 |
Wire Seal |
| 3000b |
515175231 |
Female Terminal |
| 3000ba |
710001131 |
Female Terminal |
| 3000bb |
515177192 |
Female Housing, 2 Circuits |
| 3000bc |
710001163 |
Wire Seal |
| 3000bd |
710001164 |
Female Terminal |
| 3000be |
409209900 |
Female Housing, 5 Circuits |
| 3000bf |
710010053 |
Relay This part replaces 515177041. |
| 3000bg |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 3000bh |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 3000bj |
515176530 |
Connector |
| 3000bk |
515176594 |
Seal |
| 3000bm |
515176531 |
Terminal |
| 3000bn |
515175350 |
Female Terminal Housing, 13 Circuits |
| 3000bp |
515175231 |
Female Terminal |
| 3000bq |
515175282 |
Female Terminal |
| 3000br |
515178023 |
Housing |
| 3000bs |
515178013 |
Male Terminal |
| 3000bt |
710000992 |
Clip |
| 3000bu |
710000568 |
Housing |
| 3000bv |
515176621 |
Wire Seal |
| 3000bw |
515176164 |
Male Terminal |
| 3000c |
515175819 |
Female Terminal Housing, 8 Circuits |
| 3000d |
515175231 |
Female Terminal |
| 3000e |
278002896 |
Housing, 6 Circuits |
| 3000f |
515175678 |
Male Wedge, 6 Circuits |
| 3000g |
278000632 |
Female Terminal |
| 3000h |
278001665 |
Female Terminal |
| 3000j |
278000635 |
Female Housing, 4 Circuits |
| 3000k |
278000636 |
Female Wedge, 4 Circuits |
| 3000m |
278000631 |
Male Terminal |
| 3000n |
409206900 |
Male Housing, 2 Circuits |
| 3000p |
409207500 |
Male Lock, 2 Circuits |
| 3000q |
278000631 |
Male Terminal |
| 3000r |
515175495 |
Female Housing, 3 Circuits |
| 3000s |
515175231 |
Female Terminal |
| 3000t |
515176223 |
Female Terminal Housing, 36 Circuits |
| 3000u |
515176224 |
Terminal Support |
| 3000v |
515175812 |
Plug |
| 3000w |
515176221 |
Female Housing |
| 3000x |
515176485 |
Protection Cap |
| 3000y |
515176222 |
Wire Seal |
| 3000z |
515175806 |
Female Terminal |
| 3010 |
515176681 |
Lock |
| 3027 |
518325560 |
Adhesive Patch |
| 3200 |
515177609 |
Steering Wiring Harness |
| 3201 |
250000690 |
Pan Screw Forming, 7500C |
| 3210 |
515175817 |
Male Terminal Housing, 8 Circuits |
| 3220 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 3600 |
515177289 |
Ground Wire |
| 4310 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 4312 |
234461608 |
External Serrated Lock Washer 6 mm |
| 4320a |
250000282 |
Battery Bolt Kit |
| 4721 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6200 |
515178284 |
DESS This part replaces 515178146. |
| 9000 |
414115200 |
Tie-Rap 180 mm |
| 9005 |
414115200 |
Tie-Rap 180 mm |
| 9015 |
414115200 |
Tie-Rap 180 mm |
| 9040 |
414115200 |
Tie-Rap 180 mm |
| 9045 |
414115200 |
Tie-Rap 180 mm |
| 9055 |
414115200 |
Tie-Rap 180 mm |
| 9065 |
414115200 |
Tie-Rap 180 mm |
| 9080 |
293750008 |
Tie Wrap 368 mm |
| 9150 |
414115200 |
Tie-Rap 180 mm |
| 9300 |
293750008 |
Tie Wrap 368 mm |
| 9330 |
414115200 |
Tie-Rap 180 mm |
| 9340 |
293750008 |
Tie Wrap 368 mm |
| 9350 |
293750008 |
Tie Wrap 368 mm |
| 9400 |
293750002 |
Tie Wrap 142 mm |
