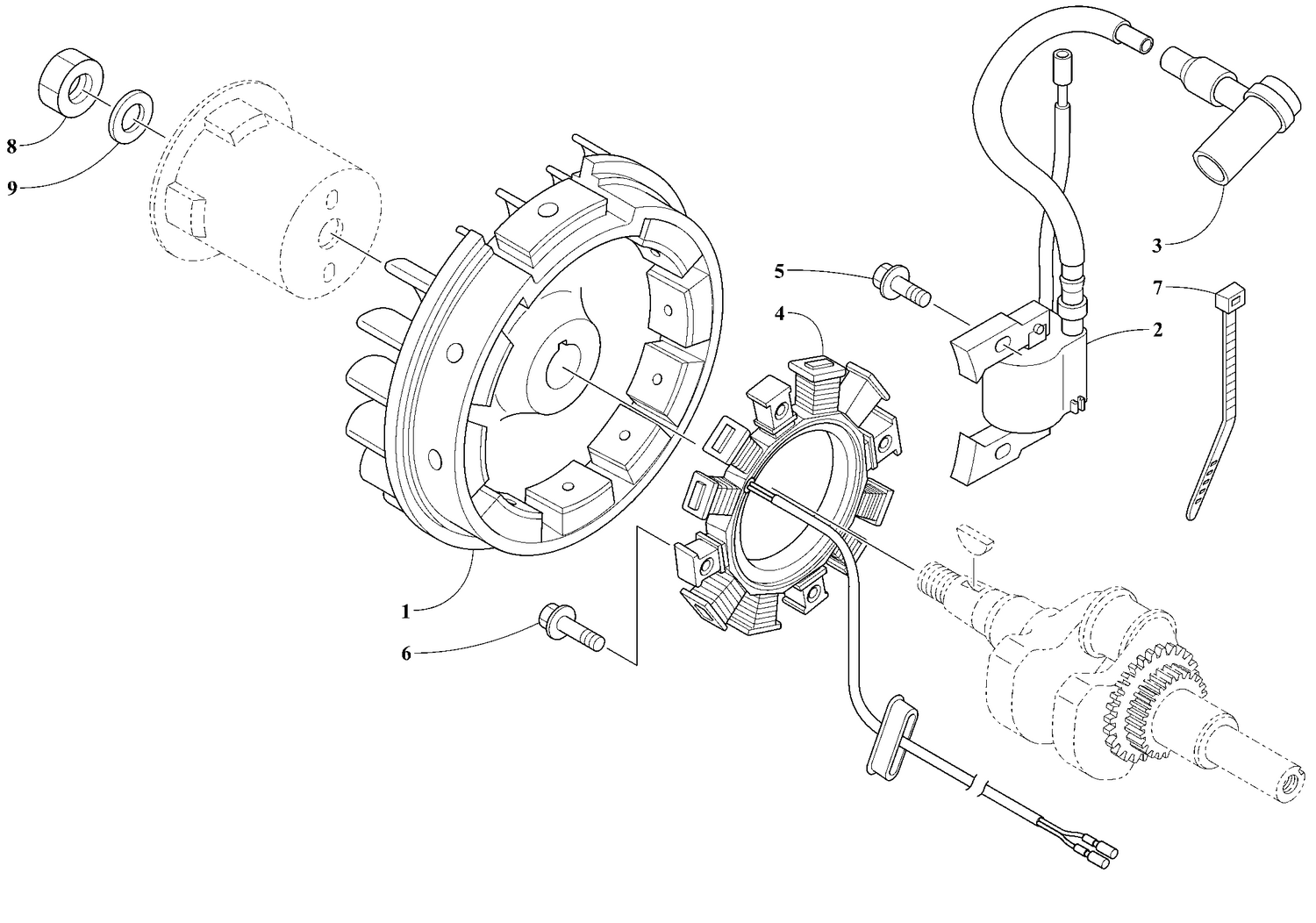

Engine - Magneto

Engine - Magneto

Parts (8)

RefPart NumberDescription
1 3021-950 Rotor/Flywheel
2 3021-951 Ignition Coil Ass'y
3 3020-075 Spark Plug Cap
4 3021-992 Stator
5 3021-817 Cap SCrew
6 3021-818 Cap Screw
7 414115200 Tie-Rap 180 mm
8 3020-095 Nut
