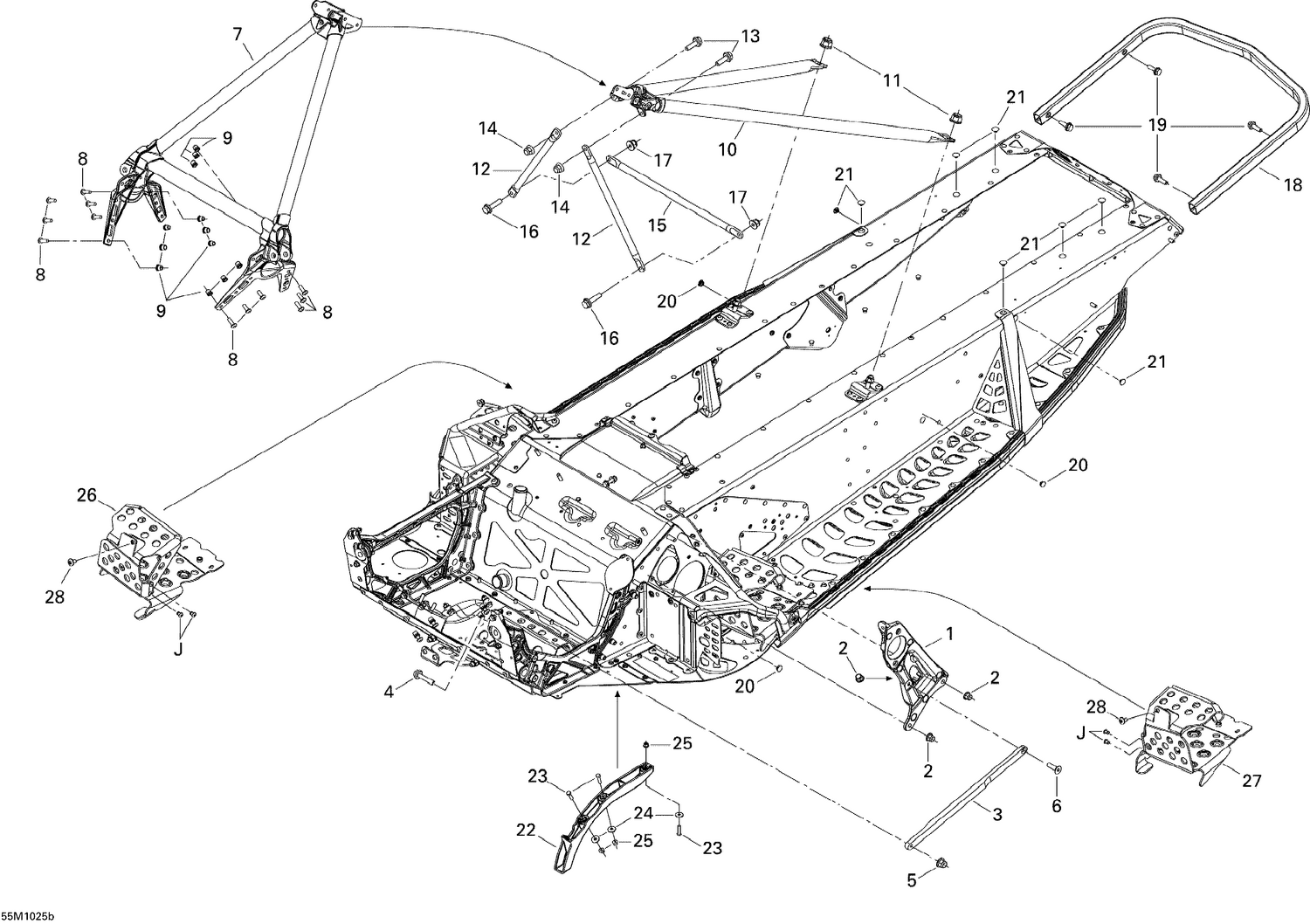

| Ref | Part Number | Description |
|---|
| A |
293150144 |
Stavex Rivet |
| B |
293150120 |
Hemlock Rivet 6.5 mm |
| C |
293150119 |
Hemlock Rivet, 6.5 mm |
| D |
293150104 |
Pop Rivet 3/16" |
| E |
390909200 |
Avex Rivet |
| F |
293150091 |
Henrob Rivet |
| G |
293150146 |
Henrob Rivet |
| H |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| I |
293150174 |
Hemlock Rivet, 6.4 mm |
| J |
390909100 |
Avex Rivet |
| K |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership This part replaces 293150175. |
| 1 |
518328346 |
Pulley Support This part replaces 518326369. |
| 2 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3 |
518326118 |
LINK - Call your local BRP dealership |
| 4 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 7 |
518327565 |
Front Member This part replaces 518326273. |
| 8 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
518326559 |
Rear Member This part replaces 518325927. |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
518325114 |
Upper Lateral Column Support |
| 13 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
518325115 |
Center Column Support |
| 16 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
518324980 |
Clear Rear Bumper |
| 19 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 20 |
293730041 |
Full Moon Dart 8 mm |
| 21 |
293730042 |
Full Moon Dart 5 mm |
| 22 |
518326973 |
Front Tunnel Protector This part replaces 518324985. |
| 23 |
207152044 |
Hex. Screw M5 X 20 |
| 24 |
391301600 |
Washer |
| 25 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 26 |
518326396 |
FOOTREST RH - Call your local BRP dealership |
| 27 |
518326397 |
FOOTREST LH - Call your local BRP dealership |
| 28 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
