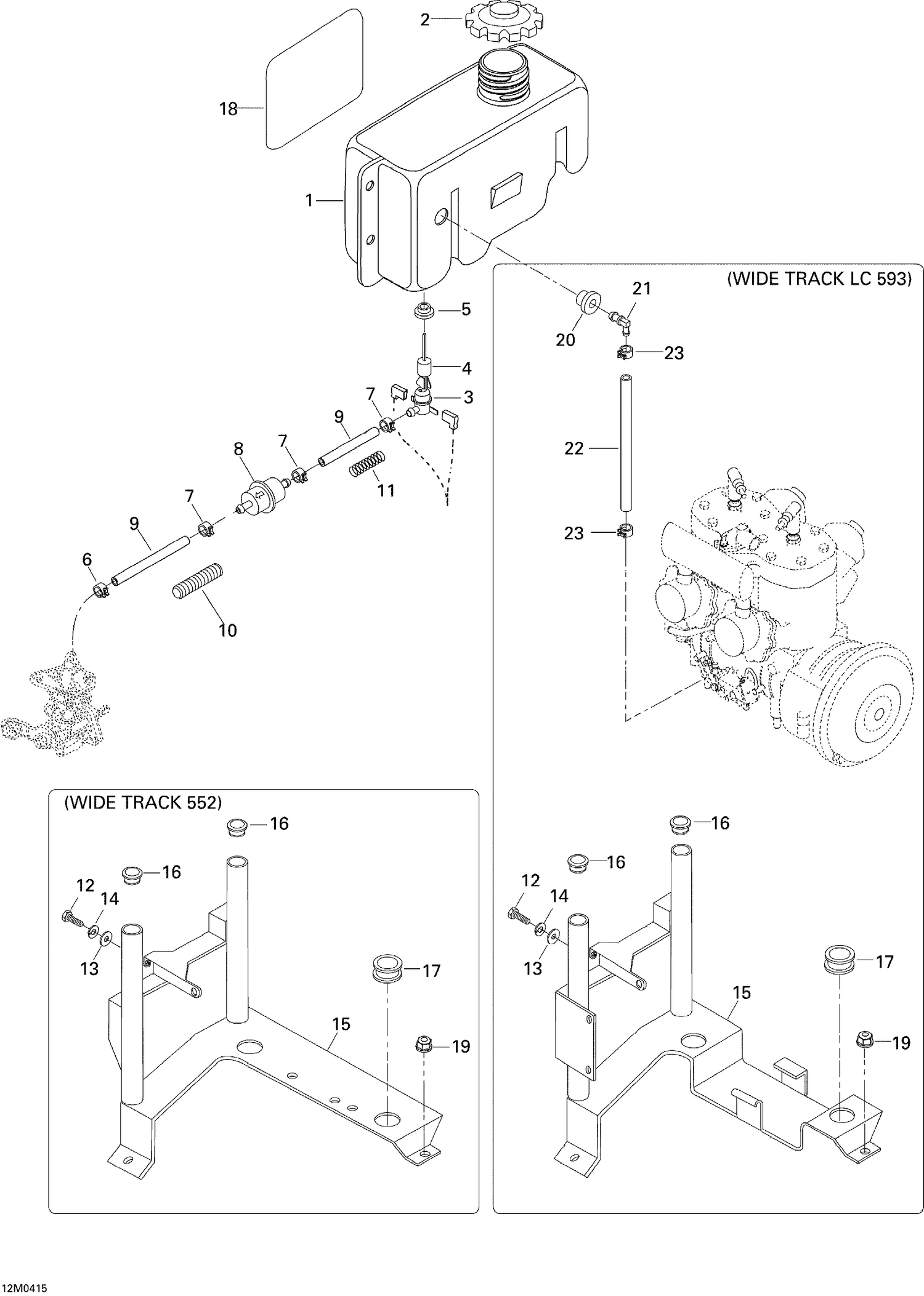

02- Oil Tank
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 4 | 414681900 | Float |
| 5 | 570023000 | Insulating Ring |
| 6 | 414420700 | Spring Clamp |
| 7 | 414415200 | Spring Clamp |
| 8 | 414536500 | Filter |
| 9 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 10 | M28015 | HOUSING - Call your local BRP dealership |
| 11 | M250001 | Spring |
| 12 | M40322 | Screw |
| 13 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 14 | 234161471 | Lock Washer M6, Black |
| 16 | M28136 | PLUG - Call your local BRP dealership |
| 18 | M5443578 | Reflecting Sheet |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
