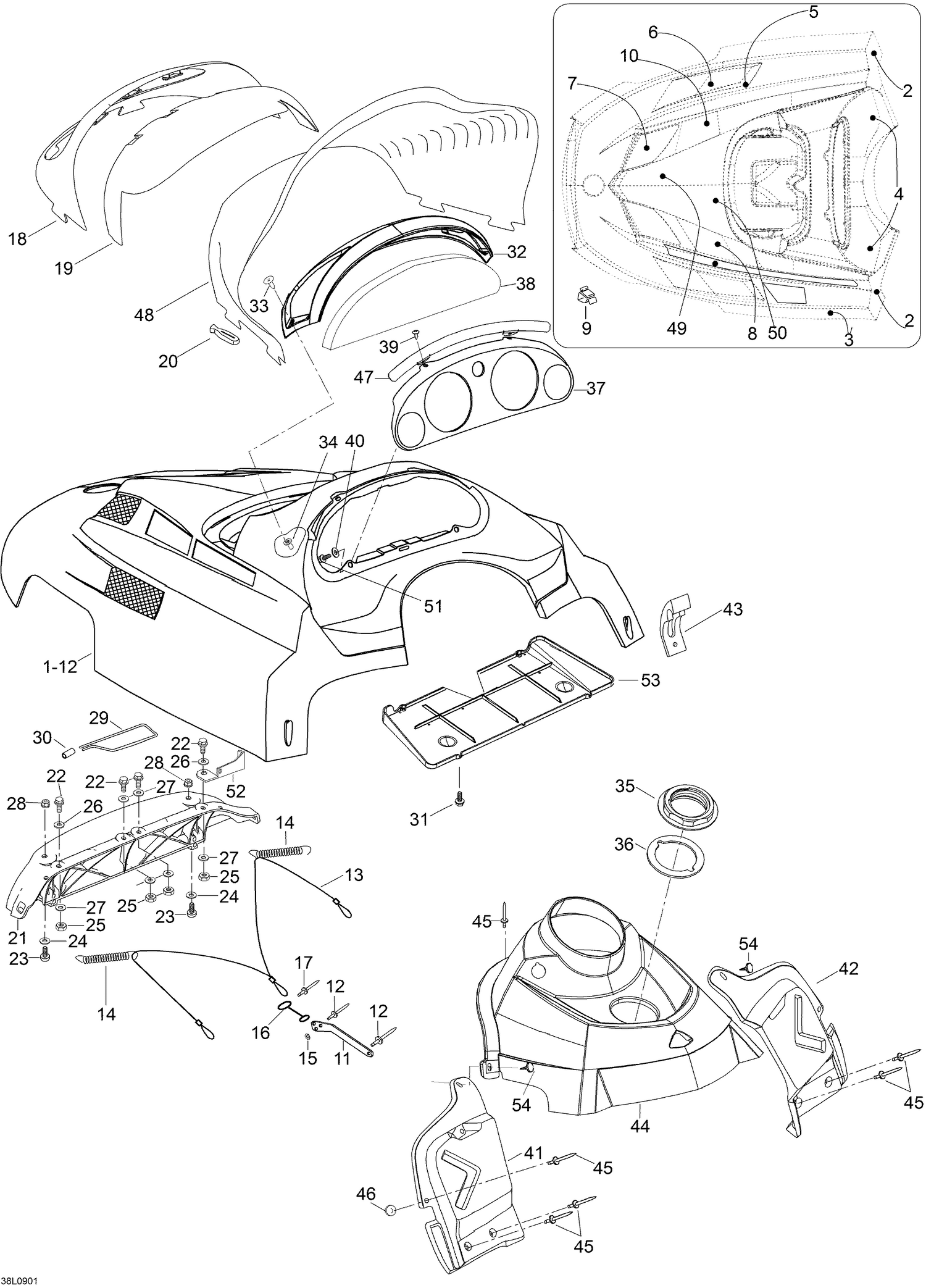

| Ref | Part Number | Description |
|---|
| 2 |
605350906 |
ISOLATION REAR LH - Call your local BRP dealership |
| 2 |
605350907 |
ISOLATION REAR RH - Call your local BRP dealership |
| 3 |
605350908 |
ISOLATION REAR RH - Call your local BRP dealership |
| 4 |
605350909 |
LOWER ISOLATION REAR LH - Call your local BRP dealership |
| 4 |
605350910 |
UPPER ISOLATION REAR RH - Call your local BRP dealership |
| 5 |
605350922 |
HEAT PROTECTOR - Call your local BRP dealership |
| 6 |
605350923 |
LH UPPER GRILL - Call your local BRP dealership |
| 6 |
605355758 |
Cover |
| 7 |
605350925 |
LH LOWER GRILL - Call your local BRP dealership |
| 7 |
605350926 |
RH LOWER GRILL - Call your local BRP dealership |
| 8 |
605350927 |
LH GRILL - Call your local BRP dealership |
| 9 |
517302785 |
Edge Clip |
| 10 |
605350911 |
ISOLATION REAR CENTER LH - Call your local BRP dealership |
| 11 |
605452657 |
BRACKET - Call your local BRP dealership |
| 12 |
36002 |
Rivet |
| 13 |
605351372 |
Retainer Cable |
| 14 |
5442675 |
Spring |
| 15 |
20001 |
Washer A4,3 DIN125 -St m Zne(1=10pcs) - Call your local BRP dealership |
| 16 |
5442870 |
Retainer Cable Clip - Call your local BRP dealership |
| 17 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 18 |
517302158 |
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 19 |
517302003 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 20 |
570023800 |
Windshield Latch |
| 21 |
517302631 |
Hinge |
| 22 |
40030 |
Hex. screw screw M6 x 20 |
| 23 |
40381 |
Socket head screw M6 x 20 |
| 24 |
20117 |
Washer |
| 25 |
232561434 |
Elastic Stop Nut M6 This part replaces 33010. |
| 26 |
20003 |
Washer A6,4 |
| 27 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 29 |
605454779 |
Pin |
| 30 |
605454780 |
BUSHING - Call your local BRP dealership |
| 31 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 32 |
605151832 |
COVER - Call your local BRP dealership |
| 33 |
40061 |
Handle Screw, low, M4 x 18 Black(1=10pcs - Call your local BRP dealership |
| 34 |
28051 |
Well-nut |
| 35 |
517302043 |
CONSOLE NUT - Call your local BRP dealership |
| 36 |
5447116 |
Gasket - Call your local BRP dealership |
| 37 |
605354134 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 38 |
605352583 |
FILTER - Call your local BRP dealership |
| 39 |
40888 |
Screw 4,2 x 19 |
| 40 |
20039 |
Washer 4mm |
| 41 |
605251384 |
LH CONSOLE - Call your local BRP dealership |
| 42 |
605251922 |
RH CONSOLE - Call your local BRP dealership |
| 43 |
517302152 |
Hood Latch |
| 44 |
605251387 |
CONSOLE, MIDDLE - Call your local BRP dealership |
| 45 |
36037 |
Black Rivet |
| 46 |
20008 |
Washer 5,3 mm |
| 47 |
605352586 |
SUPPORT PLATE - Call your local BRP dealership |
| 48 |
605152073 |
Windshield |
| 49 |
605350912 |
ISOLATION CENTER LH - Call your local BRP dealership |
| 49 |
605350913 |
ISOLATION CENTER RH - Call your local BRP dealership |
