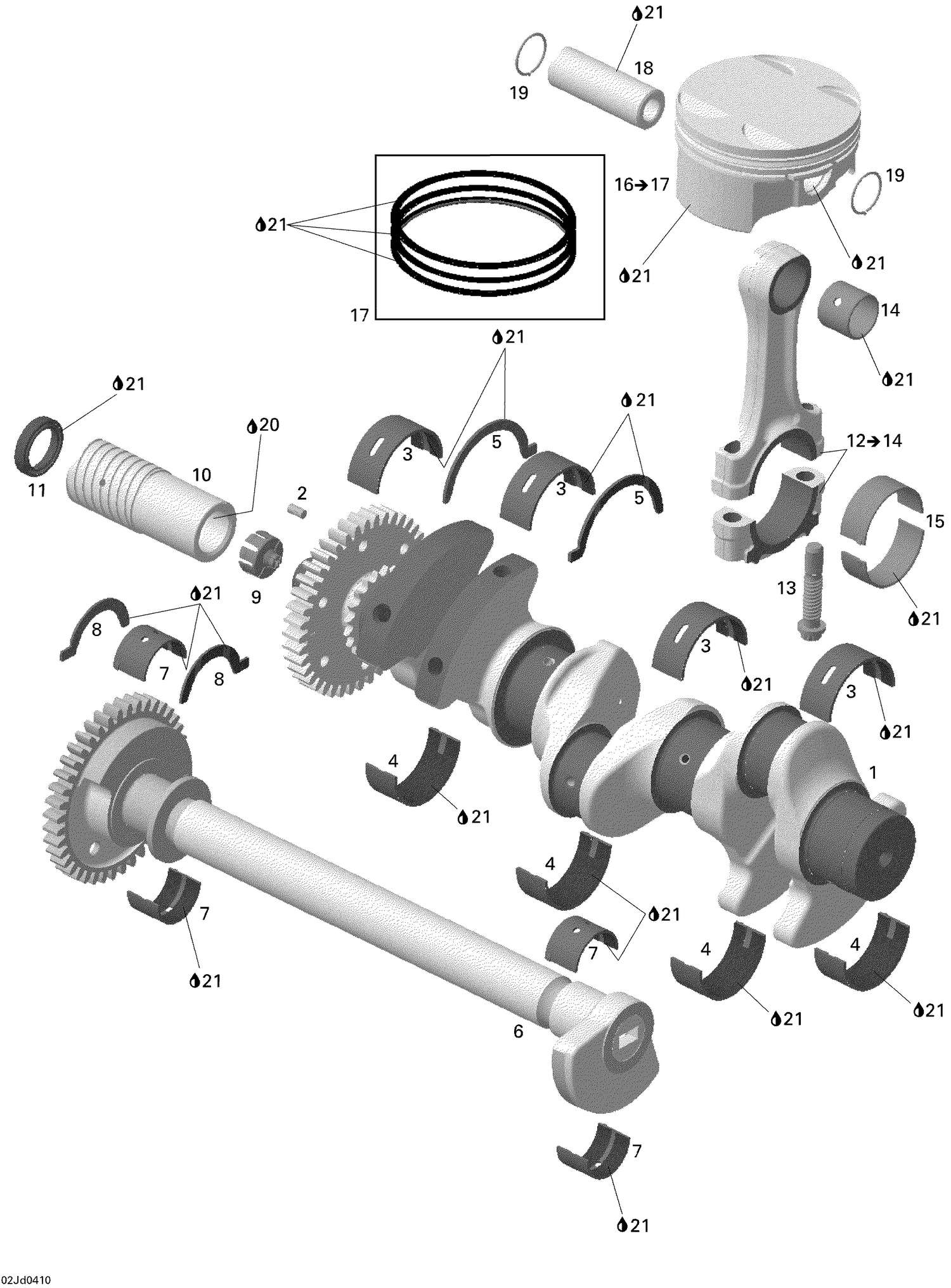

| Ref | Part Number | Description |
|---|
| 1 |
421000670 |
REBUILD-CRANKSHAFT 1503 02 A 05 - Call your local BRP dealership This part replaces 420819078. |
| 2 |
420929650 |
Drive Pin 5 X 10 |
| 3 |
420933456 |
Plain Half-Bearing This part replaces 420933455. |
| 4 |
420933466 |
Plain Half-Bearing This part replaces 420933465. |
| 5 |
420933475 |
Half-Ring |
| 6 |
420837559 |
Balance Shaft Ass'Y This part replaces 420837555. |
| 7 |
420933442 |
Plain Bearing Half This part replaces 420933440. |
| 8 |
420933470 |
Half-Ring |
| 9 |
420660280 |
Stop Sleeve |
| 10 |
420947770 |
Output Sleeve This part replaces 420847952. |
| 11 |
420630551 |
Sealing Ring This part replaces 420630550. |
| 13 |
420640991 |
Connecting rod Screw M10 X 1 This part replaces 420640990. |
| 14 |
420933510 |
Bearing Sleeve |
| 15 |
420933523 |
Half-Bearing This part replaces 420933520. |
| 17 |
420890380 |
Piston Set Ring, Standard This part replaces 420888864. |
| 18 |
420216250 |
Piston Pin |
| 19 |
420845580 |
Circlip |
| 20 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 420296566 |
Piston |
Ass'y, Oversize, 100.21 mm 420296566 |
| 420890381 |
Piston |
Set Ring, Oversize This part replaces 420888865. 420890381 |
