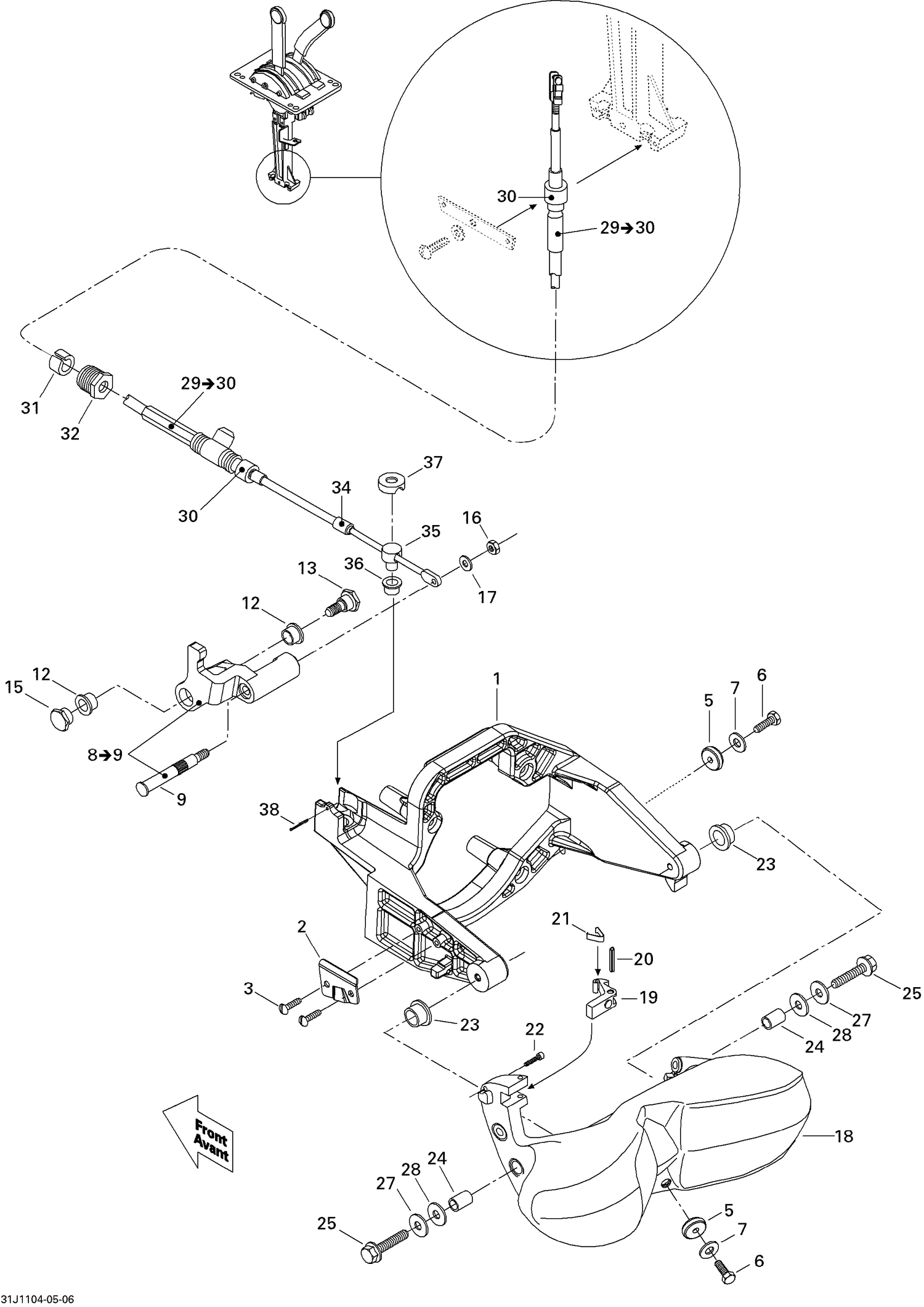

| Ref | Part Number | Description |
|---|
| 1 |
204170214 |
Reverse Gate Support |
| 2 |
271000485 |
STOP PAWL - Call your local BRP dealership |
| 3 |
204100122 |
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership |
| 5 |
271001813 |
Anode Zinc This part replaces 271001487. |
| 6 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 9 |
204130037 |
PIN - Call your local BRP dealership |
| 12 |
0308532 |
Bushing This part replaces 204130036. |
| 13 |
204100124 |
SHOULDER SCREW - Call your local BRP dealership |
| 15 |
204100123 |
SHOULDER NUT - Call your local BRP dealership |
| 16 |
0460000 |
NUT-STOP ELASTIC 1 - Call your local BRP dealership This part replaces 204100034. |
| 17 |
234052600 |
Flat Washer 5 mm, Stainless |
| 18 |
204170213 |
Reverse Gate |
| 19 |
204170220 |
HOOK - Call your local BRP dealership |
| 20 |
211400009 |
Pin |
| 21 |
271000431 |
Spring |
| 22 |
204100127 |
Socket Head Screw |
| 23 |
204130237 |
Bushing |
| 24 |
204170177 |
Sleeve |
| 25 |
204100163 |
Hex. Flange Screw 18 X 1.56 |
| 27 |
234082600 |
Flat Washer 8 mm, Stainless |
| 28 |
204100128 |
WASHER, NYLON - Call your local BRP dealership |
| 30 |
277001583 |
End Piece This part replaces 277000846. |
| 31 |
204130420 |
Slip Grommet - Call your local BRP dealership |
| 32 |
277001729 |
Steering Cable Lock This part replaces 277000784. |
| 34 |
277001582 |
Wiper Rod This part replaces 277000849. |
| 35 |
204130038 |
THREADED END PIECE - Call your local BRP dealership |
| 36 |
204130237 |
Bushing |
| 37 |
296000396 |
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212. |
