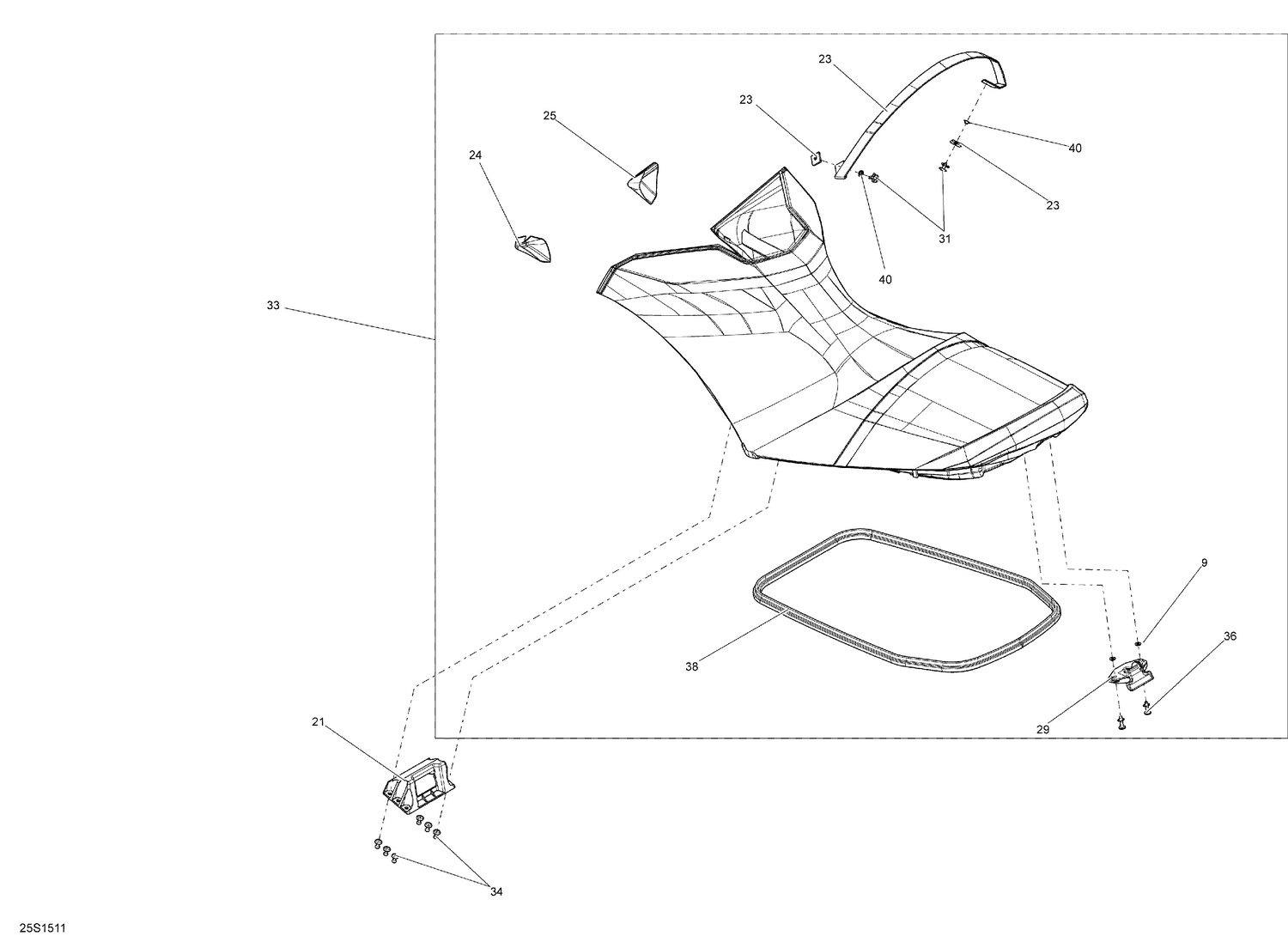

09- Seat _25S1511
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 234061600 | Stainless Flat Washer M6 |
| 21 | 269002151 | Seat Receptacle |
| 23 | 269002364 | Seat Strap |
| 24 | 269002839 | RH Front Corner Protector |
| 25 | 269002840 | LH Front Corner Protector |
| 29 | 269700109 | Latch Ass'y |
| 31 | 293150067 | Rivet |
| 34 | 293150123 | Pop Rivet 3/16" |
| 36 | 293150151 | Rivet 1/4" |
| 38 | 219704366 | Was 293200062 Seal |
