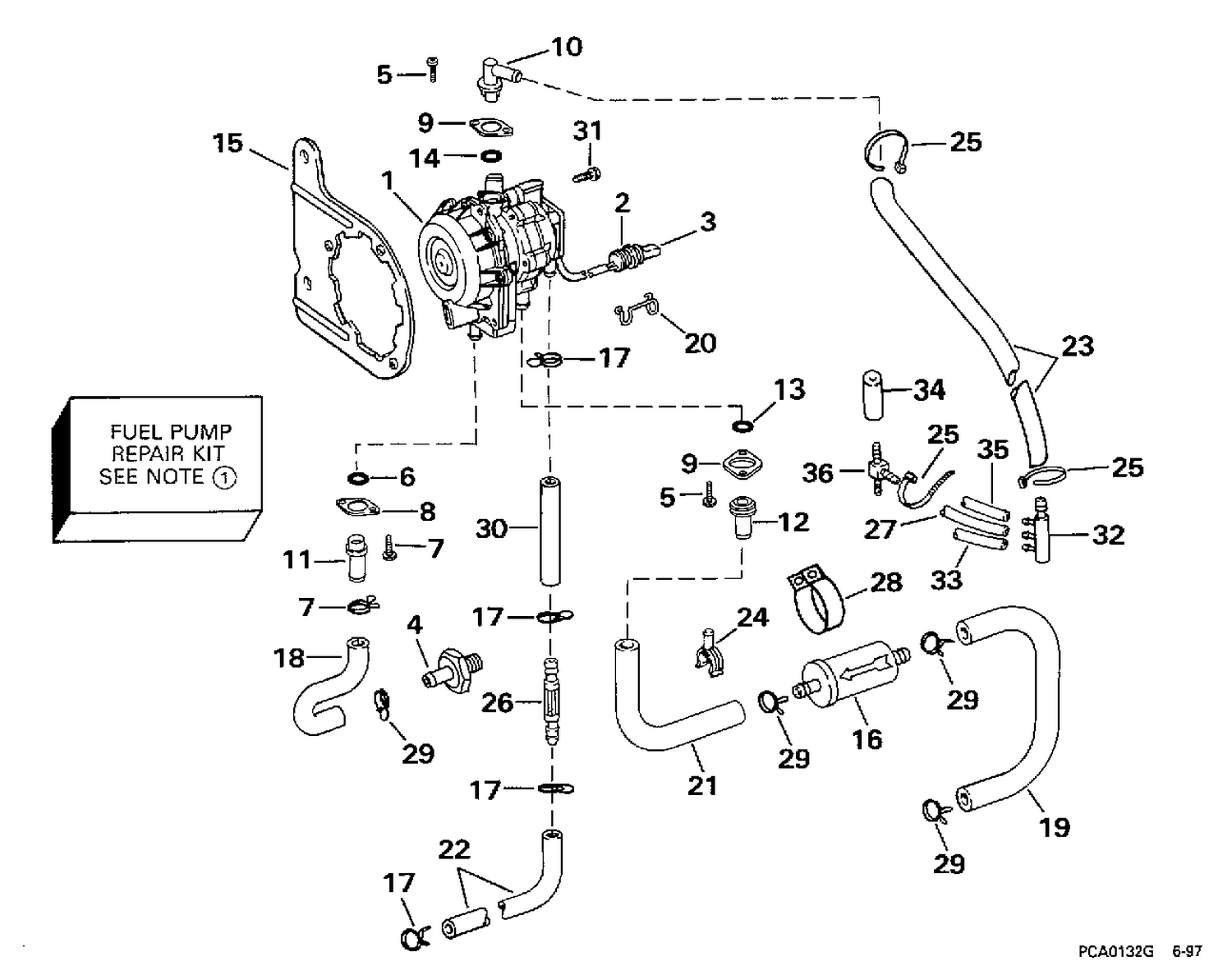

| Ref | Part Number | Description |
|---|
| 1 |
5007420 |
Kit Ay This part replaces 0438400. |
| 8 |
0340201 |
RETAINER |
| 14 |
0335230 |
O-RING |
| 15 |
0331624 |
BRACKET, Fuel pump to manifold |
| 16 |
0398327 |
FILTER, MAP sensor |
| 17 |
0339277 |
CLAMP, Exh back pressure hose |
| 18 |
0333380 |
HOSE, Connector to pump |
| 19 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 20 |
0512743 |
DISPOSITIF DE RETENUE |
| 21 |
0336234 |
HOSE, Filter to fuel pump |
| 23 |
0336742 |
HOSE, Fuel pump to manifold |
| 24 |
0329661 |
SUPPORT/BOUCHON |
| 25 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 26 |
0331623 |
FILTER AND HOSE ASSY. |
| 27 |
HOSE, |
Manifold to fuel tee, 1 1/4 in. (32mm) long |
| 28 |
0344044 |
CLAMP, Cable to c/c |
| 29 |
0339278 |
COLLIER DE SERRAGE |
| 30 |
0333384 |
HOSE ASSY. |
| 31 |
0344278 |
SCREW, Fuel pump to mount |
| 32 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 33 |
0336236 |
HOSE, Fuel pump to carburetor |
| 34 |
HOSE, |
Fuel tee to middle carb., 1 1/4 in. (3 mm) |
| 35 |
0336236 |
HOSE, Fuel pump to carburetor |
