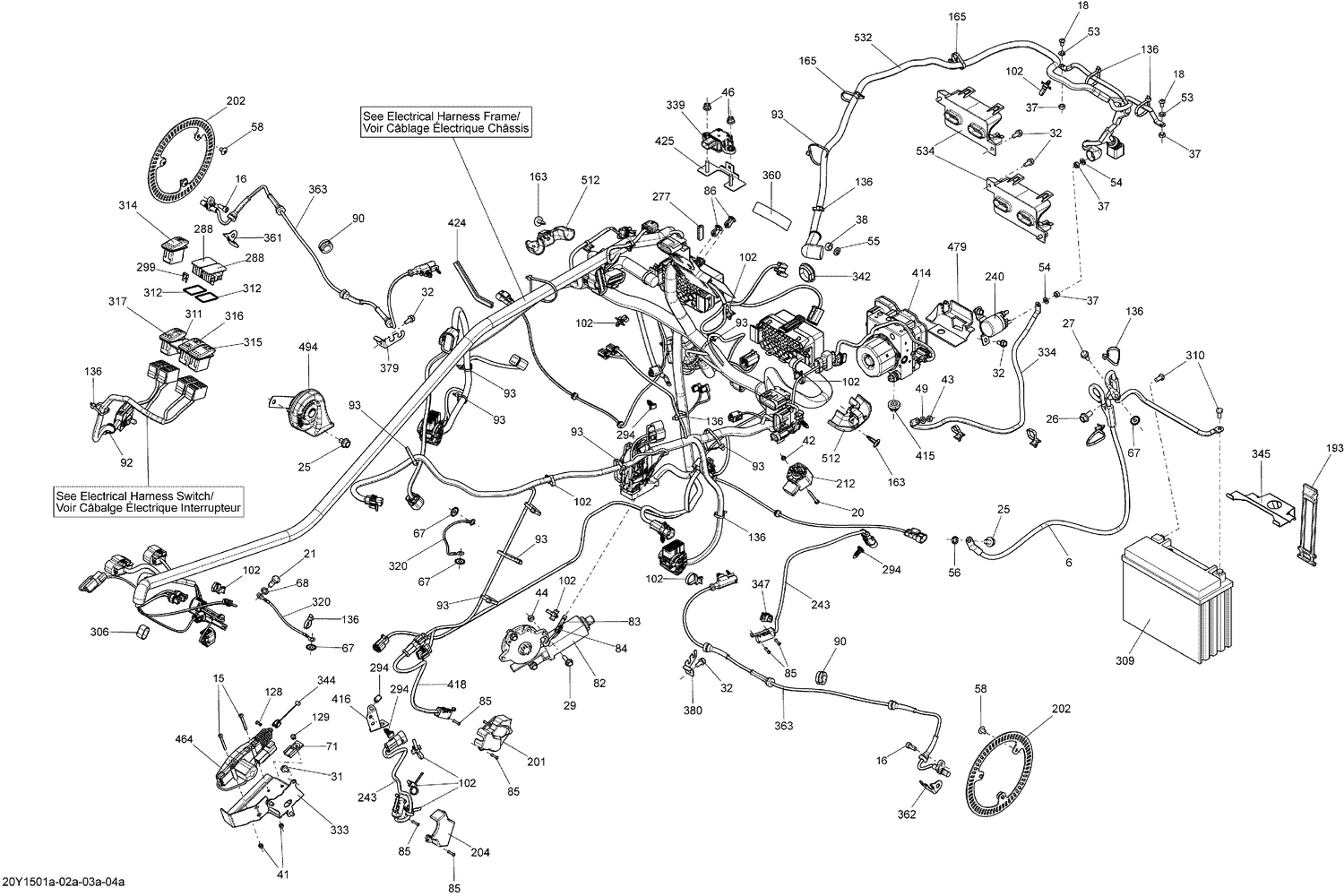

10- Electrical System _20Y1503a
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 205444086 | Socket Head Screw M4 X 40 |
| 16 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 18 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 20 | 207144044 | Hex. Cap Screw |
| 21 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 25 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 26 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 27 | 207661644 | Hex. Flange Screw M6 X 16 |
| 29 | 207662054 | Hex. Flange Screw M6 X 20 |
| 31 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 32 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 37 | 232061600 | Hex. Nut M6 |
| 38 | 232081414 | Hex. Nut M8 |
| 41 | 232541414 | Elastic Stop Nut M4 |
| 42 | 232541484 | Elastic Stop Nut M4 |
| 43 | 232561434 | Elastic Stop Nut M6 |
| 44 | 232561434 | Elastic Stop Nut M6 |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 49 | 234061600 | Stainless Flat Washer M6 |
| 53 | 234161601 | Lock Washer Helical M6 |
| 54 | 234161601 | Lock Washer Helical M6 |
| 55 | 234181601 | Lock Washer 8 mm, Stainless |
| 56 | 234481608 | Serrated Lock Washer 8 mm |
| 58 | 250000995 | Torx-truss M/s M6 X 10 This part replaces 250000210. |
| 67 | 250200041 | Lock Washer Serrated M6 |
| 68 | 250200111 | Washer |
| 71 | 270000141 | Clip |
| 83 | 278000231 | Insulation Sheath |
| 84 | 278000230 | Male Terminal |
| 85 | 293150150 | Pop Rivet |
| 86 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 90 | 293720095 | Grommet |
| 92 | 293750002 | Tie Wrap 142 mm |
| 93 | 293750008 | Tie Wrap 368 mm |
| 102 | 293750009 | Tie-Rap 173 mm |
| 128 | 390403000 | Pop Rivet 5/32 |
| 129 | 390402400 | Pop Rivet 3/16" |
| 136 | 414115200 | Tie-Rap 180 mm |
| 163 | 414745900 | Tuflock Phillips Plastic Screw |
| 165 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 193 | 520000528 | Latch |
| 201 | 705601344 | Deflector |
| 202 | 705601512 | Front Sensor Wheel This part replaces 705601371. |
| 204 | 705601402 | LPS Deflector |
| 212 | 219800354 | Steering Position Sensor This part replaces 709401171. |
| 240 | 710007777 | Starter Relay This part replaces 710001364. |
| 243 | 710001379 | Brake Pressure Switch Ass'y |
| 277 | 219704354 | Trim 1000Mm Long |
| 294 | 710002033 | Connector Holder |
| 299 | XXX | Not Available As Spare Parts |
| 306 | XXX | Not Available As Spare Parts |
| 311 | 710002260 | Plug |
| 314 | 710002350 | Switch, Parking Brake |
| 316 | 710002352 | Suspension Switch |
| 317 | 710002354 | Switch, Heat Grip |
| 320 | 710004368 | Fuel Tank Cable |
| 333 | 710005642 | Reverse Actuator Support This part replaces 710002523. |
| 334 | 710004737 | START CABLE - Call your local BRP dealership This part replaces 710004373. |
| 339 | 710002677 | Yaw Rate Sensor |
| 342 | 710002858 | Rubber Plug |
| 344 | 710002889 | Reverse Cable |
| 345 | 710002893 | Battery Holder |
| 347 | 710002896 | Tie-Rap Clip |
| 360 | 710003077 | RH/LH Fuse Box Decal |
| 361 | 710004860 | LH Support Wire This part replaces 710003089. |
| 362 | 710004861 | RH Support Wire This part replaces 710003090. |
| 363 | 219800456 | Kit Speed Sensor This part replaces 710003091. |
| 379 | 710003156 | Speed Sensor Holder |
| 380 | 710003157 | Speed Sensor Holder |
| 415 | 710003279 | Shock Damper |
| 416 | 710003305 | Connectors Bracket |
| 418 | 710003412 | Brake Light Switch Ass'y |
| 424 | 219704354 | Trim 1000Mm Long |
| 425 | 710003494 | YRS Holder |
| 436 | 710004733 | Cable Neg This part replaces 710004369. |
| 464 | 710008369 | Reverse Actuator Ass'y This part replaces 710003776. |
| 479 | 710003996 | VCM Harness Protector |
| 494 | 710004229 | HORN - Call your local BRP dealership |
| 512 | 710004307 | WIRE SUPPORT - Call your local BRP dealership |
| 532 | 710004736 | POSITIVE CABLE - Call your local BRP dealership This part replaces 710004371. |
