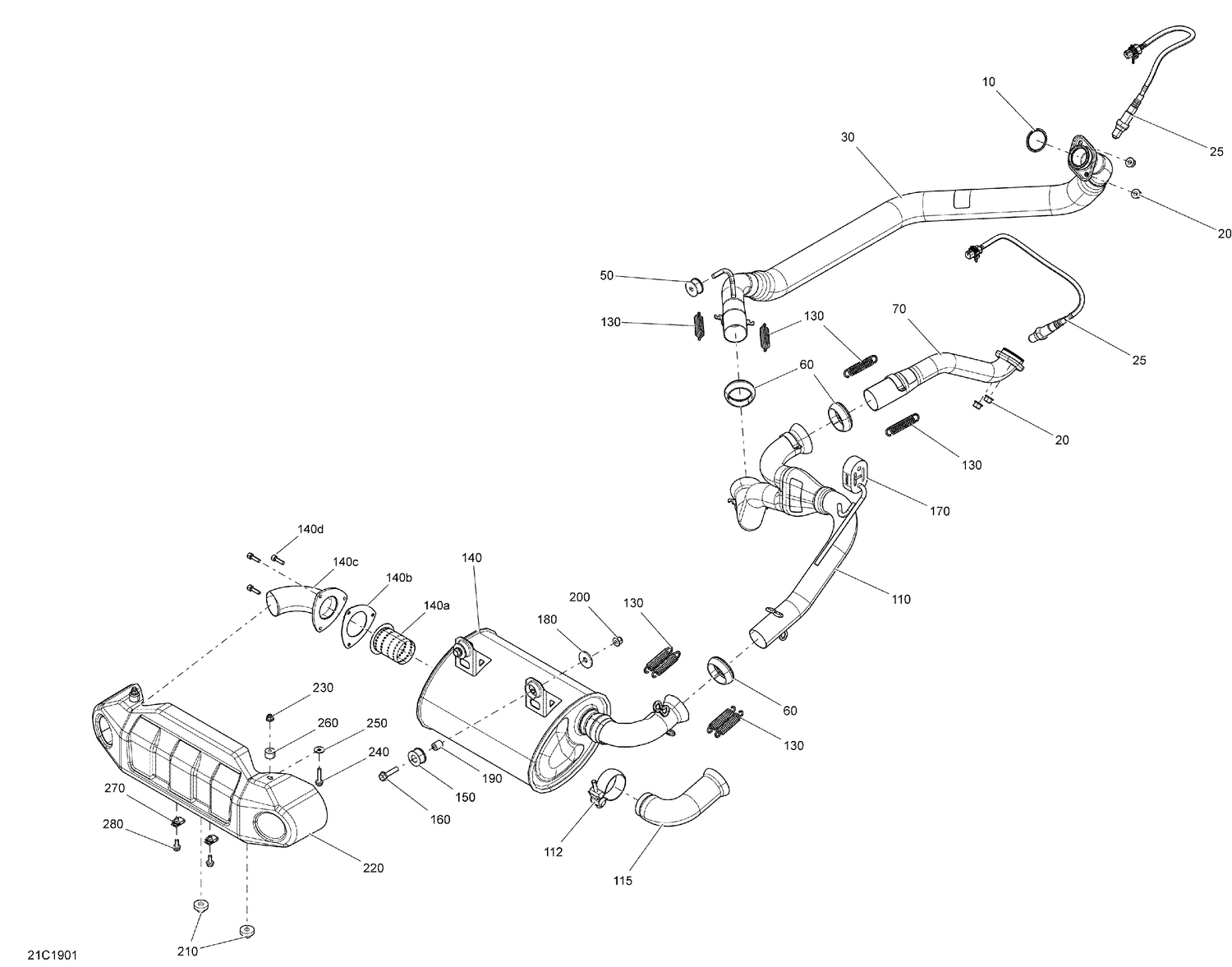

01- Exhaust - 800R EFI
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 25 | 707600872 | Oxygen Sensor |
| 30 | 707601203 | Front Head Pipe |
| 50 | 707600702 | Anti-Vibration Rubber |
| 60 | 707601033 | Exhaust Gasket |
| 70 | 707601205 | Rear Head Pipe |
| 110 | 707601207 | Link Head Pipe |
| 112 | 707600980 | Exhaust Clamp |
| 115 | 707601327 | LINK HEAD PIPE - Call your local BRP dealership |
| 120 | 707601033 | Exhaust Gasket |
| 130 | 415107100 | Spring |
| 140a | 707601803 | Spark Arrester This part replaces 715900089. |
| 140b | 715900090 | Gasket |
| 140c | 715900091 | Muffler Outlet End Piece |
| 140d | 205062060 | Socket Head Screw M6 X 20 |
| 150 | 707603323 | Vibration Damper This part replaces 707600701. |
| 160 | 207683544 | Hex. Flange Screw M8 X 35 |
| 170 | 707600638 | Rubber Bumper |
| 180 | 503032900 | Washer |
| 190 | 293900106 | Bushing |
| 200 | 233281414 | Hex. Flange Elastic Nut M8 |
| 210 | 709200285 | Grommet |
| 220 | 707600675 | Deflector |
| 230 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 240 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 250 | 250200082 | Flat Washer |
| 260 | 707000882 | Bushing |
| 270 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
