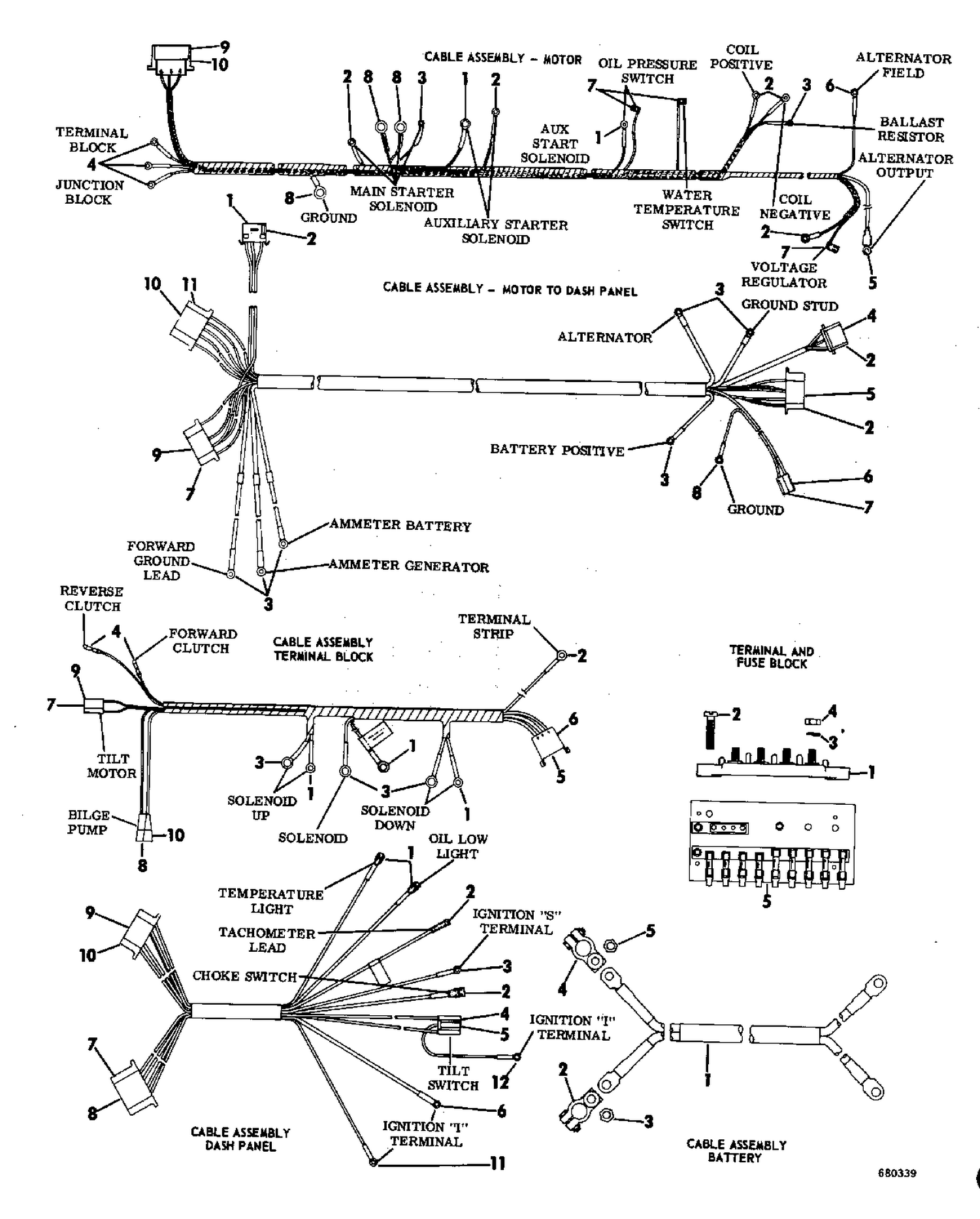

CABLE ASSEMBLY GROUP
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0203523 | RING TERMINAL |
| 1 | 0379792 | BATTER CABLE ASSEMBLY |
| 1 | 0379793 | TERMINAL BLOCK |
| 2 | 0304607 | PULSE PACK SCREW ASSY |
| 2 | 0385407 | BATTERY TERMINAL KIT This part replaces 0277708. |
| 4 | 0311740 | CONNECTOR |
| 4 | 0385407 | BATTERY TERMINAL KIT This part replaces 0277709. |
| 5 | 0311741 | CONECTOR |
| 6 | 0204040 | RING TERMINAL |
| 6 | 0311741 | CONECTOR |
| 6 | 0510471 | CONNECTOR |
| 7 | 0510465 | CONNECTOR,8 way |
| 7 | 0510469 | TAB |
| 8 | 0510473 | TAB |
| 9 | 0510471 | CONNECTOR |
| 9 | 0510474 | CONNECTOR |
| 10 | 0311740 | CONNECTOR |
| 10 | 0510469 | TAB |
| 10 | 0510472 | CONNECTOR |
| 10 | 0510475 | CONNECTOR |
| 11 | 0510473 | TAB |
| 0380392 | 0380392 | CABLE ASSEMBLY,Complete |
| 0380556 | 0380556 | CABLE ASSEMBLY,Complete |
| 0381517 | 0381517 | CABLE ASSEMBLY,Complete |
| 0381831 | 0381831 | CABLE ASSEMBLY,Complete |
