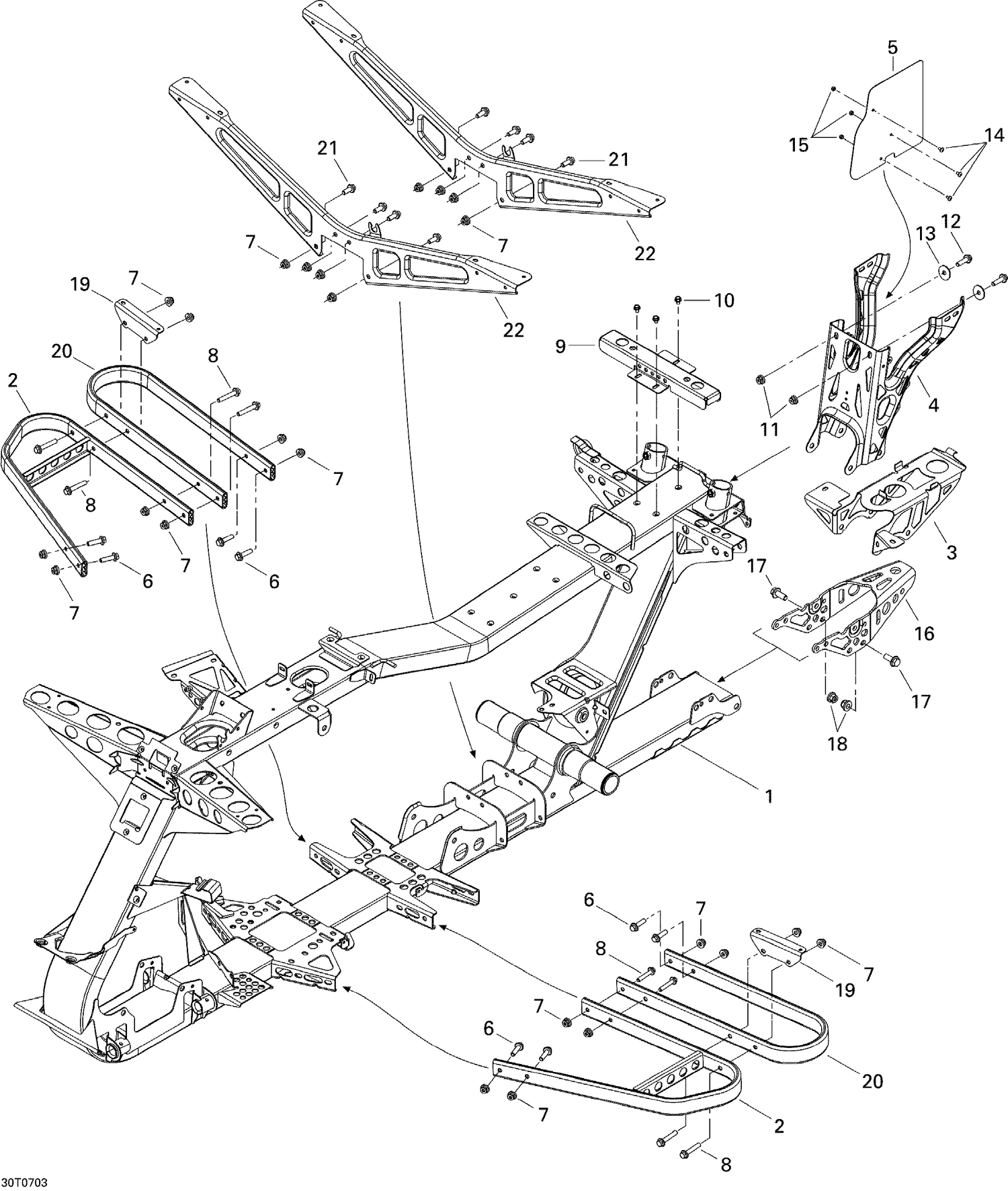

| Ref | Part Number | Description |
|---|
| 1 |
705202621 |
FRAME BLACK - Call your local BRP dealership This part replaces 705201265. |
| 2 |
705202081 |
OOTBOARD ASS'Y - Call your local BRP dealership This part replaces 705200872. |
| 3 |
705201942 |
Battery Support Base This part replaces 705201105. |
| 4 |
705203842 |
Rear Support, Black This part replaces 705201445. |
| 5 |
705202394 |
Heat Shield This part replaces 705200936. |
| 6 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 9 |
705201260 |
Seat Support |
| 10 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 12 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 13 |
224081301 |
Flat Washer |
| 14 |
250000127 |
Torx Screw M4 X 8 |
| 15 |
232541484 |
Elastic Stop Nut M4 |
| 16 |
705201112 |
TRAILER HOOK, BLACK - Call your local BRP dealership |
| 17 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 18 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 19 |
705202402 |
SUPPORT PLATE, BLACK - Call your local BRP dealership This part replaces 705201535. |
| 20 |
705201993 |
REAR FOOTREST - Call your local BRP dealership This part replaces 705200896. |
| 21 |
207682044 |
Hex. Flange Screw M8 X 20 |
