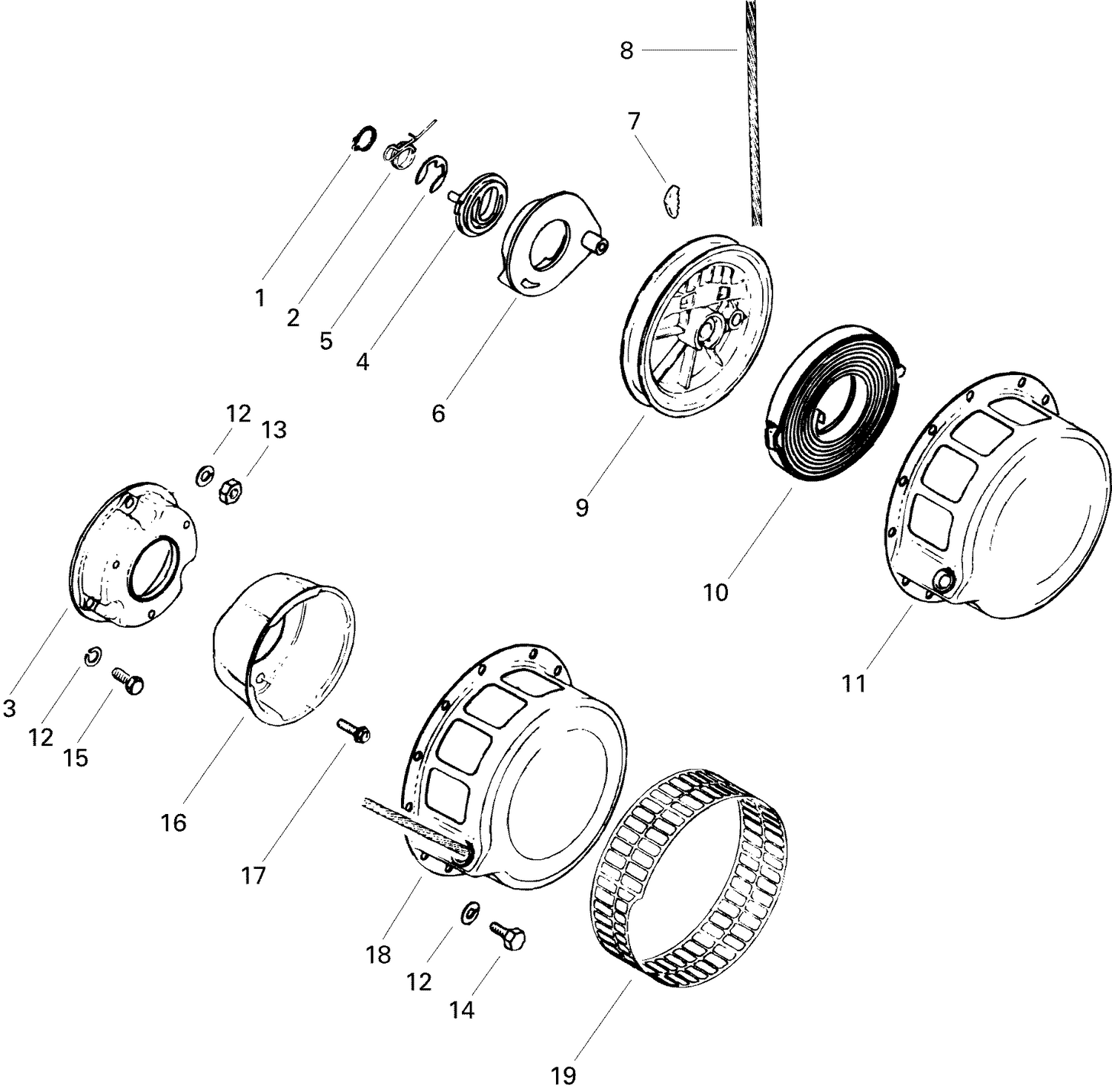

| Ref | Part Number | Description |
|---|
| 1 |
420945770 |
LOCK RING - Call your local BRP dealership |
| 2 |
420938986 |
Pawl Spring This part replaces 420938985. |
| 3 |
420852330 |
Pulley Spacer |
| 4 |
420852301 |
PAWL LOCK - Call your local BRP dealership |
| 5 |
420845300 |
CIRCLIP - Call your local BRP dealership |
| 6 |
420852296 |
Pawl This part replaces 420852290. |
| 7 |
420852070 |
Key Clamp |
| 8 |
219704403 |
Was 412500100 Rope-Starter |
| 9 |
420852283 |
Rope Sheave |
| 10 |
420939078 |
Rewind Spring |
| 11 |
420910138 |
Starter Housing |
| 12 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 13 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 14 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 15 |
Not |
Available As Spare Part - Hex. Screw M6 x 20 |
| 16 |
420852311 |
Starting Pulley |
| 17 |
420240385 |
TAPTITE SCREW M6 X 12 - Call your local BRP dealership |
| 18 |
420994783 |
Rewind Starter |
