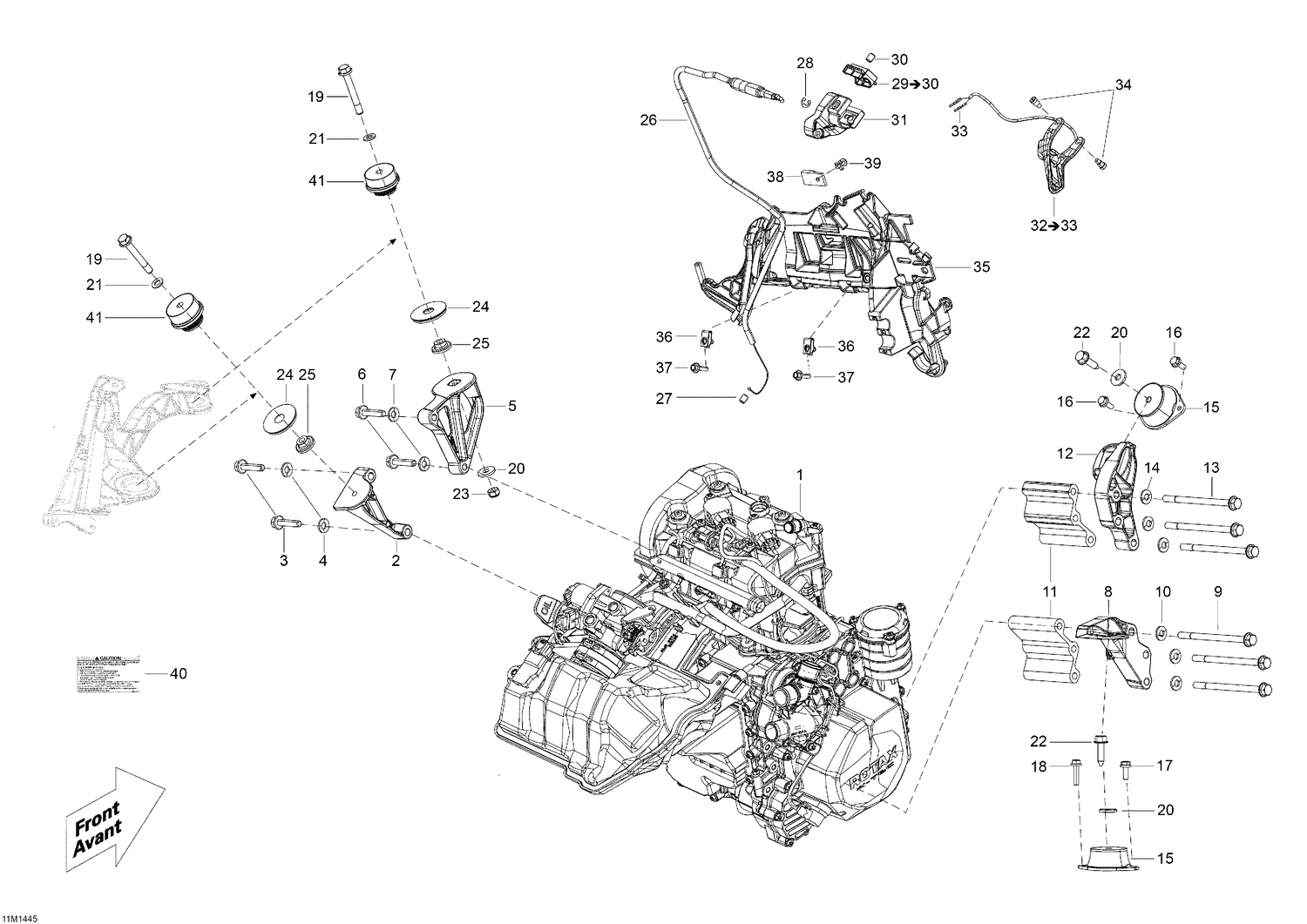

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 602 ACE |
| 2 |
512061139 |
Rear Support PTO This part replaces 512060660. |
| 4 |
234281474 |
Conical Spring Washer M8 |
| 5 |
512061140 |
Front Support PTO This part replaces 512060661. |
| 7 |
234281474 |
Conical Spring Washer M8 |
| 8 |
512061142 |
Rear Support MAG This part replaces 512060662. |
| 9 |
230582544 |
Hex. Flange Screw M8 X 125, Scotch Grip |
| 10 |
234281474 |
Conical Spring Washer M8 |
| 11 |
512060505 |
Shim |
| 12 |
512060663 |
Front Support, MAG |
| 13 |
230582544 |
Hex. Flange Screw M8 X 125, Scotch Grip |
| 14 |
234281474 |
Conical Spring Washer M8 |
| 15 |
512060729 |
Rubber Mount |
| 16 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 17 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 19 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 20 |
503183200 |
Yellow, Washer |
| 21 |
250200008 |
Flat Washer With Teflon 8 mm |
| 22 |
250000257 |
Cone Screw, M8 X 30 |
| 23 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 24 |
512061203 |
Stopper This part replaces 512060647. |
| 25 |
512060285 |
Spacer |
| 26 |
512060607 |
Throttle Cable |
| 27 |
707000434 |
Cable Guide |
| 28 |
414274500 |
Circlip |
| 30 |
414440800 |
Socket Set Screw M8 X 10 |
| 31 |
512060860 |
Lower Housing |
| 33 |
515175232 |
Male Terminal |
| 34 |
732601143 |
Flange Screw |
| 35 |
512060509 |
MODULE SUPPORT - Call your local BRP dealership |
| 36 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 37 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 38 |
270000141 |
Clip |
| 39 |
293150027 |
Avdel Rivet |
| 40 |
516005521 |
Caution Decal, Oil Level |
