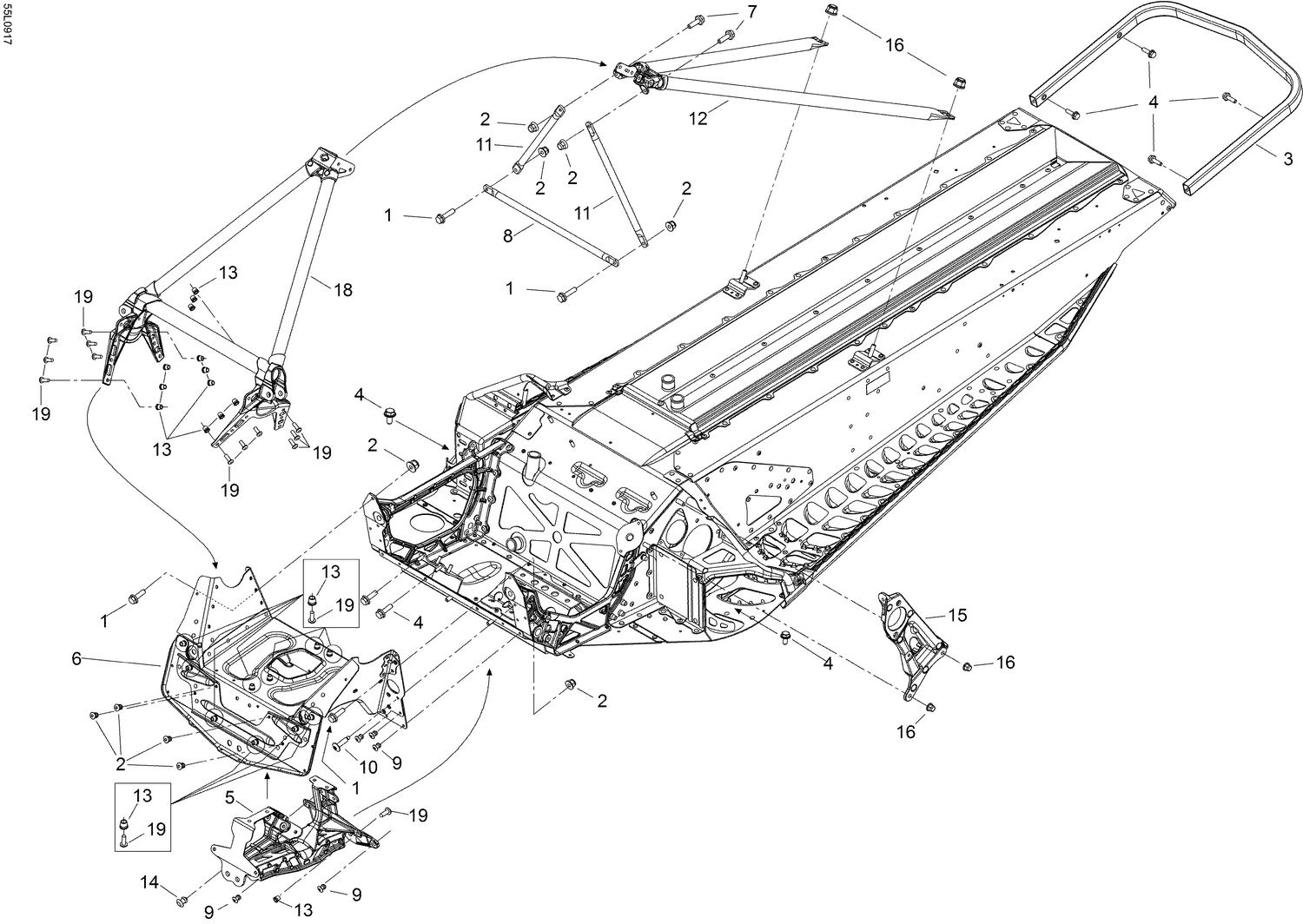

| Ref | Part Number | Description |
|---|
| 1 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3 |
518325578 |
CLEAR REAR BUMPER, 146 - Call your local BRP dealership |
| 4 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 5 |
518327487 |
Support This part replaces 518325925. |
| 6 |
518328320 |
Module S *Cross Member This part replaces 518325924. |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 8 |
518325115 |
Center Column Support |
| 9 |
293150144 |
Stavex Rivet |
| 10 |
210262050 |
Forming Screw M6 x 20 This part replaces 210262080. |
| 11 |
518325114 |
Upper Column Support |
| 12 |
518325700 |
Rear Member |
| 13 |
Not |
Available As Spare Part - Huck collar |
| 14 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 15 |
518328346 |
Pulley Support This part replaces 518325934. |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 17 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 18 |
518326970 |
Front Member This part replaces 518325929. |
