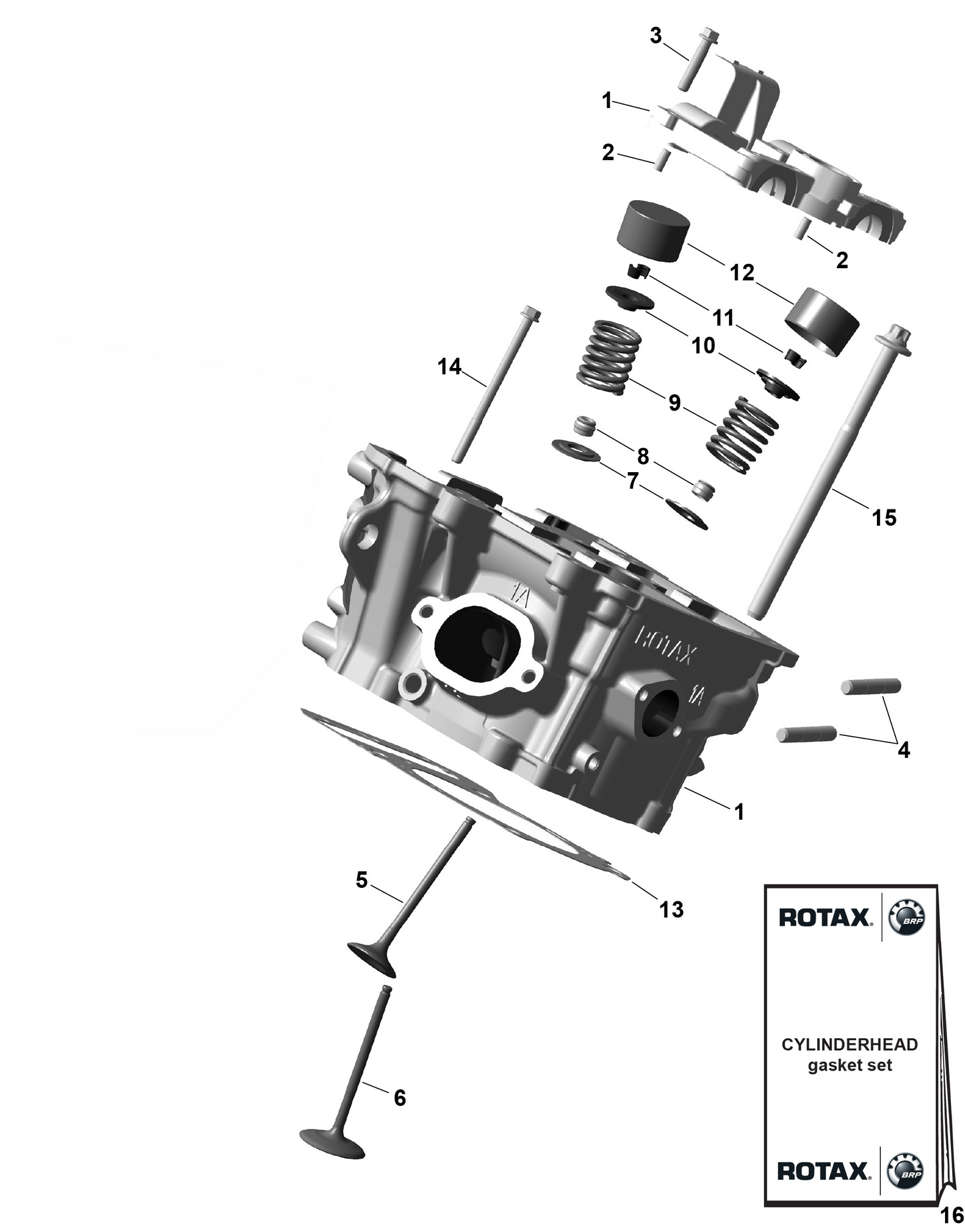

01- ROTAX - Cylinder Head
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420413569 | NEEDS DESCRIPTION This part replaces 420413565. |
| 2 | 420232710 | NEEDLE PIN - Call your local BRP dealership |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 420941014 | Stud M8 x 26 |
| 5 | 420254421 | Intake Valve 36.5 MM |
| 6 | 420254425 | Exhaust Valve 31 MM |
| 7 | 420427350 | Spring Seat |
| 9 | 420939585 | Valve Spring |
| 10 | 420855191 | Valve Spring Retainer |
| 11 | 420254602 | Valve Cotter |
| 12 | 420954201 | Valve Lifter Bucket 34/3.02 |
| 12 | 420954202 | Valve Lifter Bucket 34/3.04 |
| 12 | 420954203 | Valve Lifter Bucket 34/3.06 |
| 12 | 420954204 | Valve Lifter Bucket 34/3.08 |
| 12 | 420954205 | Valve Lifter Bucket 34/3.10 |
| 12 | 420954206 | Valve Lifter Bucket 34/3.12 |
| 12 | 420954207 | Valve Lifter Bucket 34/3.14 |
| 12 | 420954208 | Valve Lifter Bucket 34/3.16 |
| 12 | 420954209 | Valve Lifter Bucket 34/3.18 |
| 12 | 420954210 | Valve Lifter Bucket 34/3.20 |
| 12 | 420954211 | Valve Lifter Bucket 34/3.22 |
| 12 | 420954212 | Valve Lifter Bucket 34/3.24 |
| 12 | 420954213 | Valve Lifter Bucket 34/3.26 |
| 12 | 420954214 | Valve Lifter Bucket 34/3.28 |
| 12 | 420954215 | Valve Lifter Bucket 34/3.30 |
| 12 | 420954216 | Valve Lifter Bucket 34/3.32 |
| 12 | 420954217 | Valve Lifter Bucket 34/3.34 |
| 12 | 420954218 | Valve Lifter Bucket 34/3.36 |
| 12 | 420954219 | Valve Lifter Bucket 34/3.38 |
| 12 | 420954220 | Valve Lifter Bucket 34/3.40 |
| 12 | 420954221 | Valve Lifter Bucket 34/3.42 |
| 12 | 420954222 | Valve Lifter Bucket 34/3.44 |
| 12 | 420954223 | Valve Lifter Bucket 34/3.46 |
| 12 | 420954224 | Valve Lifter Bucket 34/3.48 |
| 12 | 420954225 | Valve Lifter Bucket 34/3.50 |
| 14 | 420641228 | Torx Flange Screw M6 X 85 This part replaces 420440347. |
| 15 | 420441287 | Torx Screw M10 X 159 This part replaces 420441284. |
