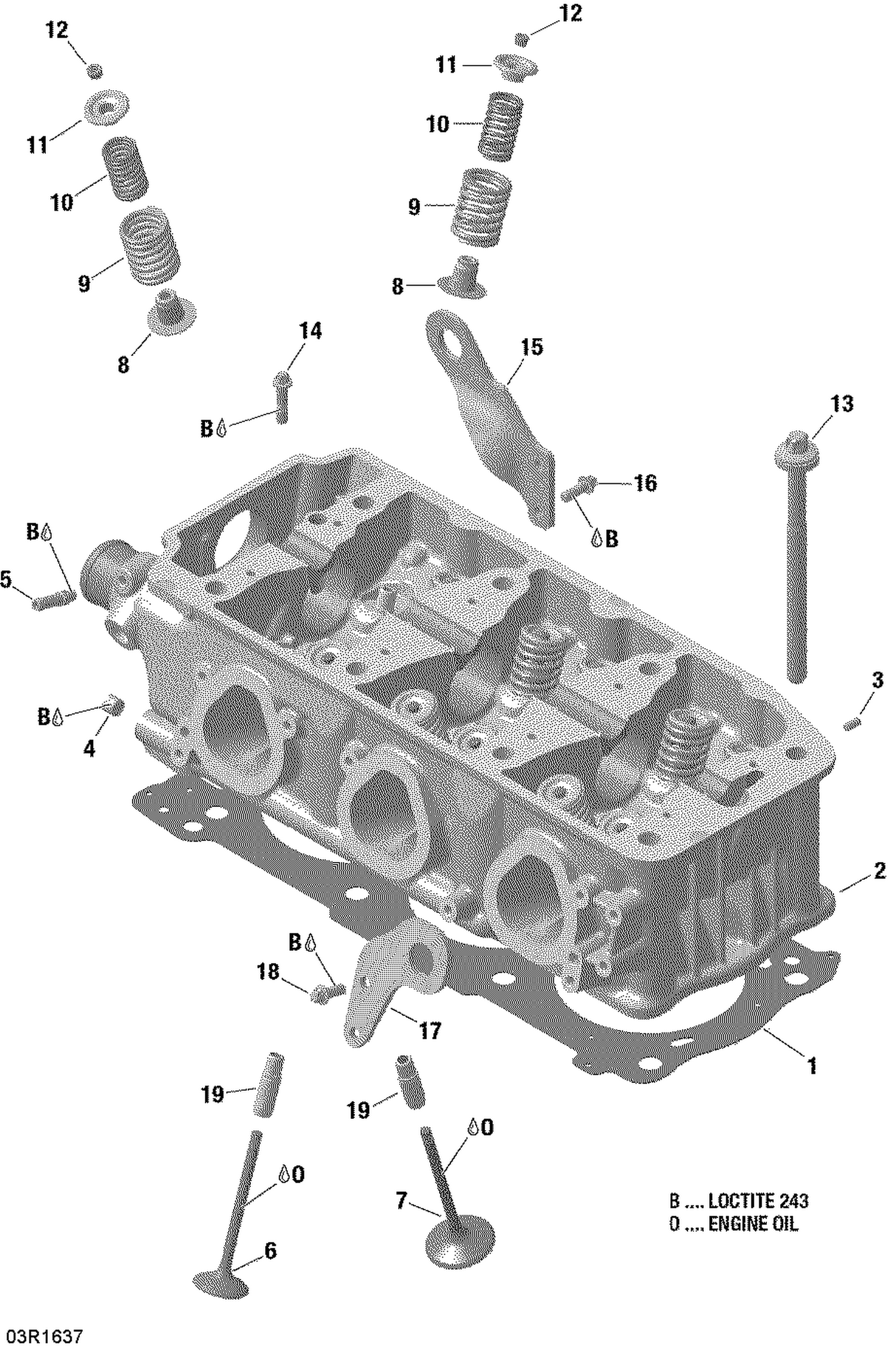

01- Cylinder Head - 300
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420950772 | Cylinder Head Gasket |
| 3 | 420929650 | Drive Pin 5 X 10 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420924724 | Hose Nipple |
| 6 | 420254682 | Exhaust Valve, 31 mm |
| 7 | 420253163 | Intake Valve 38MM This part replaces 420254294. |
| 8 | 420630202 | Valve Steam Seal |
| 10 | 420838280 | Valve Spring Inside |
| 11 | XXX | Not Available As Spare Parts |
| 12 | 420253645 | Valve Cotter |
| 13 | 420641115 | Torx Flange Screw M11 X 147 |
| 14 | 420641238 | Torx Flange Screw M6 X 25 |
| 15 | 420851618 | Transport Bracket PTO |
| 16 | 420641048 | Torx Flange Screw M6 X 16 |
| 17 | 420951382 | Transport Bracket |
| 18 | 420641048 | Torx Flange Screw M6 X 16 |
