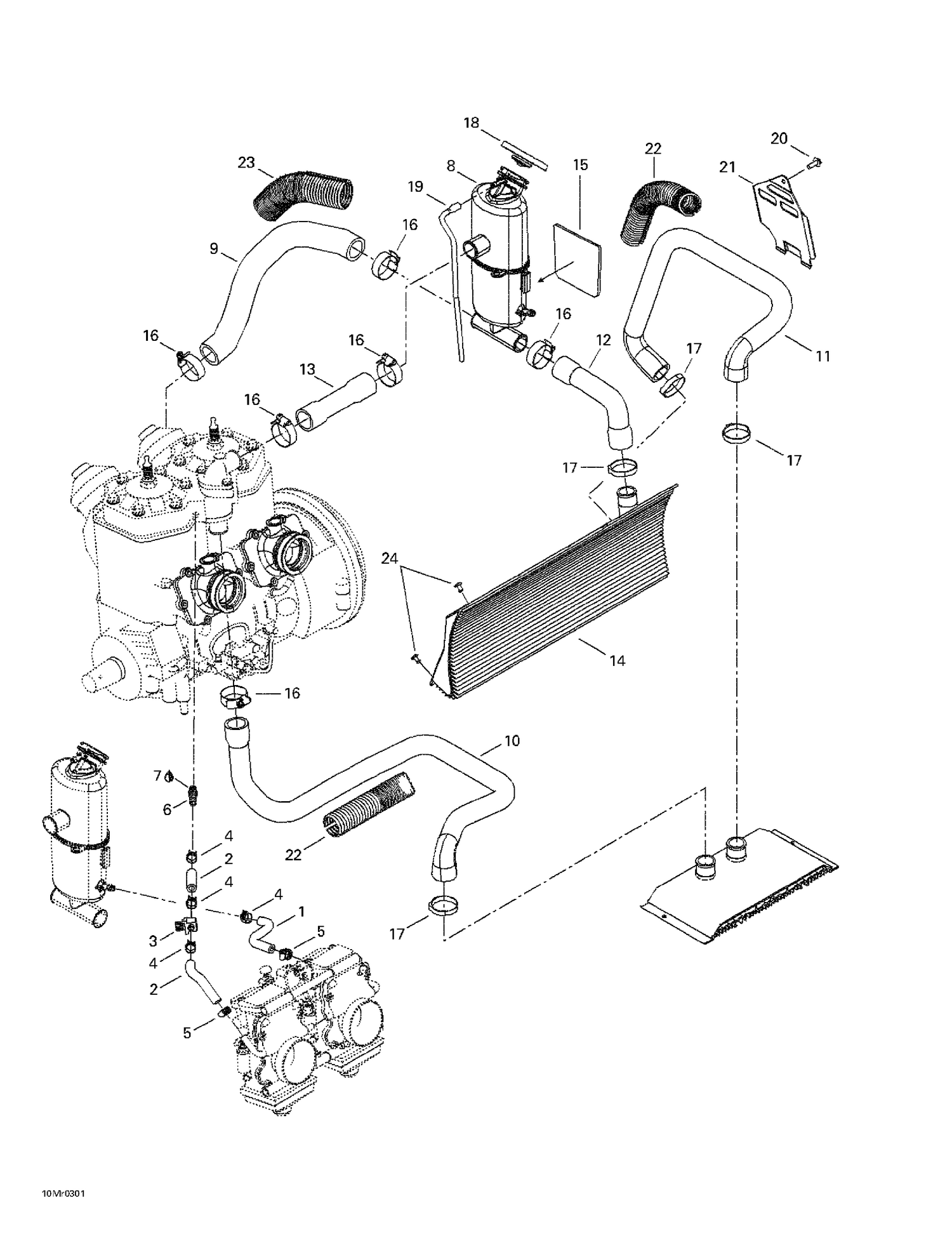

01- Cooling System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000171 | FORMED HOSE - Call your local BRP dealership |
| 2 | 509000093 | Hose 8 mm |
| 3 | 512059324 | Valve 5/16” |
| 4 | 414655700 | Spring Clamp |
| 5 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 6 | 293710082 | STRAIGHT FITTING - Call your local BRP dealership |
| 7 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 8 | 509000408 | Coolant Tank This part replaces 509000157. |
| 9 | 509000135 | ENGINE INLET HOSE - Call your local BRP dealership |
| 10 | 509000158 | Engine Outlet Hose |
| 11 | 509000159 | Radiator Inlet Hose |
| 12 | 509000184 | RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 13 | 509000161 | Hose |
| 14 | 518323387 | Front Radiator |
| 15 | 509000190 | REFECTIVE SHEET - Call your local BRP dealership |
| 16 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 17 | 509000181 | Oetiker Gear Clamp |
| 18 | 509000187 | Pressure Cap |
| 19 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 20 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 21 | 509000163 | Deflector |
| 22 | 219704402 | Tubing 25 MM 1000MM Long |
| 23 | 219704413 | Was 415084700 Protective Shield |
