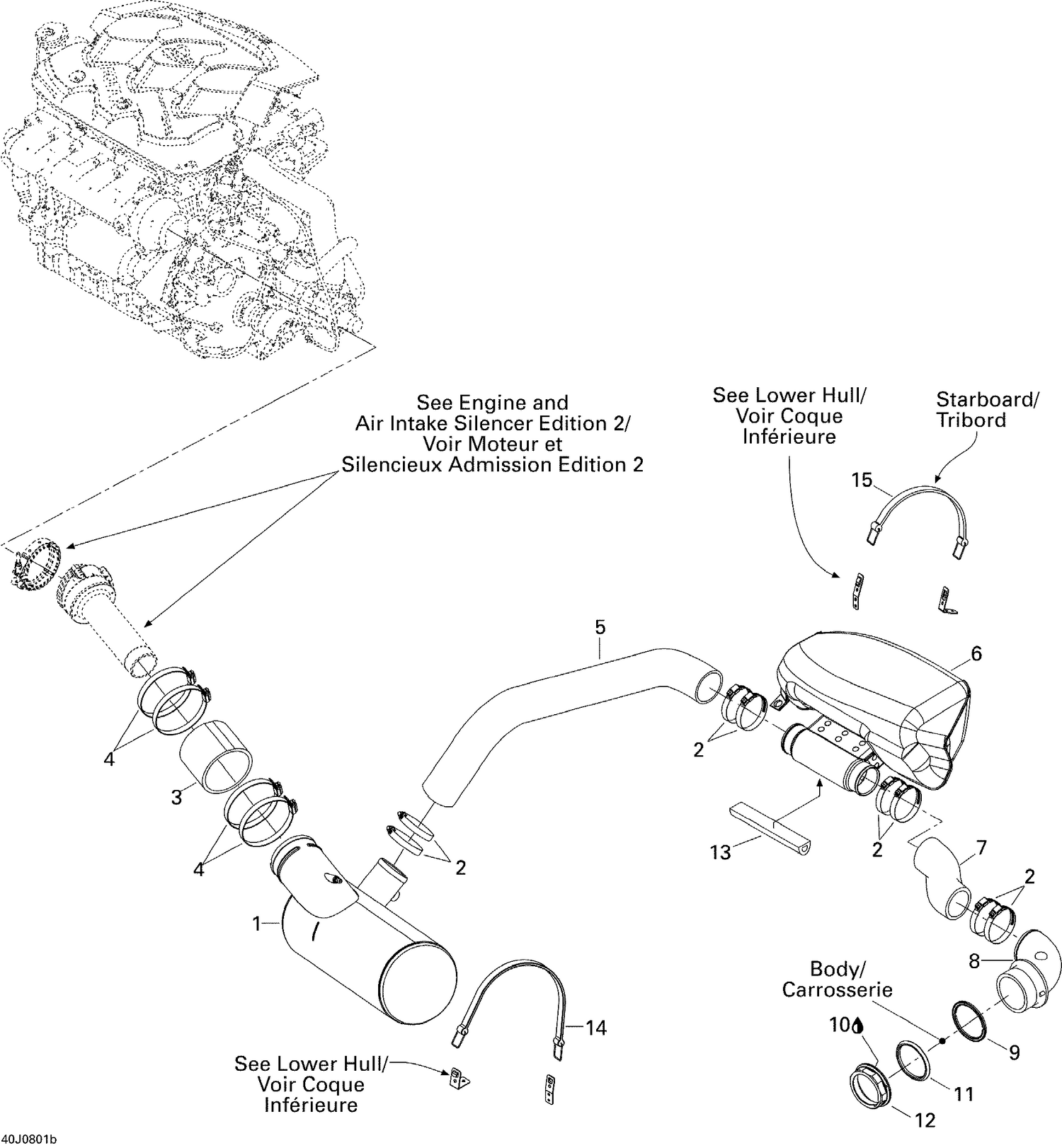

| Ref | Part Number | Description |
|---|
| 1 |
274001350 |
MUFFLER_EXHAUST - Call your local BRP dealership This part replaces 204340501. |
| 2 |
293650179 |
Tridon Clamp |
| 3 |
274001348 |
Hose |
| 4 |
293650054 |
Tridon Clamp |
| 5 |
204340436 |
EXHAUST HOSE - Call your local BRP dealership |
| 6 |
274001045 |
RH Resonator |
| 7 |
0461589 |
Exhaust Hose This part replaces 204340437. |
| 8 |
274001389 |
Exhaust Hose, Outlet This part replaces 204340131. |
| 9 |
293250041 |
GASKET - Call your local BRP dealership |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 12 |
274000224 |
Nut 72 mm |
| 13 |
219704368 |
Seal Tray 1000Mm Long |
| 14 |
293850097 |
Retainer Strap |
