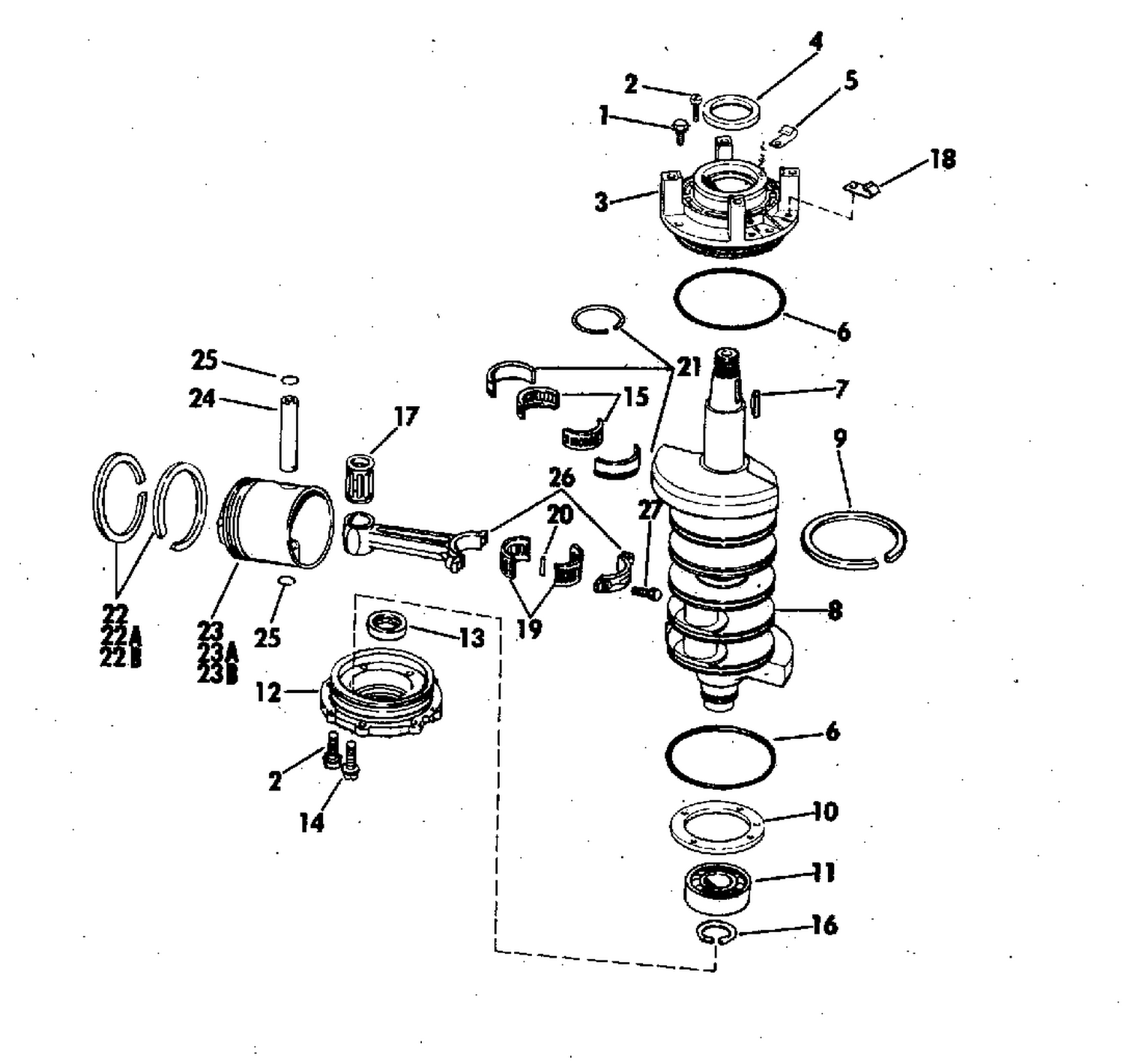

| Ref | Part Number | Description |
|---|
| 1 |
0307028 |
SCREW |
| 2 |
0309924 |
SCREW |
| 3 |
0387432 |
CRANKCASE HEAD BRG. ASSY. This part replaces 0385504. |
| 5 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 6 |
0305123 |
O RING |
| 8 |
0385534 |
CRANKSHAFT ASSY |
| 9 |
0310044 |
SEAL RING (1 STRIPE) |
| 9 |
0310045 |
SEAL RING (2 STRIPES) |
| 9 |
0310046 |
SEAL RING (3 STRIPES) |
| 10 |
0317762 |
PALTE,Lower bearing |
| 11 |
0385503 |
BEARING , Ball |
| 12 |
0396610 |
CRANKCASE HEAD ASSY. This part replaces 0385502. |
| 14 |
0317763 |
SCREW & SEAL, Plate |
| 15 |
0378252 |
BEARING ASSY., Needle |
| 16 |
0308213 |
RETAINING RING |
| 17 |
0395627 |
BEARING & RETAINER This part replaces 0385482. |
| 18 |
0310441 |
CLAMP, CPS lead |
| 19 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 20 |
0378515 |
BEARING SET, Needle,connecting rod |
| 21 |
0310433 |
SLEEVE |
| 22 |
0394930 |
RING SET, Standard This part replaces 0385661. |
| 22A |
0439001 |
RING SET, 0.020 in. O.S. This part replaces 0385662. |
| 22B |
0396504 |
RING SET, .030 O.S This part replaces 0385663. |
| 23 |
0385477 |
PISTON, Std |
| 23A |
0385569 |
PISTON, .020 O.S. |
| 23B |
0385570 |
PISTON, .030 o.s. |
| 24 |
0327861 |
Wrist Pin This part replaces 0317818. |
| 25 |
0317831 |
Circlip |
| 26 |
0385510 |
CONNECTING ROD ASSEMBLY |
