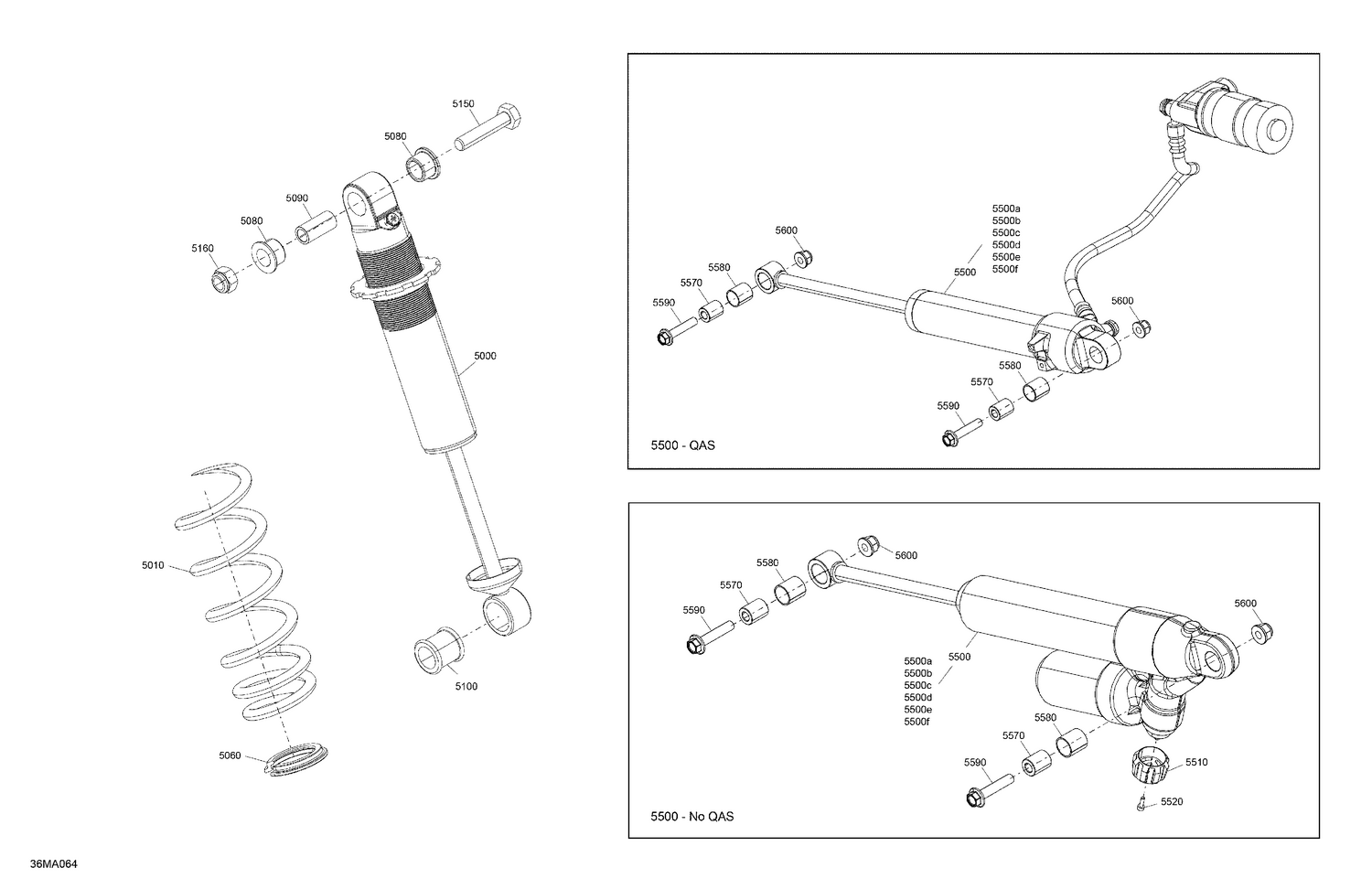

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503195275 | Central Shock |
| 5010 | 503195855 | Spring |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5150 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5500a | 415093807 | O-Ring |
| 5500b | 415093806 | Piston Ring |
| 5500c | 505070398 | Air Valve |
| 5500d | 505070399 | Screw |
| 5500e | 505070400 | O-Ring |
| 5500f | 415093804 | O-Ring |
| 5570 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
