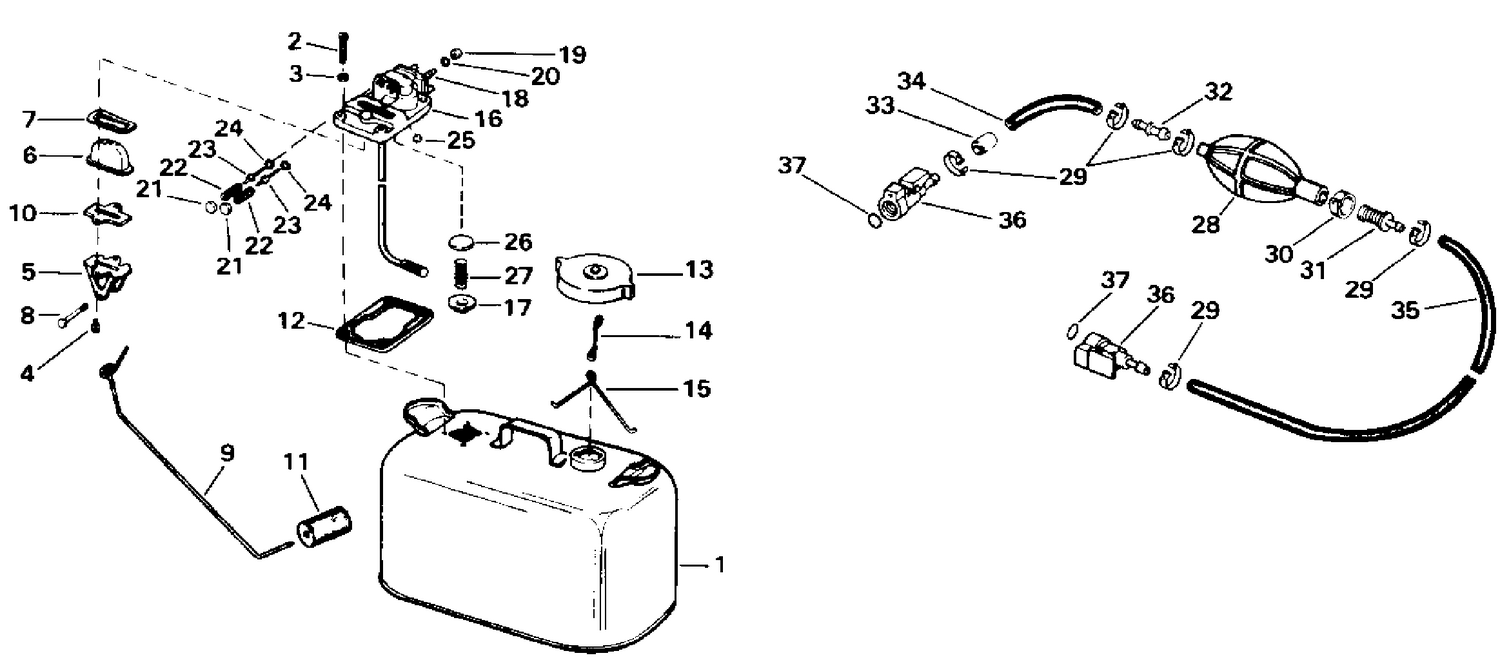

| Ref | Part Number | Description |
|---|
| 1 |
5008623 |
FUEL TANK This part replaces 0392909. |
| 2 |
0304888 |
SCREW |
| 4 |
0310849 |
HOUSING ASSY., Valve |
| 5 |
0312191 |
SCREW, Indicator support |
| 6 |
0312190 |
LENS |
| 7 |
0332505 |
SEAL This part replaces 0312192. |
| 9 |
0398459 |
FLOAT & INDICATOR This part replaces 0310845. |
| 10 |
0312193 |
GASKET |
| 12 |
0125530 |
GASKET, Housing to tank This part replaces 0310984. |
| 13 |
0388938 |
CAP ASSY., Fuel |
| 16 |
0398409 |
HOUSING This part replaces 0392935. |
| 20 |
0332488 |
RING, Quad This part replaces 0307858. |
| 33 |
0322695 |
SLEEVE, Hose |
| 0320107 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 0386940 |
5008609 |
FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0386940. |
| 0393535 |
5008609 |
FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0393535. |
