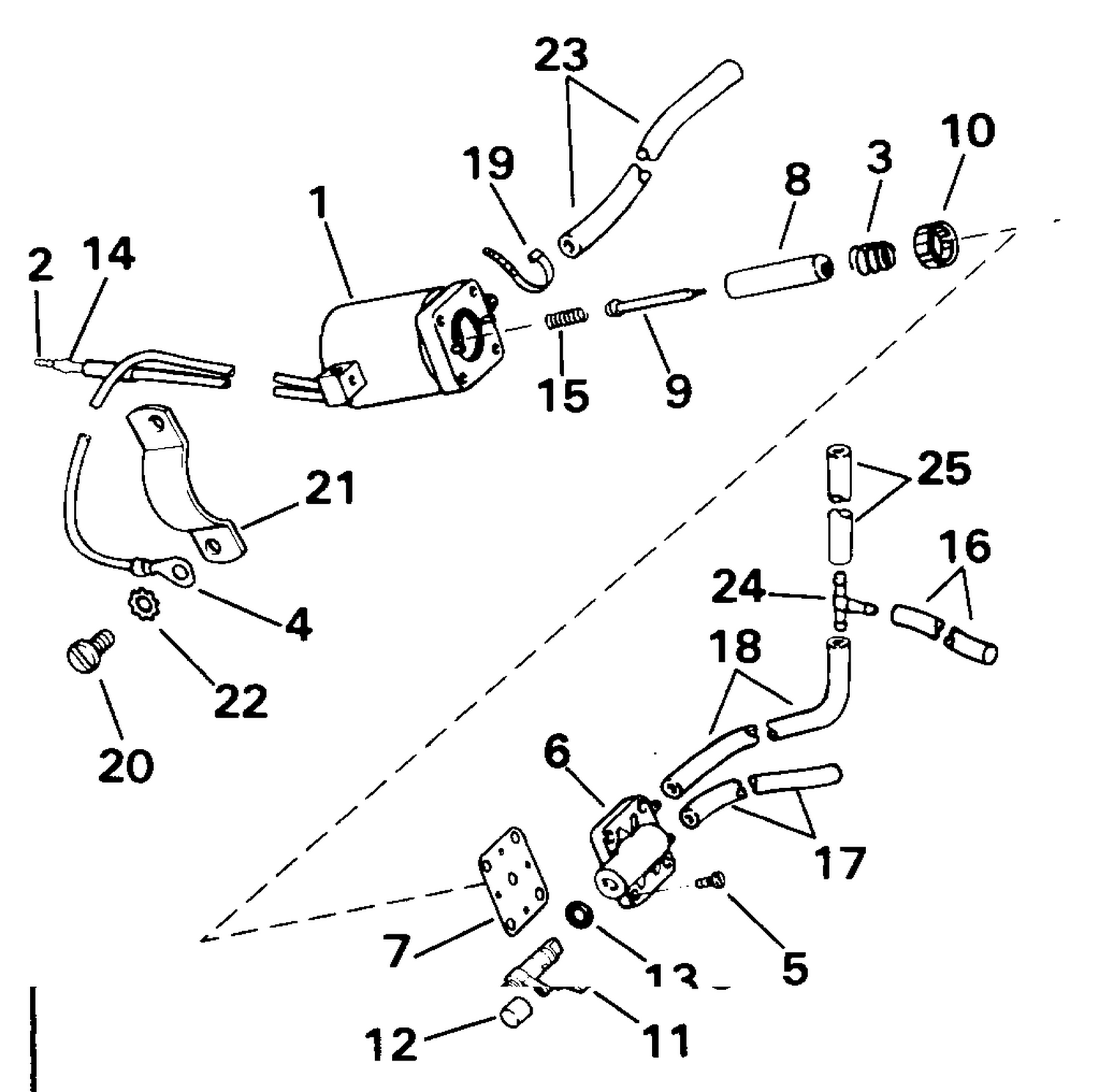

ELECTRIC PRIMER SYSTEM LATE PRODUCTION - 70 MODELS ONLY
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0434762. |
| 6 | 0511807 | COVER&GASKET AY |
| 7 | 0333448 | GASKET |
| 16 | HOSE, | Tee to lower carb. 6 in. (152mm) |
| 17 | HOSE, | Primer to upper carb. 5 in. (127mm) |
| 18 | 0333387 | FLEXIBLE, soupape de retenue vers raccord inférieur |
| 21 | 0330153 | CLAMP, Water valve |
| 23 | HOSE, | Primer to fuel tee, 6 in. (152mm) |
| 24 | 0325569 | T, amorçage |
