Parts Catalog

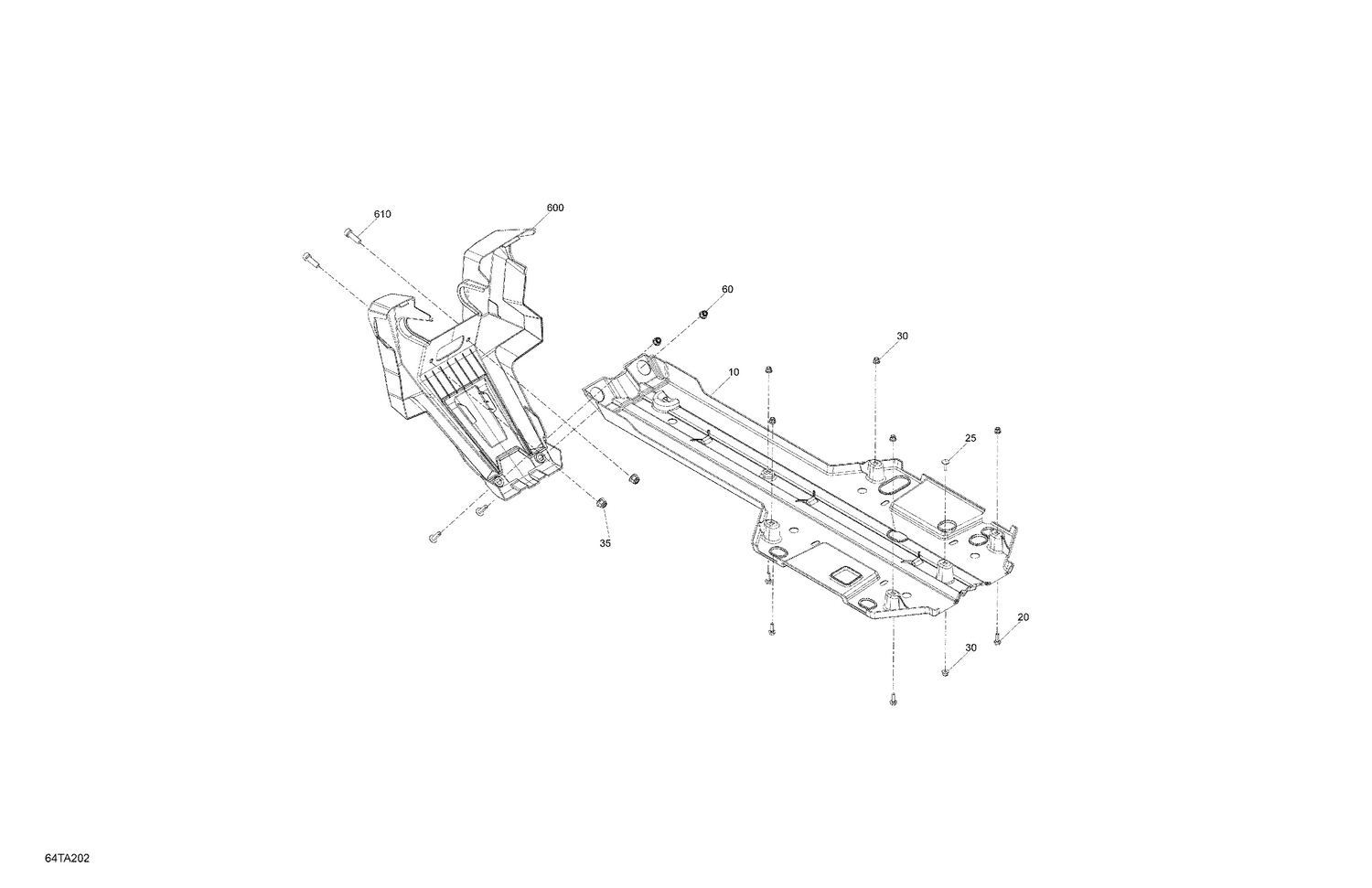

07- Body - Skid Plate

Parts (7)

Ref	Part Number	Description
10	715002374	Protective Plate Kit
20	207662054	Hex. Flange Screw M6 X 20
25	207762044	Carriage Bolt M6 X 20
30	233261434	Flange Elastic Nut M6
35	233201434	Hex. Flange Elastic Nut M10
60	233281434	Hex. Flange Elastic Nut M8
600	705006299	Front Guard Plate
