09- Body Front and Accessories

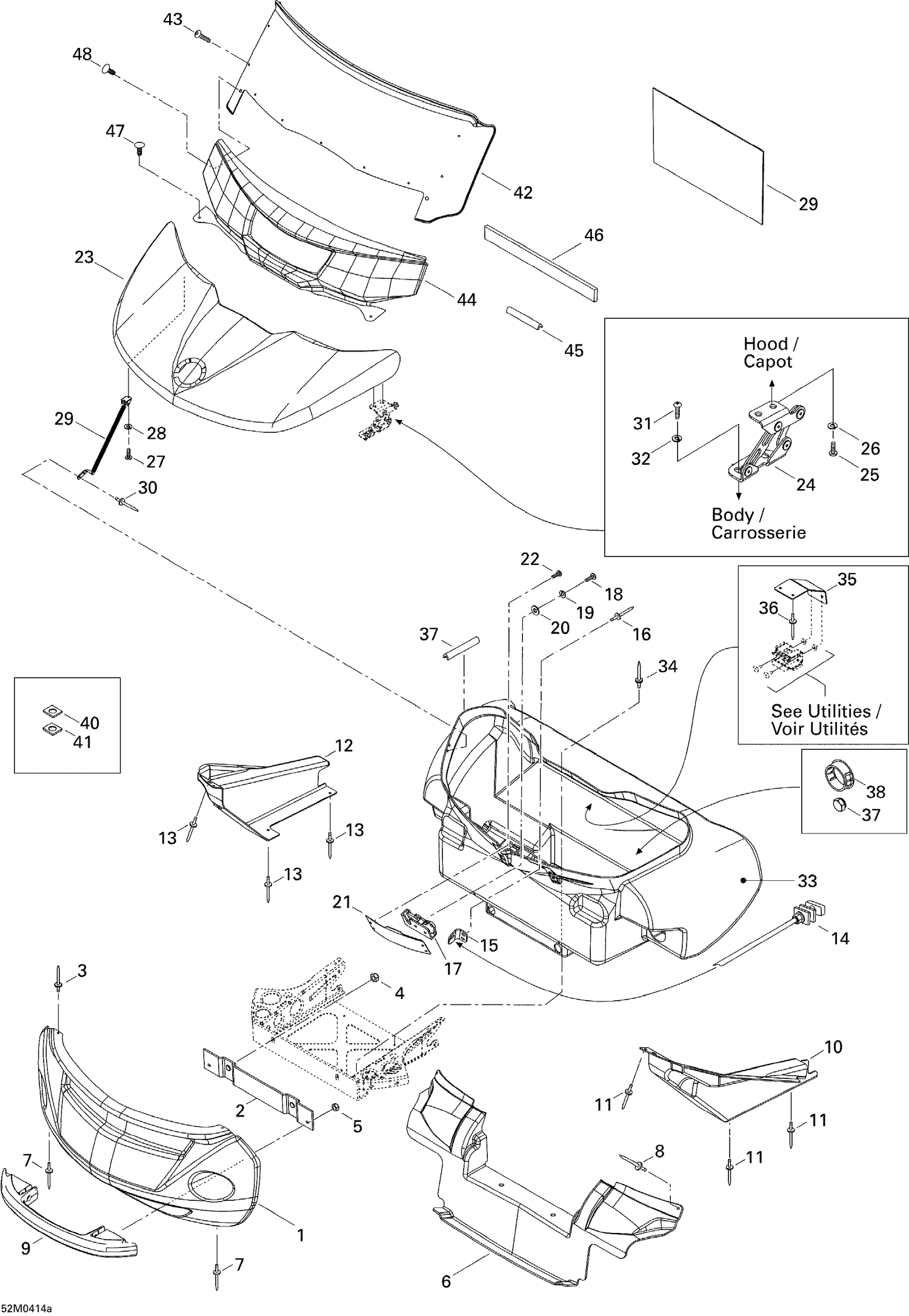

09- Body Front and Accessories

Parts (50)

RefPart NumberDescription
1 517302869 Hull
2 517303200 Bumper Insert
3 293150065 RIVET - Call your local BRP dealership
4 233281414 Hex. Flange Elastic Nut M8
5 232561414 Elastic Stop Nut M6
6 517303119 Bottom Pan Panel
7 293150065 RIVET - Call your local BRP dealership
8 293150104 Pop Rivet 3/16"
9 517302987 Front Bumper
10 517303001 Front Moulding LH
11 390406500 Pop Rivet 3/16"
12 517303002 Front Moulding RH
13 390406500 Pop Rivet 3/16"
14 517303192 Hood Cable
15 517303252 Cable Support
16 293150102 Rivet 3/16"
17 517302872 Latch Ass'y RH
18 250000185 SOCKET SCREW 1/4-20 X 1 - Call your local BRP dealership
19 250200042 Lock Washer 1/4
20 250200043 Flat Washer 1/4
21 517303218 Latch Guard
22 211000088 SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership
23 517302875 Hood
24 517302877 Hinge Ass'y LH
25 205460860 Socket Screw M6 X 8
26 234161601 Lock Washer Helical M6
27 205440660 Socket Screw M4 X 6
28 234141601 Lock Washer 4 mm
29 204000071 SPRING SEAT - Call your local BRP dealership
30 293150108 Pop Rivet 3/16” This part replaces 293150108.
31 250000437 Stainless, Socket Screw, M6X16 S.Grip This part replaces 205461660.
32 234161601 Lock Washer Helical M6
33 517302879 Storage Tray
34 293150108 Pop Rivet 3/16” This part replaces 293150108.
35 517303431 Storage Tray Reinforcement
36 293150104 Pop Rivet 3/16"
37 517303315 Seal
38 517303256 Plug 2 1/2 "
39 291000279 Black Plug
40 517303258 Rubber Spacer 2 mm
41 517303259 Rubber Spacer 5 mm
42 517303027 Windshield
43 211000088 SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership
44 517302880 Headlamp Moulding
45 517303284 Seal
46 517303427 Headlamp Moulding Foam
47 517303276 GRAY DART - Call your local BRP dealership
48 293730014 Black Dart
517302961 Charnière Ass. DR 517302961
517302961 Hinge Ass'y RH 517302961
