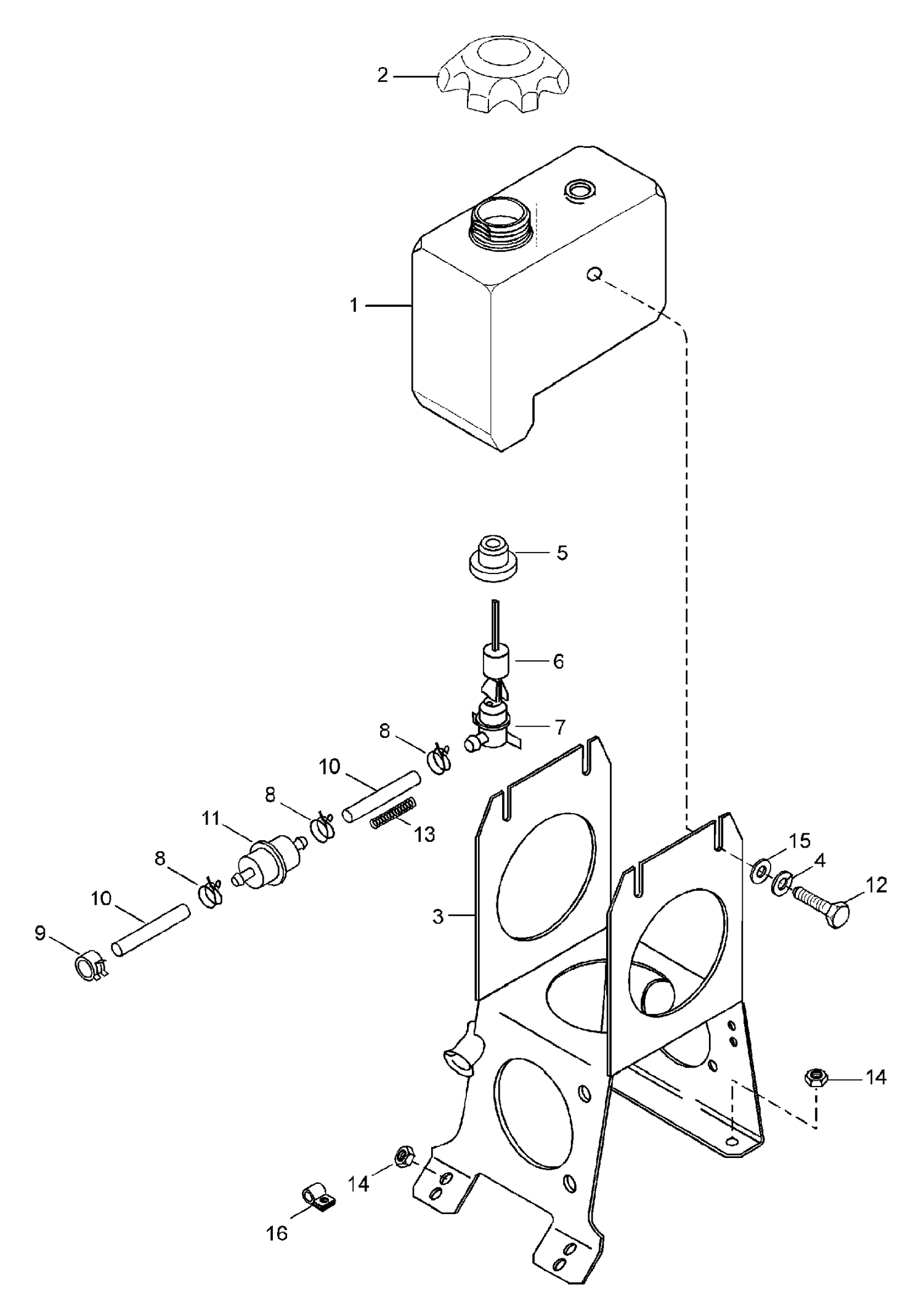

01- Oil Tank
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572091600 | Oil tank, 2,5 l |
| 2 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 3 | 5344677 | Support |
| 4 | 20052 | Lock washer |
| 5 | 570023000 | Grommet |
| 6 | 414681900 | Float for sensor |
| 7 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 8 | 27119F | Spring clip |
| 9 | 414420700 | Universal Spring Clamp |
| 10 | 39046 | Hose, 11/8 m |
| 11 | 414536500 | Oil filter |
| 12 | 40114 | Screw M6x10 |
| 13 | 25005 | Spring |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 15 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
