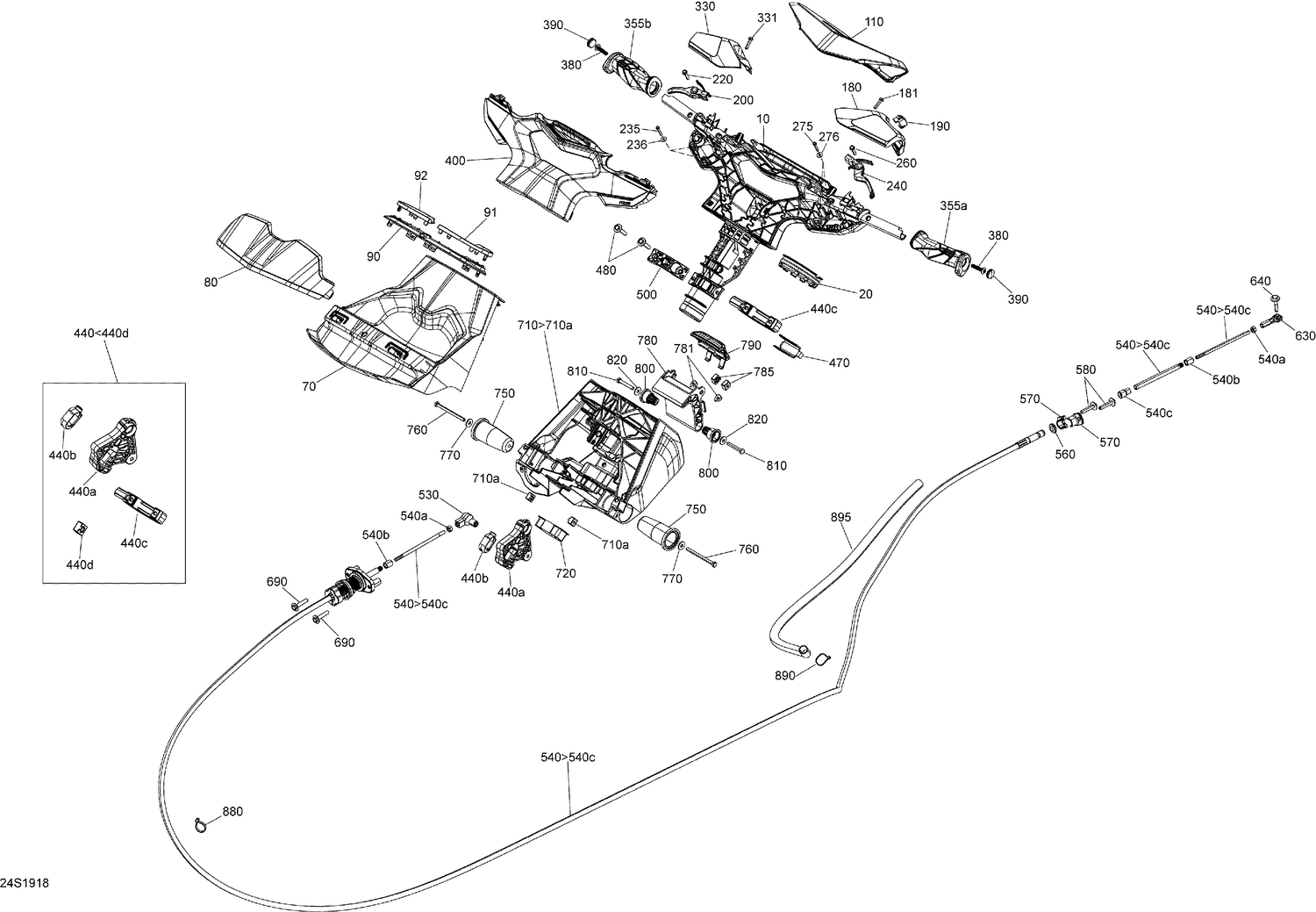

| Ref | Part Number | Description |
|---|
| 10 |
277001979 |
Steering Column |
| 20 |
277001874 |
Wear Ring |
| 70 |
277001980 |
Cluster Support |
| 80 |
277001981 |
Deep Black, Cluster Support Cover |
| 90 |
705011286 |
Speed Indicator Bezel |
| 91 |
705012349 |
Deep Black, LH Trim Gauge |
| 92 |
705012351 |
Deep Black, RH Trim Gauge |
| 110 |
277001988 |
Deep Black, Steering Pad |
| 180 |
277002233 |
LH Cover This part replaces 277001983. |
| 181 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 190 |
277002327 |
Red Button Switch This part replaces 277002052. |
| 200 |
277001944 |
Throttle Handle |
| 220 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 260 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 330 |
277002235 |
RH Cover This part replaces 277002067. |
| 331 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 355a |
277001958 |
Deep Black, LH Handle Grip |
| 355b |
277001946 |
Deep Black, RH Handle Grip |
| 400 |
277001985 |
Steering Cover |
| 440d |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 470 |
277001654 |
Spacer |
| 480 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 500 |
277002085 |
C Clamp |
| 530 |
277002119 |
End Fitting Cable |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 540b |
277001582 |
Wiper Rod |
| 540c |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 630 |
277000775 |
Ball Joint |
| 640 |
250000970 |
Hex Sems Screw M6X35 |
| 690 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 710a |
269500252 |
M6 Nut Housing Ass'y |
| 720 |
277002318 |
Wear Ring This part replaces 277001741. |
| 750 |
277001605 |
Steering Support Pivot |
| 760 |
207168060 |
Hex Screw M6 X 80 |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 780 |
277001996 |
Adjustment Handle |
| 781 |
293830005 |
Rubber Bumper |
| 785 |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 790 |
277002010 |
Lock |
| 800 |
277001652 |
Pivot |
| 810 |
207064060 |
Hex. Screw M6 X 40 |
| 820 |
234062600 |
Flat Washer M6, Stainless |
| 880 |
414115200 |
Tie-Rap 180 mm |
| 890 |
414115200 |
Tie-Rap 180 mm |
