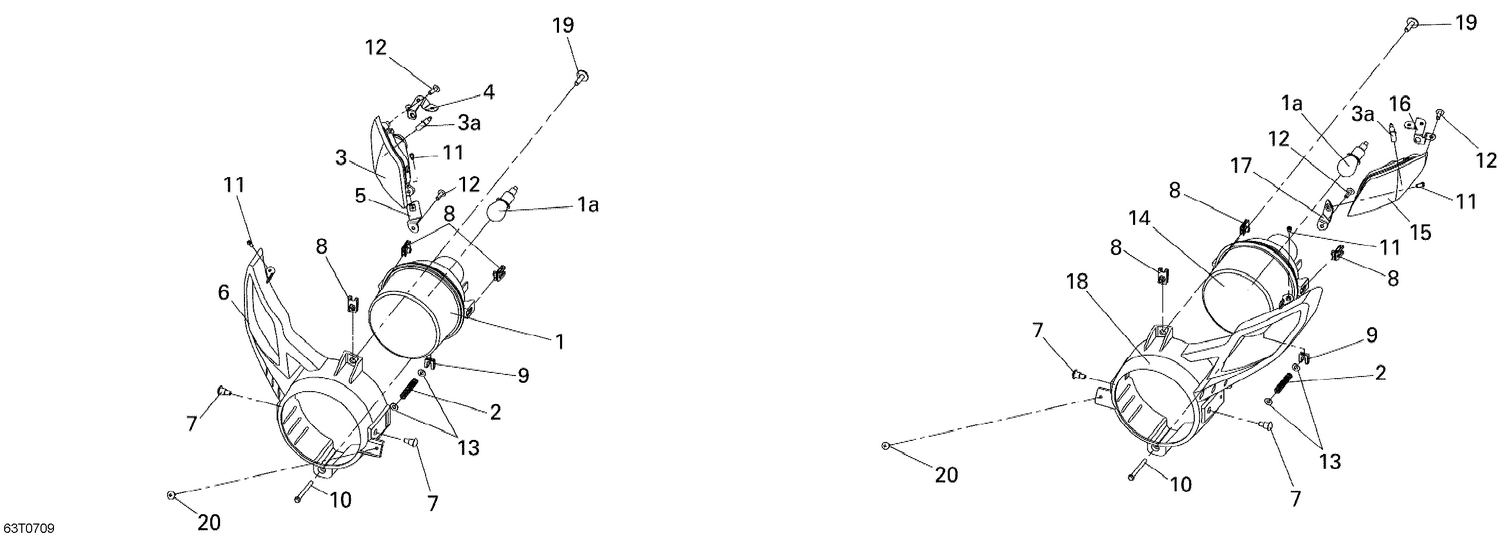

10- Headlights
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S33100RCA000 | HEAD LIGHT SHROUD - Call your local BRP dealership |
| 1a | S34901RCA000 | Headlight Bulb, 12v/35w |
| 2 | S33101RCA000 | Spring |
| 3 | S33400RCA000 | RH FRONT FLASHER ASS'Y - Call your local BRP dealership |
| 3a | S34905RB1000 | FLASHER BULB, 12V/21W - Call your local BRP dealership |
| 4 | S33401RCA000 | RH Front Flasher Support A |
| 5 | S33402RCA000 | RH Front Flasher Support B |
| 6 | S63100RCA000 | RH HEAD LIGHT SHROUD - Call your local BRP dealership |
| 7 | S90110RCA000 | Special Bolt 6 mm |
| 8 | S90301RCA000 | Clip Nut |
| 9 | S90303RCA000 | Clip Nut |
| 10 | S93500050500G | PAN SCREW M5 X 50 - Call your local BRP dealership |
| 11 | S938910501607 | Screw Washer M5 X 16 |
| 12 | S938910401007 | Washer Screw M4 X 10 |
| 13 | S9410105700 | Washer 5 mm |
| 14 | S33100RCA000 | HEAD LIGHT SHROUD - Call your local BRP dealership |
| 15 | S33450RCA000 | LH FRONT FLASHER ASS'Y - Call your local BRP dealership |
| 16 | S33451RCA000 | LH Front Flasher Support A |
| 17 | S33452RCA000 | LH Front Flasher Support B |
| 18 | S63150RCA900JF | Lh Head Light Shroud Bk-002C This part replaces S63150RCA000. |
| 19 | S934040602807 | Washer Bolt M6 X 25 |
