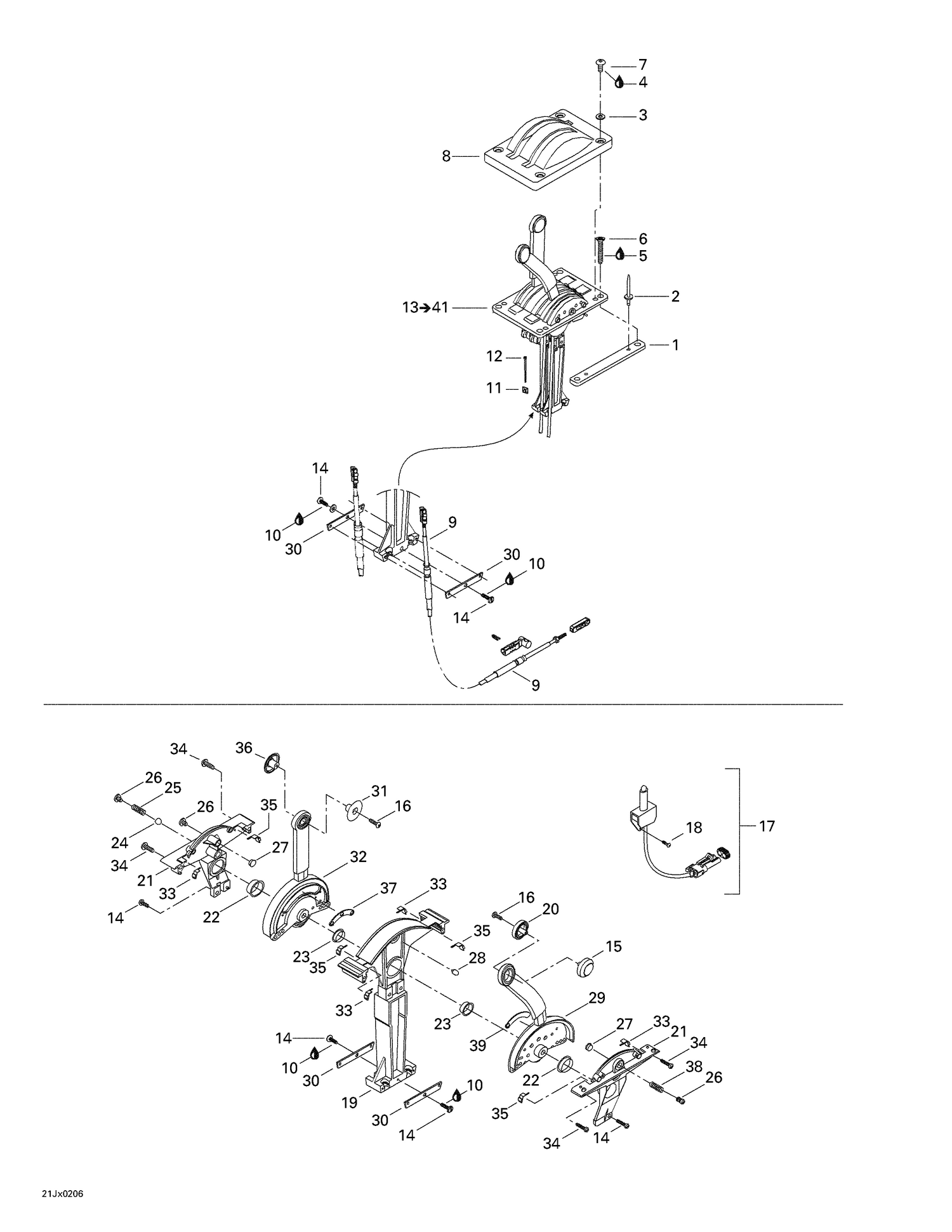

| Ref | Part Number | Description |
|---|
| 1 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 2 |
293150013 |
Pop Rivet 3/16" |
| 3 |
234040600 |
Flat Washer 4 mm |
| 4 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 5 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 6 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 7 |
208641060 |
Phillips Screw M4 X 10 |
| 8 |
204390123 |
Control Cover |
| 9 |
204390211 |
Throttle Cable |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 12 |
293750001 |
Tie Wrap 94 mm |
| 14 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 15 |
277000415 |
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership |
| 16 |
277000419 |
SCREW M3.5 X 25 - Call your local BRP dealership |
| 17 |
278001195 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership |
| 18 |
208630660 |
SCREW M3 X 6 - Call your local BRP dealership |
| 19 |
204390224 |
LH Frame |
| 20 |
277000416 |
HALF-THROTTLE HANDLE - Call your local BRP dealership |
| 21 |
277000703 |
Half-Case |
| 22 |
277000397 |
BUSHING - Call your local BRP dealership |
| 23 |
277000398 |
BUSHING - Call your local BRP dealership |
| 24 |
277000399 |
BALL - Call your local BRP dealership |
| 25 |
277000400 |
SPRING - Call your local BRP dealership |
| 26 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 27 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 28 |
277000404 |
BLOCKING PIVOT - Call your local BRP dealership |
| 29 |
277000655 |
THROTTLE LEVER - Call your local BRP dealership |
| 30 |
204390227 |
RETAINING PLATE - Call your local BRP dealership |
| 31 |
277000418 |
HALF-SHIFT HANDLE - Call your local BRP dealership |
| 32 |
277000414 |
SHIFT LEVER - Call your local BRP dealership |
| 33 |
277000423 |
RH Water Seal |
| 34 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 35 |
277000424 |
LH Water Seal |
| 36 |
277000417 |
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership |
| 37 |
277000408 |
Shift Lever Spacer |
| 38 |
277000401 |
SPRING - Call your local BRP dealership |
| 39 |
277000659 |
THROTTLE LEVER SPACER - Call your local BRP dealership |
| 40 |
204390226 |
CLEVIS L26 - Call your local BRP dealership |
