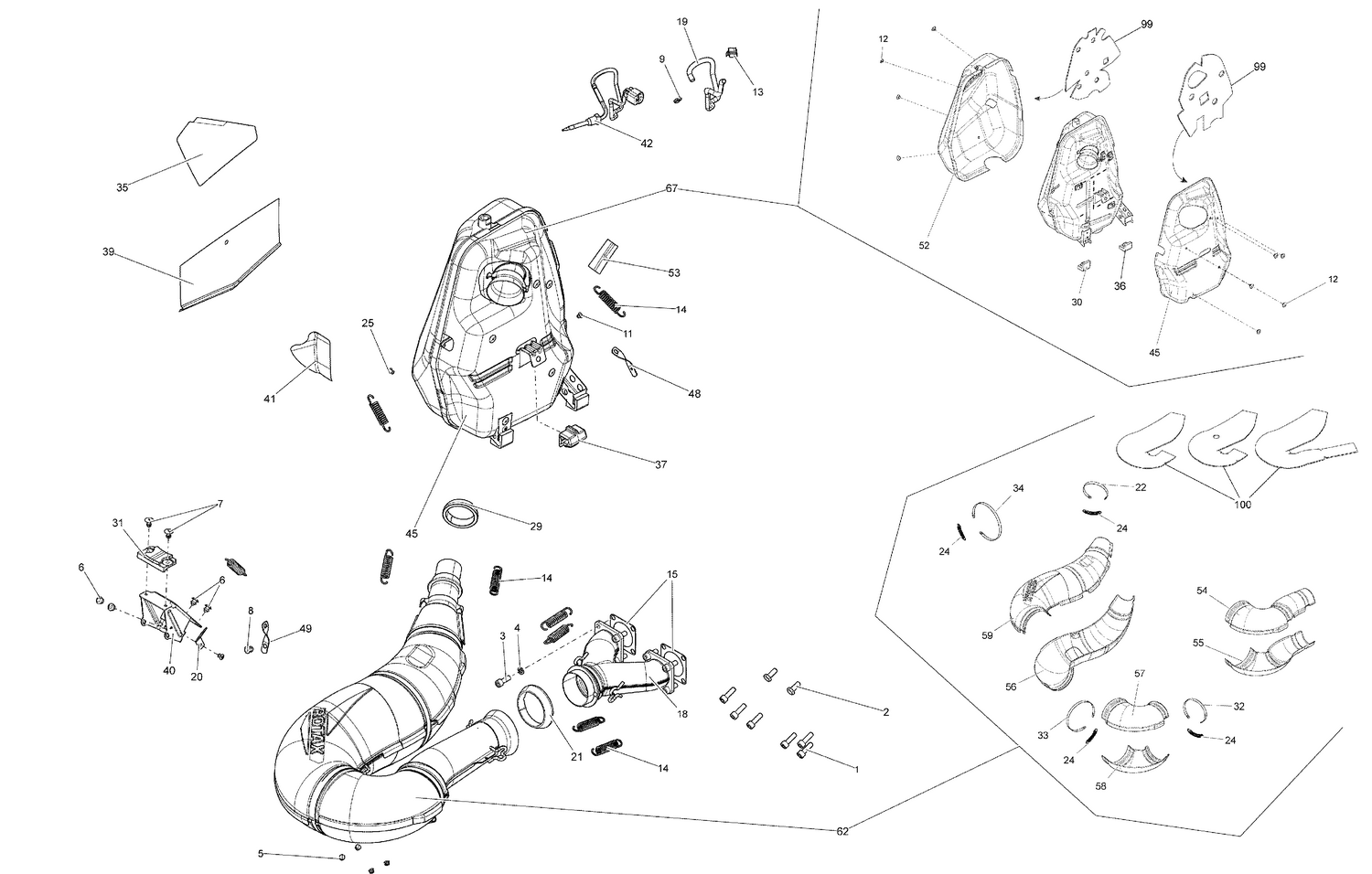

01- Exhaust System - All Models
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207182044 | Hex. Screw M8 X 20 |
| 3 | 250000414 | Socket Head Screw M8 X 22 |
| 5 | 293150091 | Henrob Rivet |
| 6 | 293150096 | Hemlock Rivet, 6.5 mm |
| 7 | 293150103 | Pop Rivet 3/16" |
| 8 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 9 | 293750001 | Tie Wrap 94 mm |
| 11 | 390909200 | Avex Rivet |
| 12 | 390910000 | Pop Rivet 3/16” |
| 13 | 414227300 | Clip |
| 14 | 415107100 | Spring |
| 19 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 20 | 514053393 | Spring Bracket |
| 21 | 514053487 | Exhaust Gasket |
| 22 | 514053499 | Retaining Strap |
| 24 | 514053643 | Spring |
| 25 | 293150144 | Stavex Rivet |
| 30 | 514054274 | Lower Stopper |
| 31 | 514054275 | Bumper |
| 32 | 514054408 | Retaining Strap |
| 33 | 514054409 | Retaining Strap |
| 34 | 514054410 | Retaining Strap |
| 35 | 514054488 | Reflective Sheet |
| 36 | 514054496 | Lower Stopper |
| 37 | 514054606 | Upper Stopper |
| 39 | 514054745 | Reflective Sheet |
| 40 | 514054767 | Exhaust Muffler Support |
| 41 | 514054817 | Heat Shield |
| 45 | 514054967 | LH Deflector |
| 48 | 514054974 | Spring Bracket, 5mm hole |
| 49 | 514054975 | Spring Bracket, 8.0mm hole |
| 53 | 514054987 | Heat Shield (Rectangle) |
| 54 | Not | Available As Spare Part - Non Applicable |
| 55 | 514054989 | FRONT LOWER HALF ENVELOPPE - Call your local BRP dealership |
| 56 | 514054990 | Rear Lower Half Enveloppe |
| 57 | 514054992 | Front Upper Half Enveloppe |
| 58 | 514054993 | Front Lower Half Enveloppe |
| 59 | 514055039 | Rear Upper Half Enveloppe |
| 99 | 514054299 | LH Insulating Wool |
| 99 | 514054711 | RH Insulating Wool |
