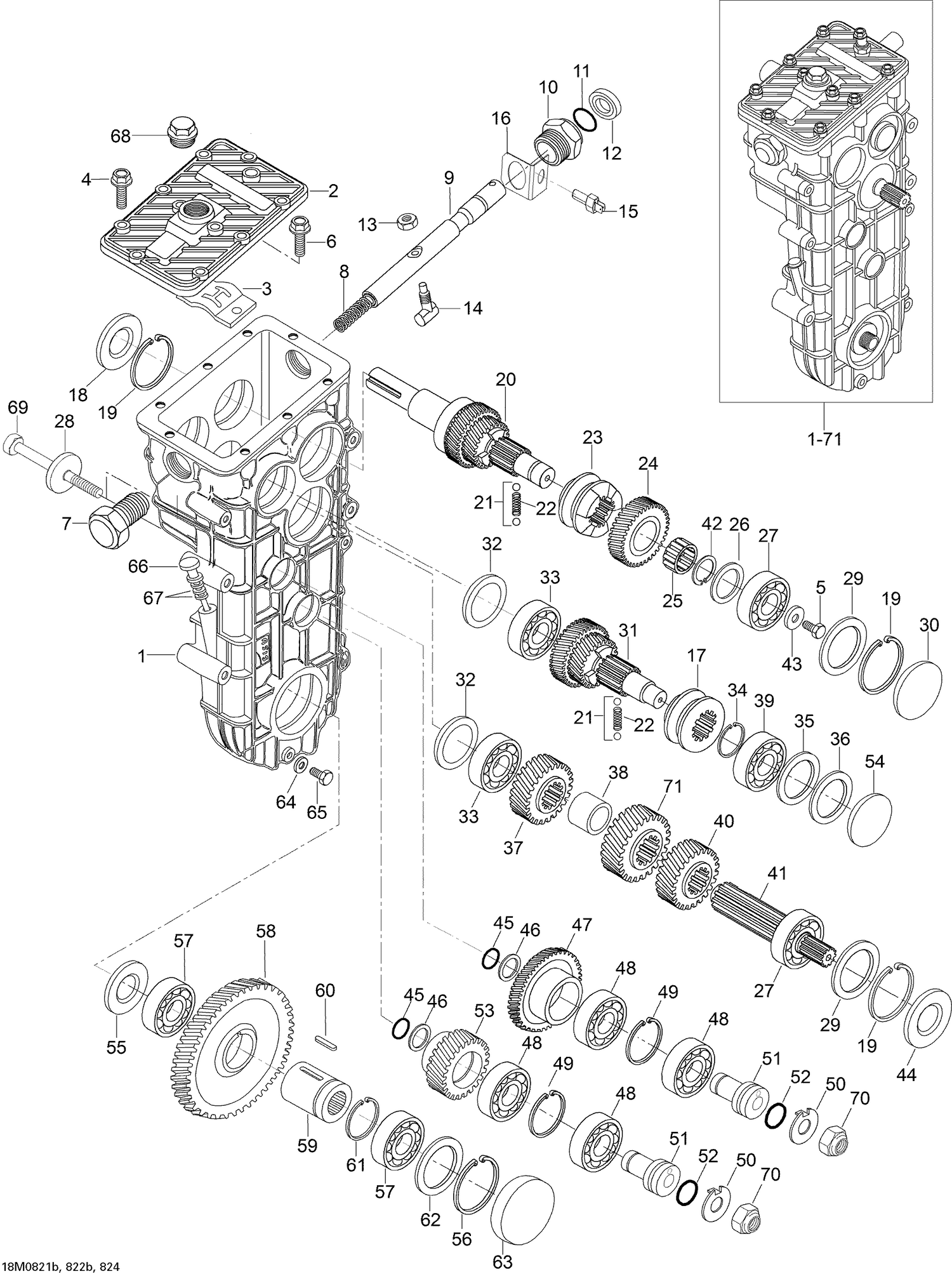

| Ref | Part Number | Description |
|---|
| 1 |
875156138 |
HOUSING - Call your local BRP dealership This part replaces M875156138. |
| 2 |
M875156043 |
COVER - Call your local BRP dealership |
| 3 |
875156111 |
H-SCHEME - Call your local BRP dealership This part replaces M875156111. |
| 4 |
537001402 |
Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402. |
| 5 |
207182044 |
Hex. Screw M8 X 20 |
| 6 |
M40337 |
Hex. Screw |
| 7 |
875156076 |
SLEEVE - Call your local BRP dealership This part replaces M875156076. |
| 8 |
875156078 |
Spring This part replaces M875156078. |
| 9 |
875156072 |
Shaft - Call your local BRP dealership This part replaces M875156072. |
| 10 |
875156077 |
SLEEVE - Call your local BRP dealership This part replaces M875156077. |
| 11 |
614601523 |
O-ring This part replaces M614601523. |
| 12 |
614102031 |
Oil seal - Call your local BRP dealership This part replaces M614102031. |
| 13 |
510611002 |
NUT M10 - Call your local BRP dealership This part replaces M510611002. |
| 14 |
875156073 |
Pin - Call your local BRP dealership This part replaces M875156073. |
| 15 |
654100225 |
Switch - Call your local BRP dealership This part replaces M654100225. |
| 16 |
M875156242 |
BRACKET - Call your local BRP dealership |
| 17 |
875156005 |
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005. |
| 18 |
614103562 |
Oil seal This part replaces M614103562. |
| 19 |
617330062 |
CIRCLIP - Call your local BRP dealership This part replaces M617330062. |
| 20 |
875156063 |
COUNTER SHAFT - Call your local BRP dealership This part replaces M875156063. |
| 21 |
616810064 |
Ball This part replaces M616810064. |
| 22 |
875156105 |
Spring - Call your local BRP dealership This part replaces M875156105. |
| 23 |
875156005 |
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005. |
| 24 |
M875156135 |
Sprocket 29 Th |
| 25 |
611002529 |
Needle bearing This part replaces M611002529. |
| 26 |
M616092542 |
WASHER-AXIAL - Call your local BRP dealership |
| 27 |
610063050 |
BEARING 6305 - Call your local BRP dealership This part replaces M610063050. |
| 28 |
M619230002 |
Washer |
| 29 |
617395065 |
Shim 0,3mm - Call your local BRP dealership This part replaces M617395065. |
| 29 |
617395067 |
Shim 0.5 mm - Call your local BRP dealership This part replaces M617395067. |
| 30 |
614100062 |
PLUG - Call your local BRP dealership This part replaces M614100062. |
| 31 |
875156068 |
Shaft - Call your local BRP dealership This part replaces M875156068. |
| 32 |
875152953 |
Plug This part replaces M875152953. |
| 33 |
610063044 |
BEARING 6304 - Call your local BRP dealership This part replaces M610063044. |
| 34 |
617450028 |
CIRCLIP - Call your local BRP dealership This part replaces M617450028. |
| 35 |
617394352 |
Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352. |
| 35 |
M617394252 |
Shim |
| 36 |
31002 |
Retaining Ring (1=10Pcs) This part replaces M31002. |
| 37 |
875156054 |
Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054. |
| 38 |
M875156088 |
SLEEVE - Call your local BRP dealership |
| 39 |
6304 |
Bearing - Call your local BRP dealership This part replaces M6304. |
| 40 |
M875156136 |
Sprocket 27 Th |
| 41 |
875156069 |
SHAFT - Call your local BRP dealership This part replaces M875156069. |
| 42 |
617450025 |
CIRCLIP - Call your local BRP dealership This part replaces M617450025. |
| 43 |
M875156112 |
WASHER - Call your local BRP dealership |
| 44 |
614102562 |
Oil seal This part replaces M614102562. |
| 45 |
614601224 |
O-RING - Call your local BRP dealership This part replaces M614601224. |
| 46 |
875156328 |
Washer - Call your local BRP dealership This part replaces M875156328. |
| 47 |
M875156206 |
Sprocket 28Th |
| 48 |
612030303 |
BEARING - Call your local BRP dealership This part replaces M612030303. |
| 49 |
617330047 |
Circlip - Call your local BRP dealership This part replaces M617330047. |
| 50 |
875156327 |
Washer - Call your local BRP dealership This part replaces M875156327. |
| 51 |
M619230001 |
Shaft |
| 52 |
614602431 |
O-ring This part replaces M614602431. |
| 53 |
M875156156 |
Sprocket 31 Th |
| 54 |
614100052 |
Plug This part replaces M614100052. |
| 55 |
614102852 |
Oil seal This part replaces M614102852. |
| 56 |
617330068 |
Snapring - Call your local BRP dealership This part replaces M617330068. |
| 57 |
6008 |
Bearing - Call your local BRP dealership This part replaces M6008. |
| 58 |
M875156114 |
Sprocket 53 Th |
| 59 |
M875156218 |
SHAFT - Call your local BRP dealership |
| 60 |
M603345080 |
KEY - Call your local BRP dealership |
| 61 |
M617300040 |
CIRCLIP - Call your local BRP dealership |
| 62 |
617395568 |
ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568. |
| 63 |
614100068 |
Plug - Call your local BRP dealership This part replaces M614100068. |
| 64 |
615580812 |
Gasket-ring - Call your local BRP dealership This part replaces M615580812. |
| 65 |
528801342 |
HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342. |
| 66 |
875156278 |
DIPSTICK - Call your local BRP dealership This part replaces M875156278. |
| 67 |
614600725 |
O-ring - Call your local BRP dealership This part replaces M614600725. |
| 68 |
875156098 |
Oilplug - Call your local BRP dealership This part replaces M875156098. |
| 69 |
M529801502 |
Vis M8X75 *Screw M8X75 |
| 70 |
510600802 |
NUT M10 - Call your local BRP dealership This part replaces M510600802. |
