Parts Catalog

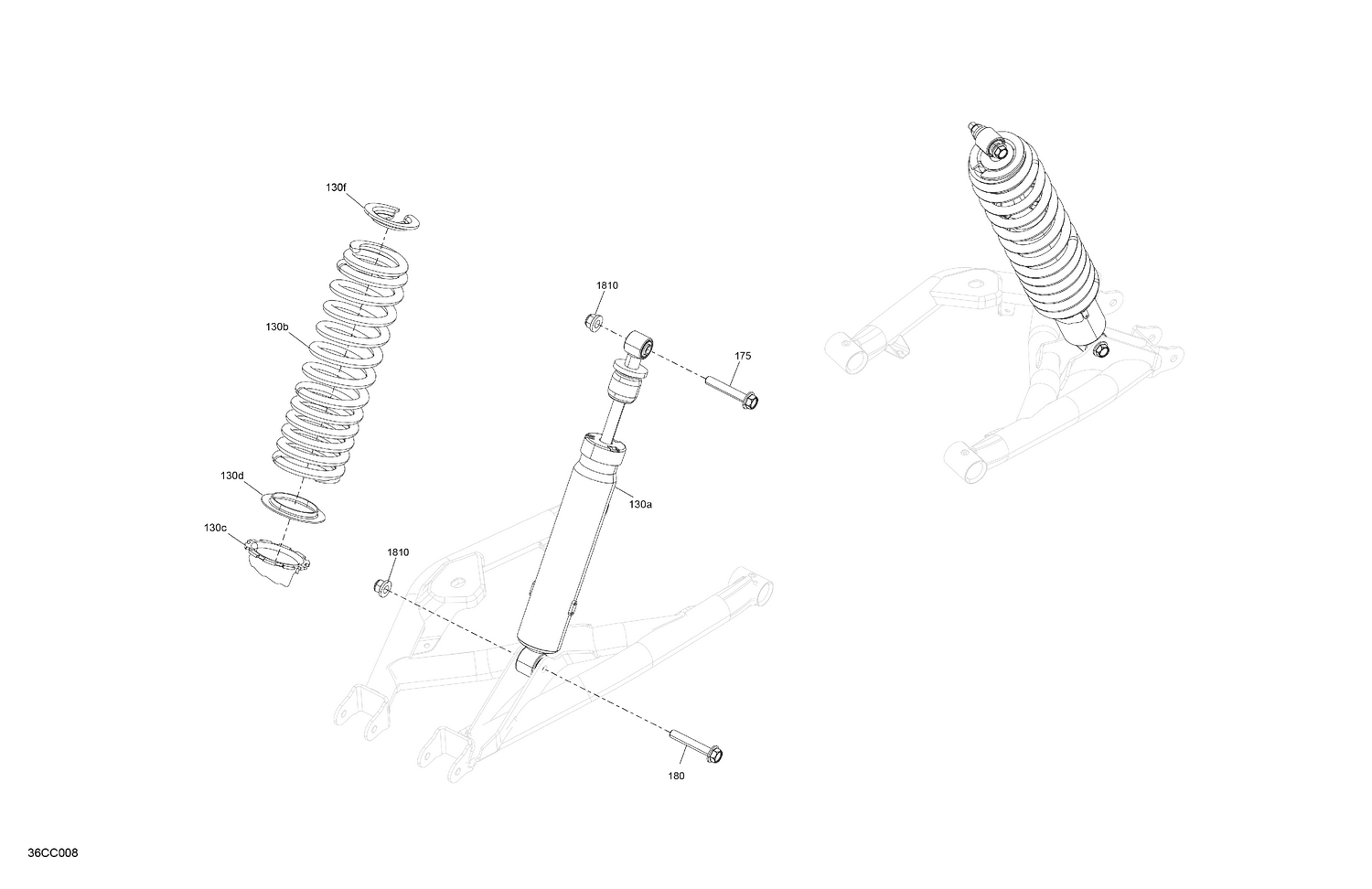

05- Suspension - Rear Shocks

Parts (7)

Ref	Part Number	Description
130a	706003519	Rear Shock Absorber
130b	706005041	Magma Red, Compression Spring
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130f	706001894	Spring Cup
175	207606046	Hex. Flange Screw M10 X 6
180	207606046	Hex. Flange Screw M10 X 6
