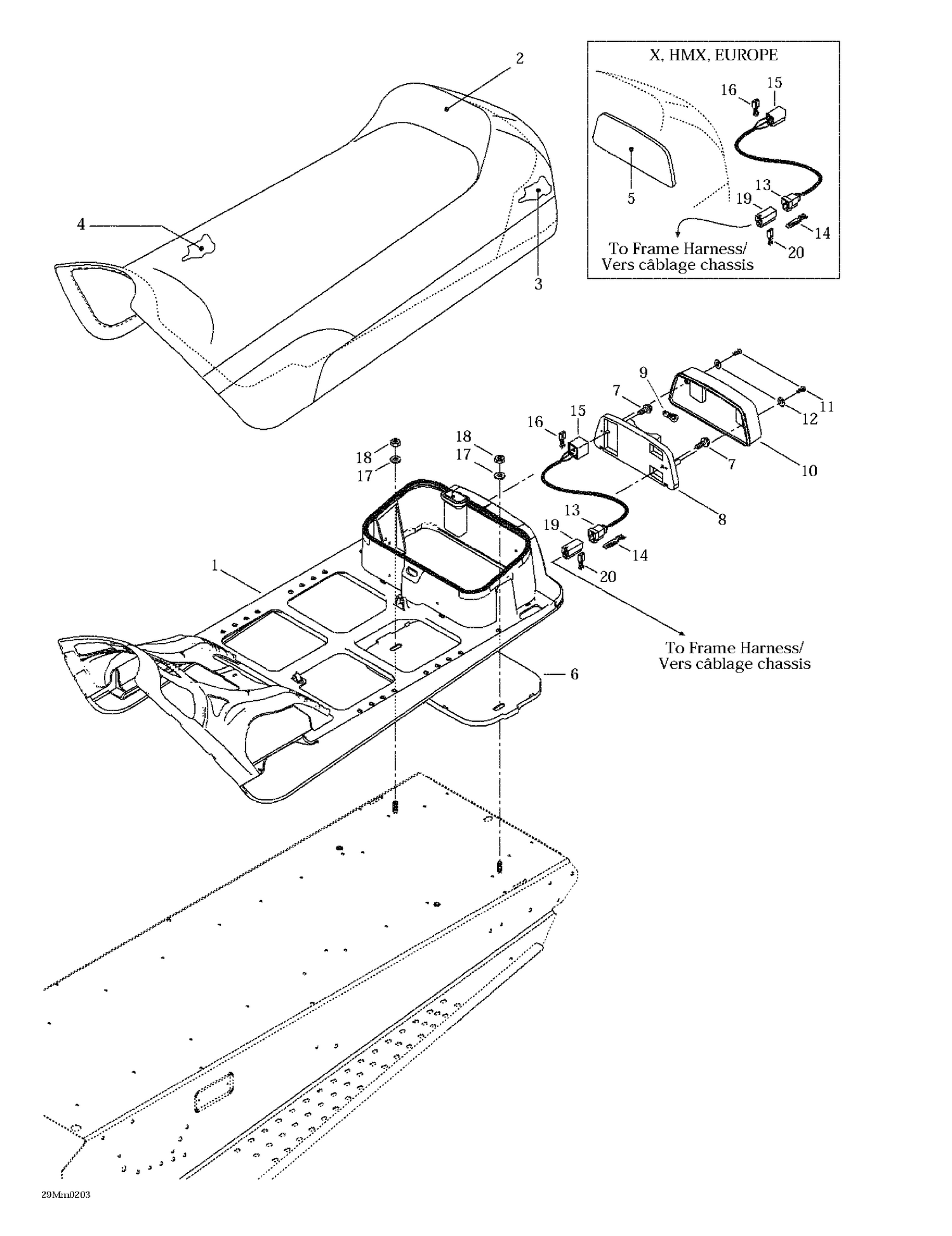

| Ref | Part Number | Description |
|---|
| 1 |
510003949 |
Seat Base (X) |
| 2 |
510003947 |
Seat Cover |
| 3 |
510003945 |
Rear Seat Foam |
| 4 |
510003948 |
Seat Foam (X) |
| 6 |
572107601 |
UNDER CHEST - Call your local BRP dealership |
| 7 |
732603006 |
Hex. Screw #10 X 1" |
| 8 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 9 |
520000758 |
Bulb This part replaces 410504100. |
| 10 |
414513700 |
Lens |
| 11 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 12 |
414516400 |
Washer - Call your local BRP dealership |
| 13 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 14 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 15 |
515175250 |
Female Terminal Housing, 3 Circuits |
| 16 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| 17 |
234082410 |
Flat Washer 8 mm |
| 18 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 19 |
409204300 |
Female Housing |
