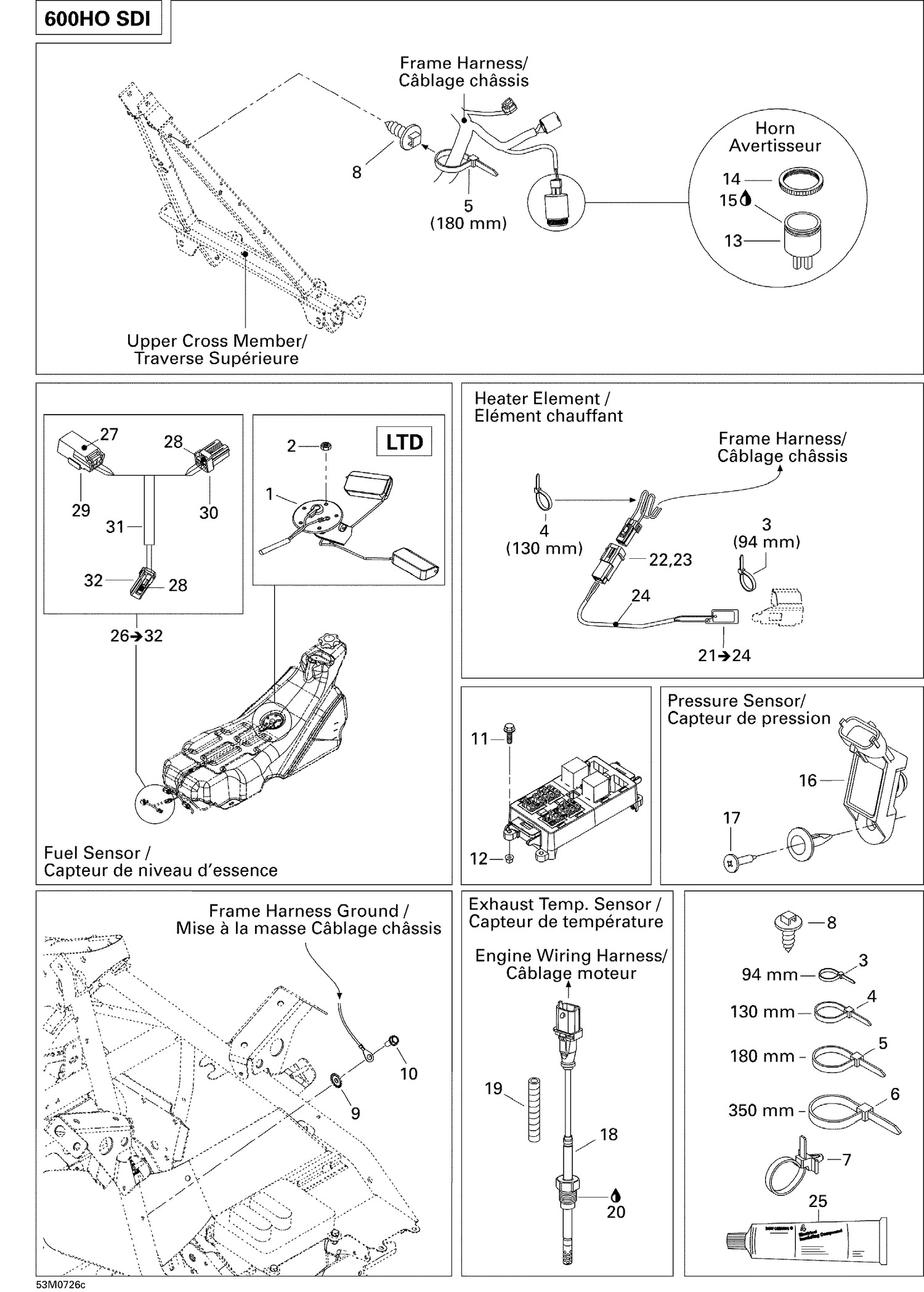

| Ref | Part Number | Description |
|---|
| 1 |
515176213 |
FUEL LEVEL SENSOR - Call your local BRP dealership |
| 2 |
232551414 |
Elastic Stop Nut M5 |
| 3 |
293750001 |
Tie Wrap 94 mm |
| 4 |
293750002 |
Tie Wrap 142 mm |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
293750008 |
Tie Wrap 368 mm |
| 7 |
293750009 |
Tie-Rap 173 mm |
| 8 |
293730040 |
Mount Dart This part replaces 293730018. |
| 9 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 10 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 12 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 13 |
515176035 |
HORN - Call your local BRP dealership |
| 14 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 15 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 16 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 17 |
414745900 |
Tuflock Phillips Plastic Screw |
| 18 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 19 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 20 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 22 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 23 |
515175232 |
Male Terminal |
| 24 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 25 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 27 |
515175232 |
Male Terminal |
| 28 |
515175231 |
Female Terminal |
| 29 |
515175494 |
Male Housing, 3 Circuits |
| 30 |
515175495 |
Female Housing, 3 Circuits |
| 31 |
219704425 |
Tubing 6 Mm 3000Mm Long |
