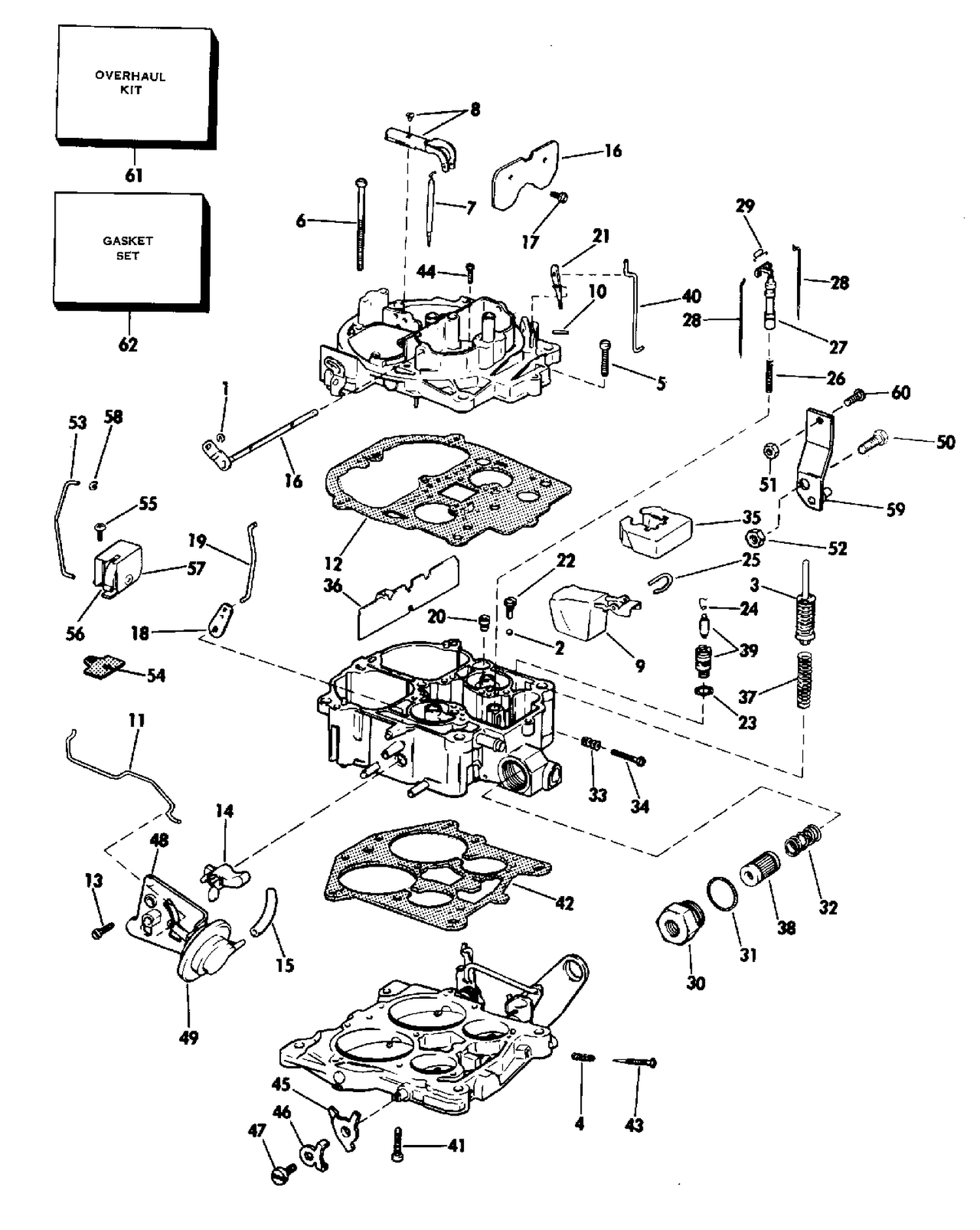

| Ref | Part Number | Description |
|---|
| 3 |
PUMP |
ASSY |
| 4 |
0910181 |
SPRING, Idle needle |
| 5 |
0314521 |
SCREW, Air horn |
| 6 |
0314560 |
SCREW, Air horn |
| 7 |
0910332 |
METERING ROD, Secondary |
| 8 |
0911652 |
HOLDER KIT, Secondary metering rod This part replaces 0910331. |
| 9 |
0983871 |
FLOAT & INSERT ASSY. This part replaces 0383087. |
| 10 |
ROLL |
PIN,Pump Ivr hinge |
| 11 |
0314527 |
ROD VACUUM BREAK |
| 13 |
0314529 |
SCREW, Control attaching |
| 14 |
0091014 |
CAM,Fast idle |
| 15 |
0314531 |
HOSE, Vacuum |
| 16 |
0383391 |
CHOKE SHAFT & LEVER KIT |
| 17 |
0314533 |
SCREW, Choke valve |
| 18 |
0314534 |
LEVER, Intermediate choke |
| 19 |
0314535 |
ROD, Choke |
| 20 |
JET,Primary |
Ref: 21 0908961 LEVER, Pump actuating 0908961 |
| 22 |
0314538 |
RETAINER, Pump discharge ball |
| 24 |
PULL |
CLIP,Float needle |
| 25 |
0314541 |
HINGE PIN, Float assembly |
| 26 |
0983868 |
POWER PISTON ASSY This part replaces 0910140. |
| 27 |
0983868 |
POWER PISTON ASSY This part replaces 0980912. |
| 28 |
METERING |
ROD,Primary |
| 29 |
0983868 |
POWER PISTON ASSY This part replaces 0908965. |
| 32 |
0314548 |
SPRING, Fuel filter |
| 33 |
0314549 |
INSERT, Float bowl |
| 34 |
0314550 |
SCREW, Idle sotp |
| 35 |
0314551 |
INSERT, Float bowl |
| 36 |
0314552 |
BAFFLE, Float bowl |
| 38 |
0983870 |
FILTER, Fuel inlet This part replaces 0910139. |
| 40 |
0314556 |
PUMP ROD |
| 41 |
0316307 |
SCREW, Air horn, short |
| 43 |
IDLE |
NEEDLE SET |
| 44 |
0314522 |
SCREW, Air horn |
| 45 |
0314561 |
CAM LEVER |
| 46 |
0314562 |
LEVER, Fast idle |
| 47 |
0314563 |
SCREW IDLE LEVER |
| 48 |
0981788 |
BACKET ASSEMBLY VACUUM BREAK CONTROL |
| 49 |
0981789 |
VACUUM BREAK ASSY |
| 50 |
0310859 |
BOLT, Throttle lever to carb |
| 51 |
0311502 |
LOCKNUT, Lever screw |
| 52 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 53 |
3998966 |
CHOKE, Rod |
| 54 |
0909793 |
ISOLATER, Automatic choke |
| 55 |
0273513 |
SCREW, Choke |
| 56 |
0326079 |
THERM ASSY, Choke |
| 57 |
3998944 |
COVER, Bi-metal choke |
| 58 |
3989067 |
CLIP, Bi-metal choke |
| 59 |
0382822 |
THROTTLE LEVER & PIN |
| 60 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 61 |
0983864 |
CARB. REPAIR KIT This part replaces 0983075. |
| 0314564 |
0314564 |
AIR VALVE SPRING & CAM KIT |
| 0982223 |
0982223 |
CARBURETOR ASSY |
