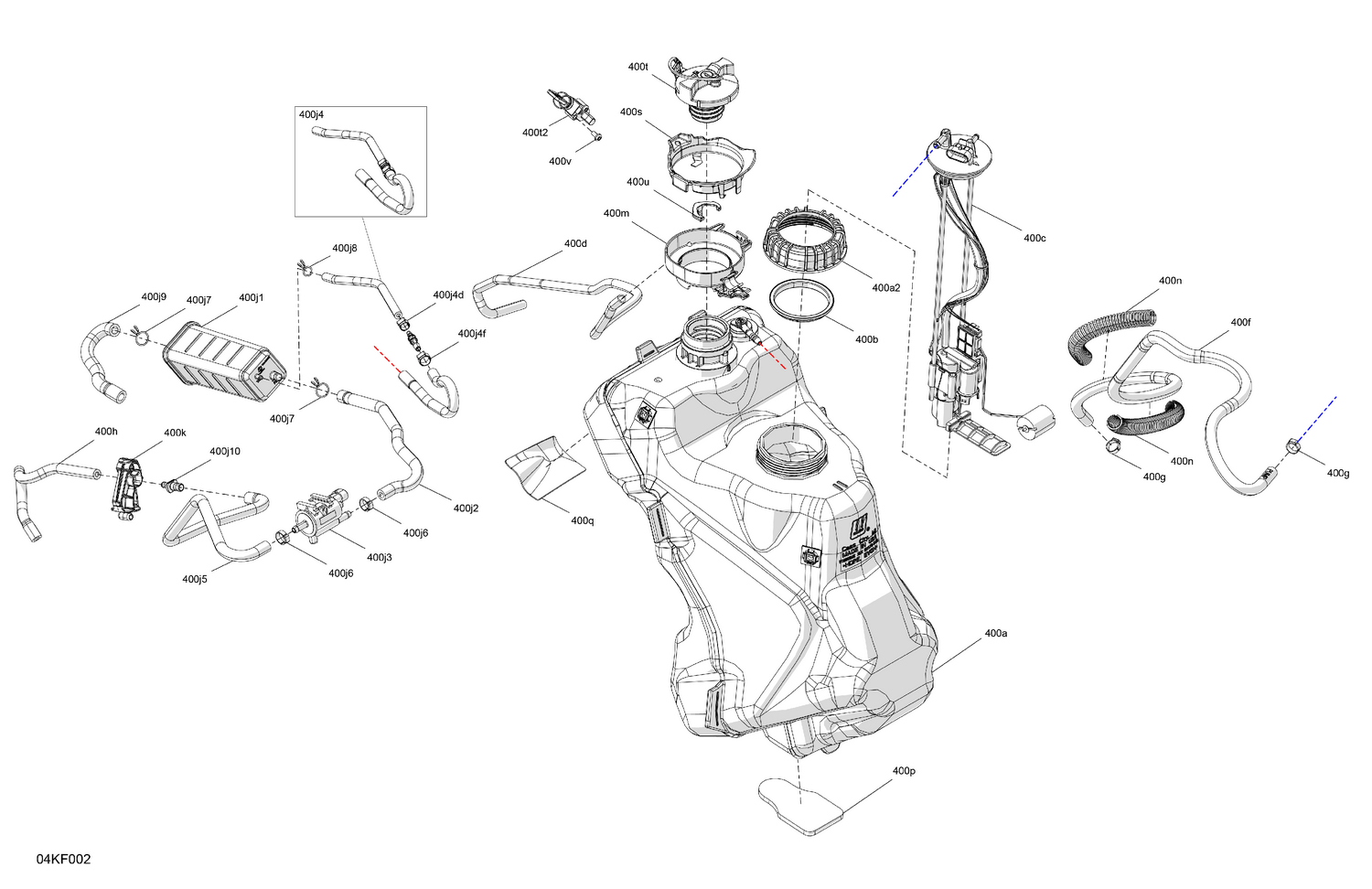

02- Engine - Fuel
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 400a2 | 709000328 | Fuel Pump Module Nut |
| 400b | 709000208 | Seal |
| 400d | 219704391 | Polyurethane Hose 1000mm Long |
| 400f | 709001579 | Hose |
| 400g | 293650047 | Crimp Clamp, 15.3-706R |
| 400h | 709001580 | Hose |
| 400j1 | 709001217 | Vapor Canister |
| 400j10 | 293710213 | Flow Restrictor Pipe Fitting |
| 400j2 | 709001582 | Charcoal Canister Hose |
| 400j3 | 709000991 | Bleed Selenoid Valve |
| 400j4d | 293650044 | Oetiker Clamp |
| 400j4f | 293650025 | Oetiker Gear Clamp |
| 400j5 | 709001583 | Charcoal Canister Hose |
| 400j6 | 293650047 | Crimp Clamp, 15.3-706R |
| 400j7 | 293650294 | Hose Clamp 15.5mm-17.5mm (Spring Type) |
| 400j8 | 293650295 | Hose Clamp 9.8mm-11.5mm (Spring Type) |
| 400j9 | 709000959 | Hose Fuel Vapor |
| 400k | 709001408 | Hose Support |
| 400m | 709001275 | Anchorage Support |
| 400n | 219704408 | Tubing 16 Mm 1000Mm Long |
| 400p | 709001087 | Rubber Pad |
| 400q | 709001115 | Tank Protector |
| 400s | 709001202 | Trim |
| 400t | 219401313 | Upper Latch Kit |
| 400t2 | 707000666 | Padlock with Key |
| 400u | 709001263 | Deflector |
