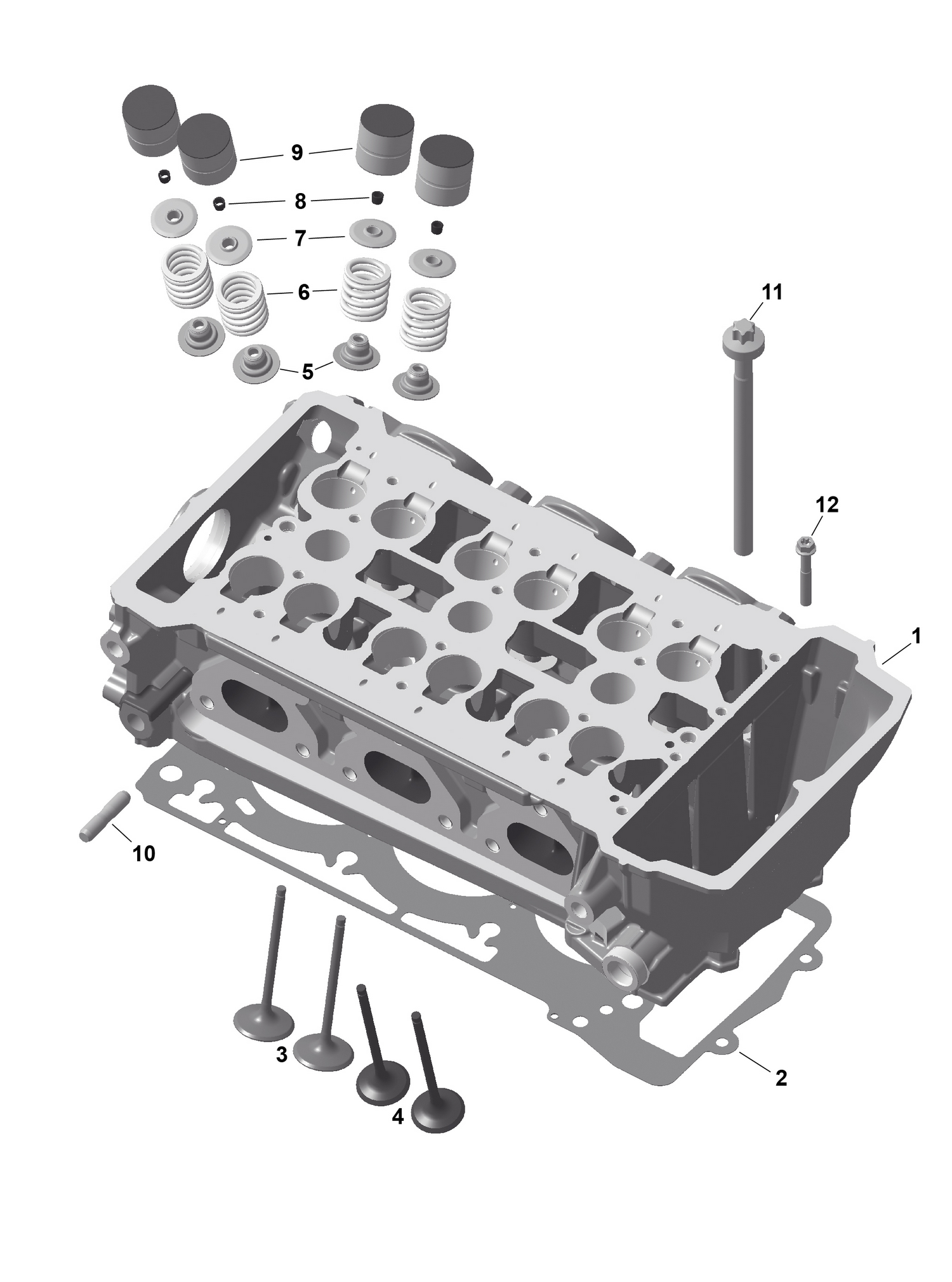

01- ROTAX - Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420623976 | Cylinder Head |
| 2 | 420431951 | Cylinder Head Gasket |
| 3 | 420253212 | Intake Valve 32 mm This part replaces 420253211. |
| 4 | 420253222 | Exhaust Valve 28.5 mm This part replaces 420253221. |
| 5 | 420431671 | Valve Stem Seal |
| 6 | 420939540 | Valve Spring |
| 7 | 420855150 | Valve Spring Retainer |
| 8 | 420254630 | Cotter Valve |
| 9 | 420855165 | Valve Lifter Bucket |
| 10 | 420840718 | Stud |
| 11 | 420441285 | Torx Flange Screw M10 X 150 |
